DGS-3312SR Stackable Gigabit Layer 3 Switch
to the Configuration folder and select IGMP Snooping. Configuration
and other information concerning IGMP snooping may be found in Section
6 of this manual under IGMP Snooping.
NOTE: To configure IGMP snooping for the xStack family of switches, go
IGMP Snooping Forwarding
This window will display the cu igured on the Switch. To view
the following screen, open the Monitoring folder and click the IGMP Snooping Forwarding link.
rrent IGMP snooping forwarding table entries currently conf

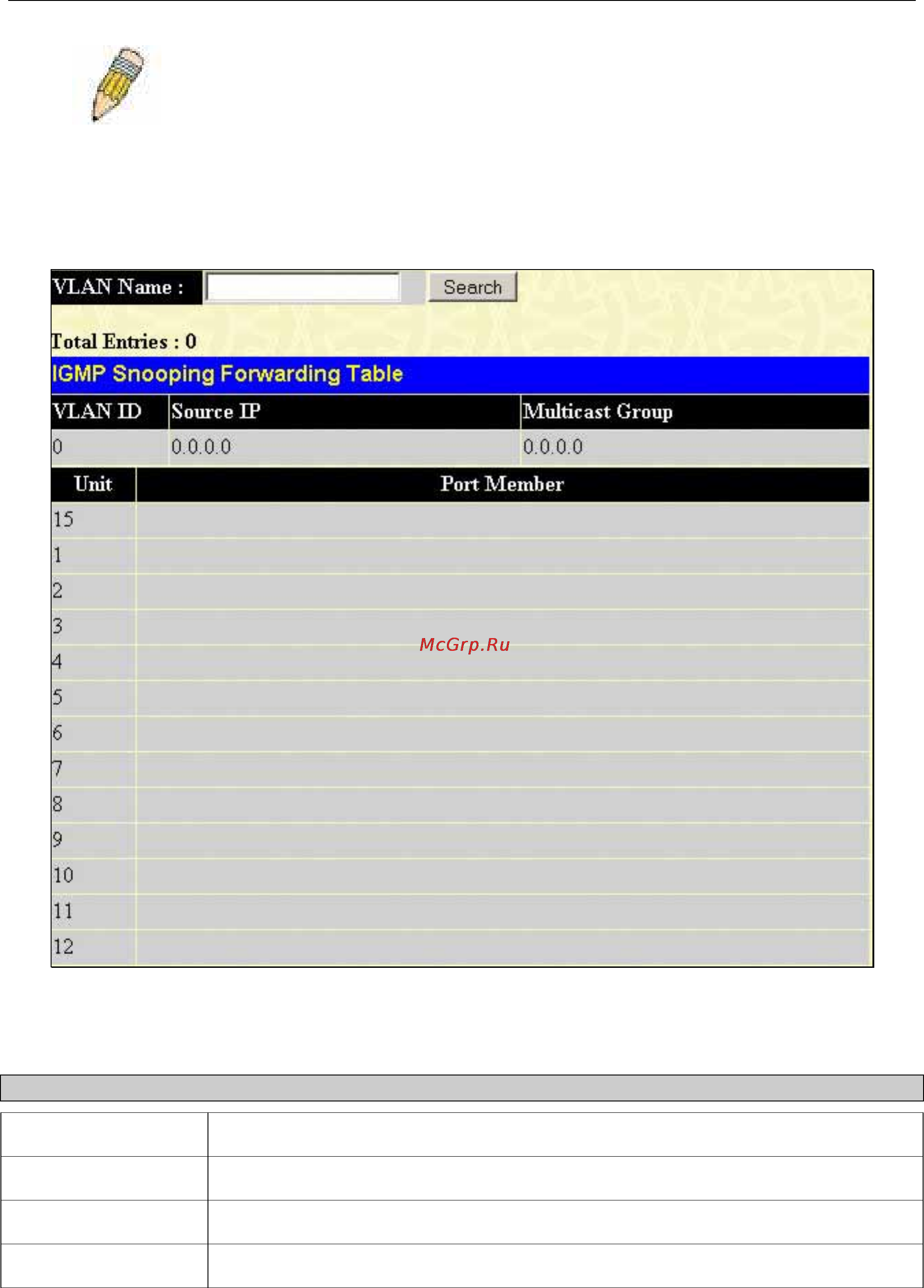

Figure 8- 21. IGMP Snooping Forwarding Table
The user may search the IGMP Snooping Forwarding Table by VLAN Name using the top left hand corner Search.
The following field can be viewed:
Parameter Description
VLAN Name
The VLAN Name of the multicast group.
Source IP
The Source IP address of the multicast group.
Multicast Group
The IP address of the multicast group.
Port Map
These are the ports where the IP multicast packets are being forwarded to.
231
