DGS-3312SR Stackable Gigabit Layer 3 Switch
Menu Bar
The Single IP Management window contains a menu bar for device configurations, as seen below.

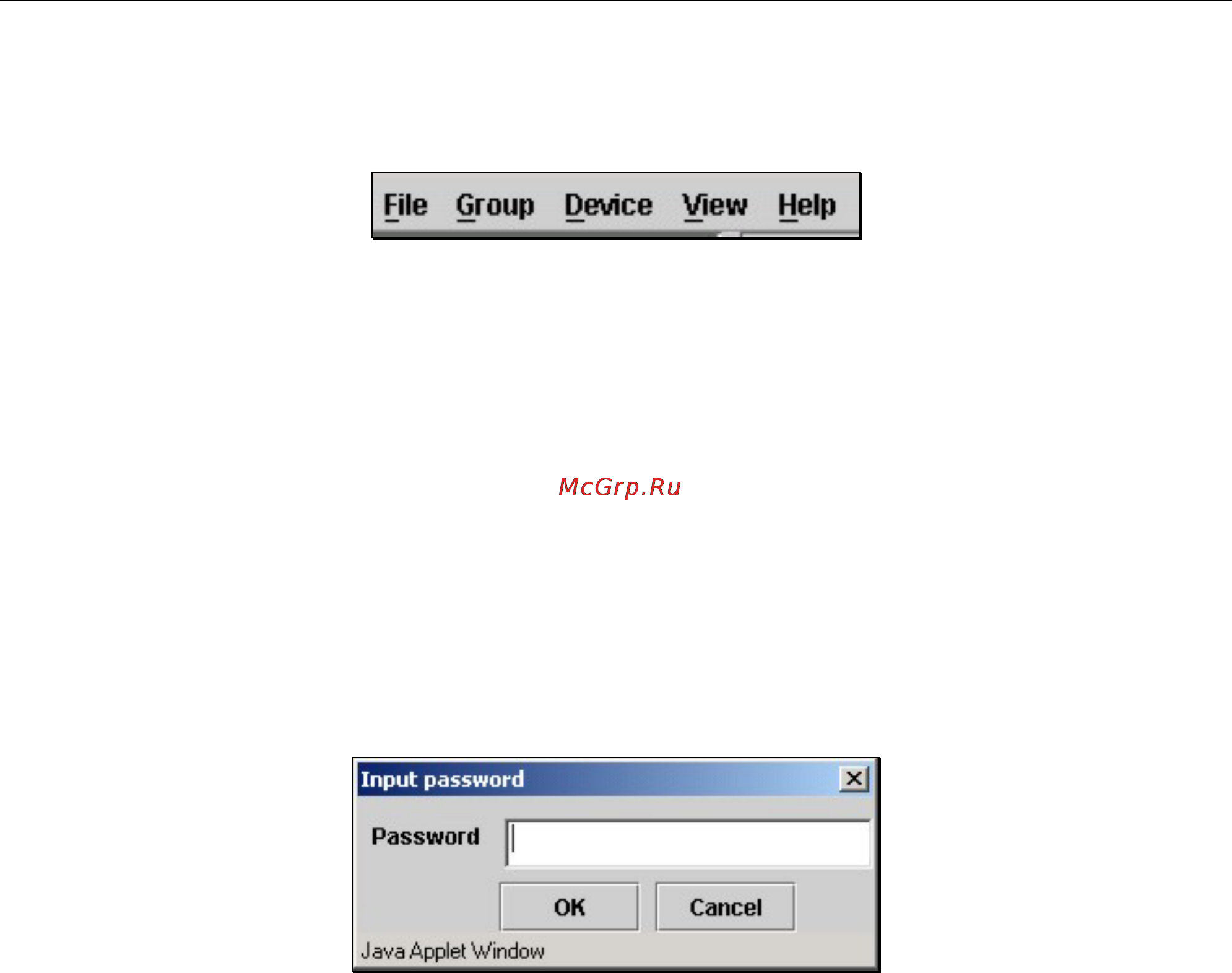

Figure 10- 17. Menu Bar of the Topology View
The five menus on the menu bar are as follows.
File
• Print Setup - will view the image to be printed.
• Print Topology - will print the topology map.
• Preference - will set display properties, such as polling interval, and the views to open at SIM startup.
Group
• Add to group - add a candidate to a group. Clicking this option will reveal the following screen for the user to
enter a password for authentication from the Candidate Switch before being added to the SIM group. Click OK
to enter the password or Cancel to exit the window.
Figure 10- 18. Input Password window
• Remove from Group - remove an MS from the group.
evice
• Configure - will open the web manager for the specific device.
iew
• Refresh - update the views with the latest status.
• Topology - display the Topology view.
elp
• About - Will display the SIM information, including the current SIM version.
D
V
H
