VRRP
Virtual Routing Redundancy Protocol (VRRP) is a function on the Switch that dynamically assigns responsibility for a
virtual router to one of the VRRP routers on a LAN. The VRRP router that controls the IP address associated with a virtual
alled the Master, and will forward packets sent to this IP address. This will allow any Virtual Router IP address
N to be used as the default first hop router by end hosts. Utilizing VRRP, the administrator can achieve a higher
routers on
his protocol to function optimally.
To enable VRRP globally on the Switch, click Configuration > Layer 3 IP Networking > VRRP > VRRP
router is c
on the LA
available default path cost without needing to configure every end host for dynamic routing or routing discovery protocols.
Statically configured default routes on the LAN are prone to a single point of failure. VRRP is designed to eliminate these
failures by setting an election protocol that will assign a responsibility for a virtual router to one of the VRRP
the LAN. When a virtual router fails, the election protocol will select a virtual router with the highest priority to be the
Master router on the LAN. This retains the link and the connection is kept alive, regardless of the point of failure.
To configure VRRP for virtual routers on the Switch, an IP interface must be present on the system and it must be a part of
a VLAN. VRRP IP interfaces may be assigned to every VLAN, and therefore IP interface, on the Switch. VRRP routers
within the same VRRP group must be consistent in configuration settings for t
VRRP Configuration
Configuration:

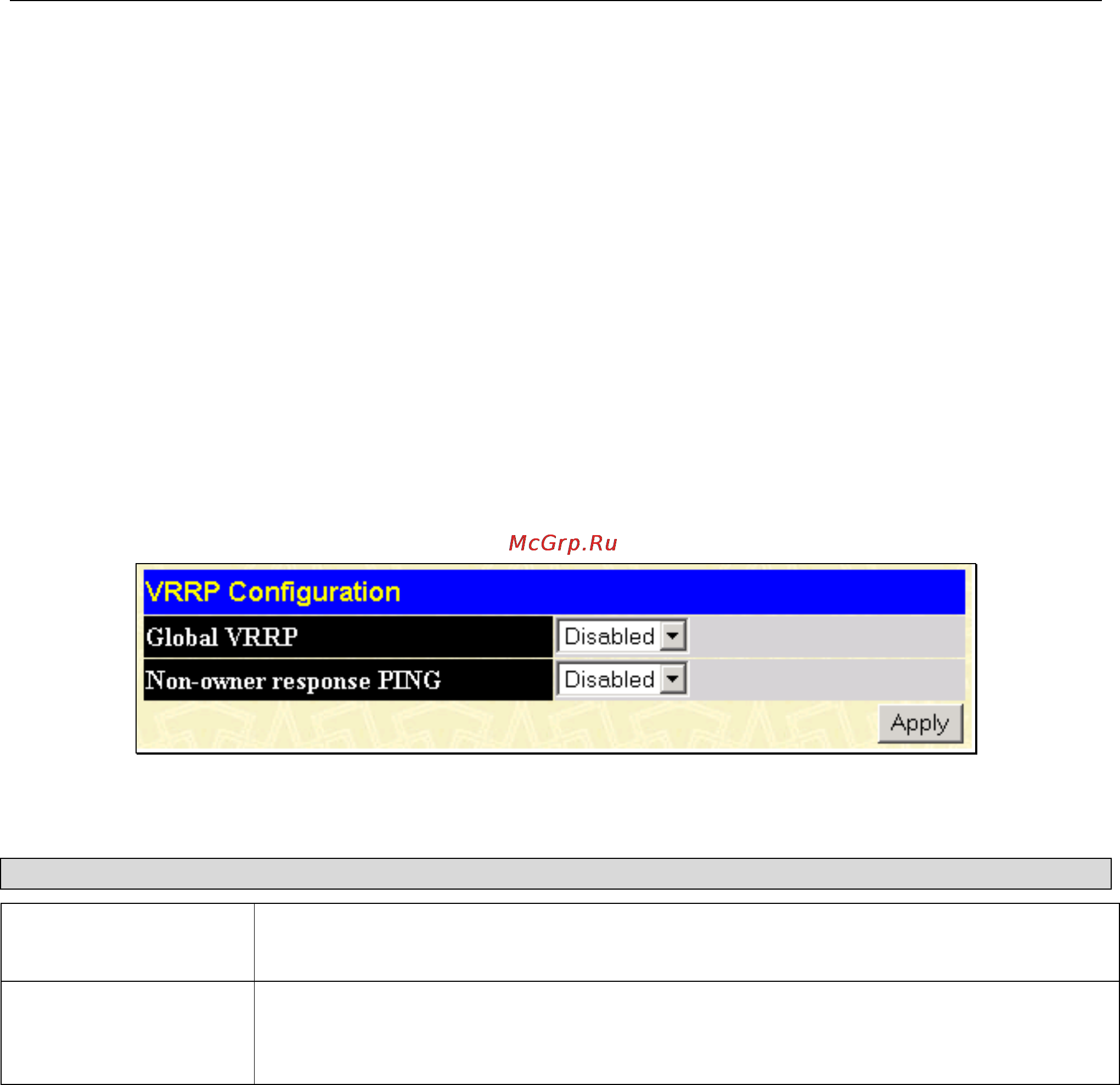

Figure 5- 45. VRRP Configuration window
The following fields can be set:
Parameter Description
Global VRR
e pull-down menu to enable or disable VRRP globally on the Switch. The
t is Disabled.
P
Use th
defaul
Non-owner ns
PING
P address to be PINGed from other host
G connectivity check
respo e
Enabling this parameter will allow the virtual I
end nodes to verify connectivity. This will only enable the PIN
function. This command is Disabled by default.
Click Apply emto impl ent changes made.
