DGS-3312SR Stackable Gigabit Layer 3 Switch
Port Description
The Switch supports a port description feature where the user may name various ports on the Switch. To assign names or
descriptions to various ports, click Port Description on the Configuration folder:

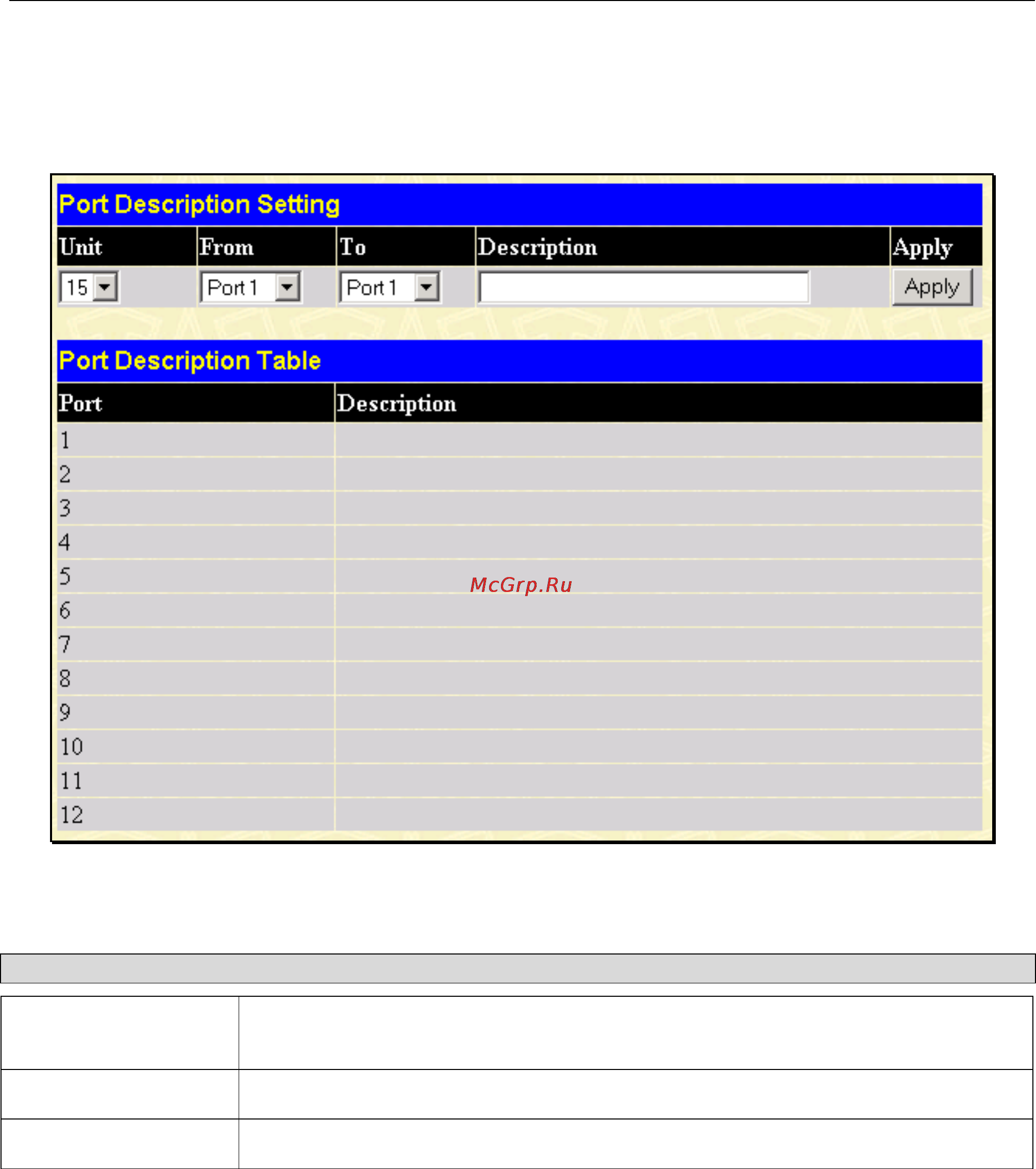

Figure 4- 5. Port Description Setting window
The user may set the following parameters:
Parameter Description
Unit
This is the Unit ID of a Switch in a Switch stack. The number 15 indicates a DGS-
3312SR Switch in standalone mode.
From/To
A consecutive group of ports may be configured starting with the selected port.
Description
Enter a description of the port or ports.
Click Apply to implement changes made.
46
