Static/Default Route Settings
sly configured appear in the Static/Default Route Settings table. To add a new route,
ow appears. To remove an existing route, click the X button in the Delete column for
Static routes that have been previou
click on the Add button, a new wind
the route you want to eliminate. To modify an existing entry, click the Modify button in the Static/Default Route Settings
window, which will bring up the identical window as the Add window.

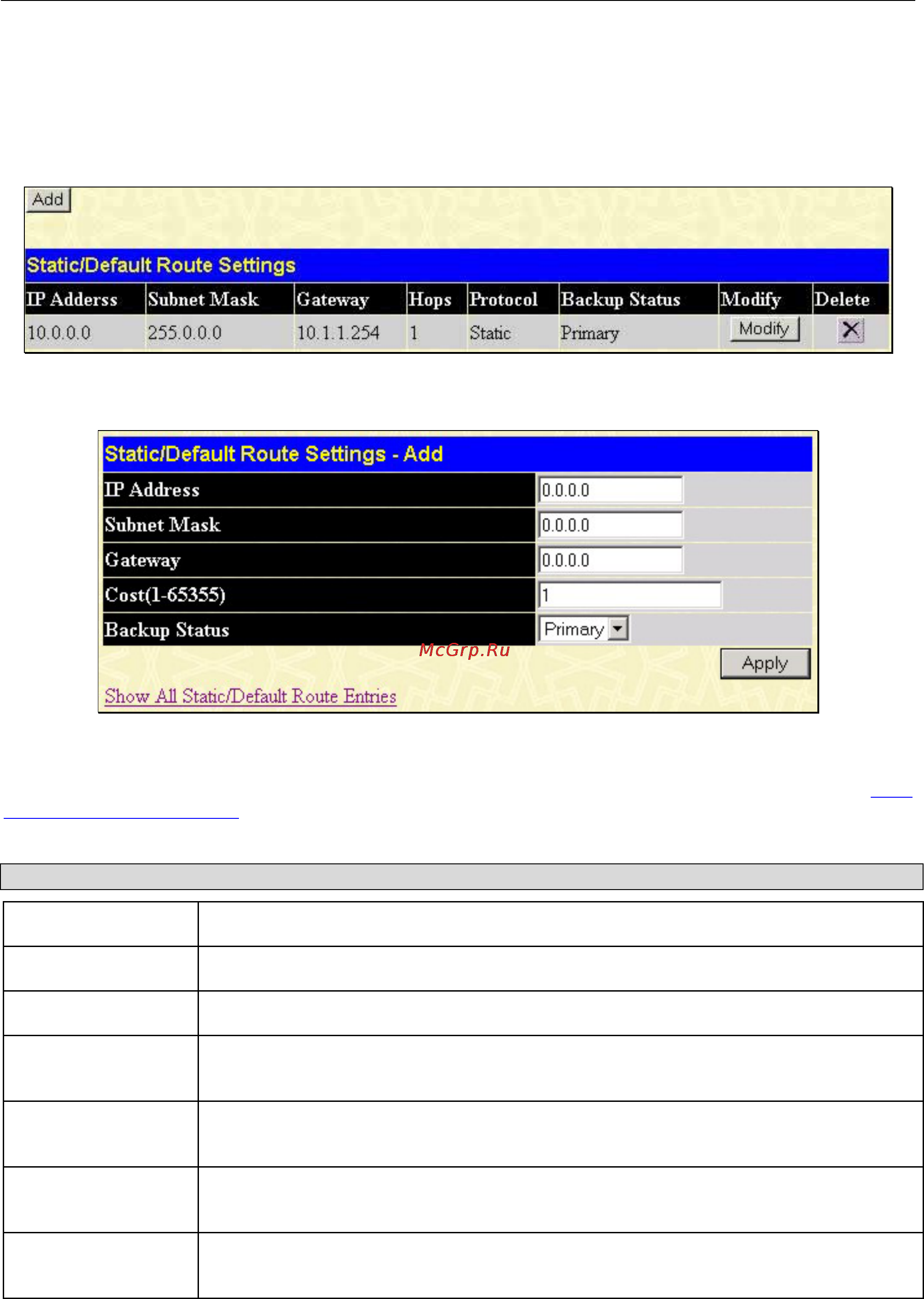

Figure 5- 8. Static/Default Route Settings window
Use the Static/Default Route Settings – Add window to configure IP settings and Metric cost for the new route.
Figure 5- 9. Static/Default Route Settings – Add window
IP settings for the new static route and click the Apply button to create the static route. The new route will
ious window. To view the new route and any other static routes configured for the Switch click the
Configure the
appear in the prev
Show
All Static/Default Route Entries link.
The following fields can be set or viewed for windows of the Static/Default route Settings section:
Parameter Description
IP Address
The IP address of the Static/Default Route.
Subnet Mask
The corresponding Subnet Mask of the IP address entered into the table.
Gateway
The corresponding Gateway of the IP address entered into the table.
Hops/Cost
Represents the metric value of the IP interface entered into the table. This field may
read a number between 1-65535 for an OSPF setting, and 1-16 for a RIP setting.
Protocol
Represents the protocol used for the Routing Table entry of the IP interface. This field
may read OSPF, RIP, Static or Local.
Backup State
Represents the Backup state that this IP interface is configured for. This field may read
Primary or Backup.
Delete
Click the X if you would like to delete this entry from the Static/Default Route Settings
table.
126
