DGS-3312SR Stackable Gigabit Layer 3 Switch

Authentication Server Host

e following window, click Security > Access Authentication Control > Authentication Server Host:

This window will set user-defined Authentication Server Hosts for the RADIUS, TACACS, TACACS+, and XTACACS

security protocols on the Switch. When a user attempts to access the Switch with Authentication Policy enabled, the

Switch will send authentication packets to a remote RADIUS/TACACS/XTACACS/TACACS+ server host on a remote

host. The RADIUS/TACACS/TACACS+/XTACACS server host will then verify or deny the request and return the

appropriate message to the Switch. More than one authentication protocol can be run on the same physical server host but,

remember that RADIUS/TACACS/TACACS+/XTACACS are separate entities and are not compatible with each other.

The maximum supported number of server hosts is 16.

To view th

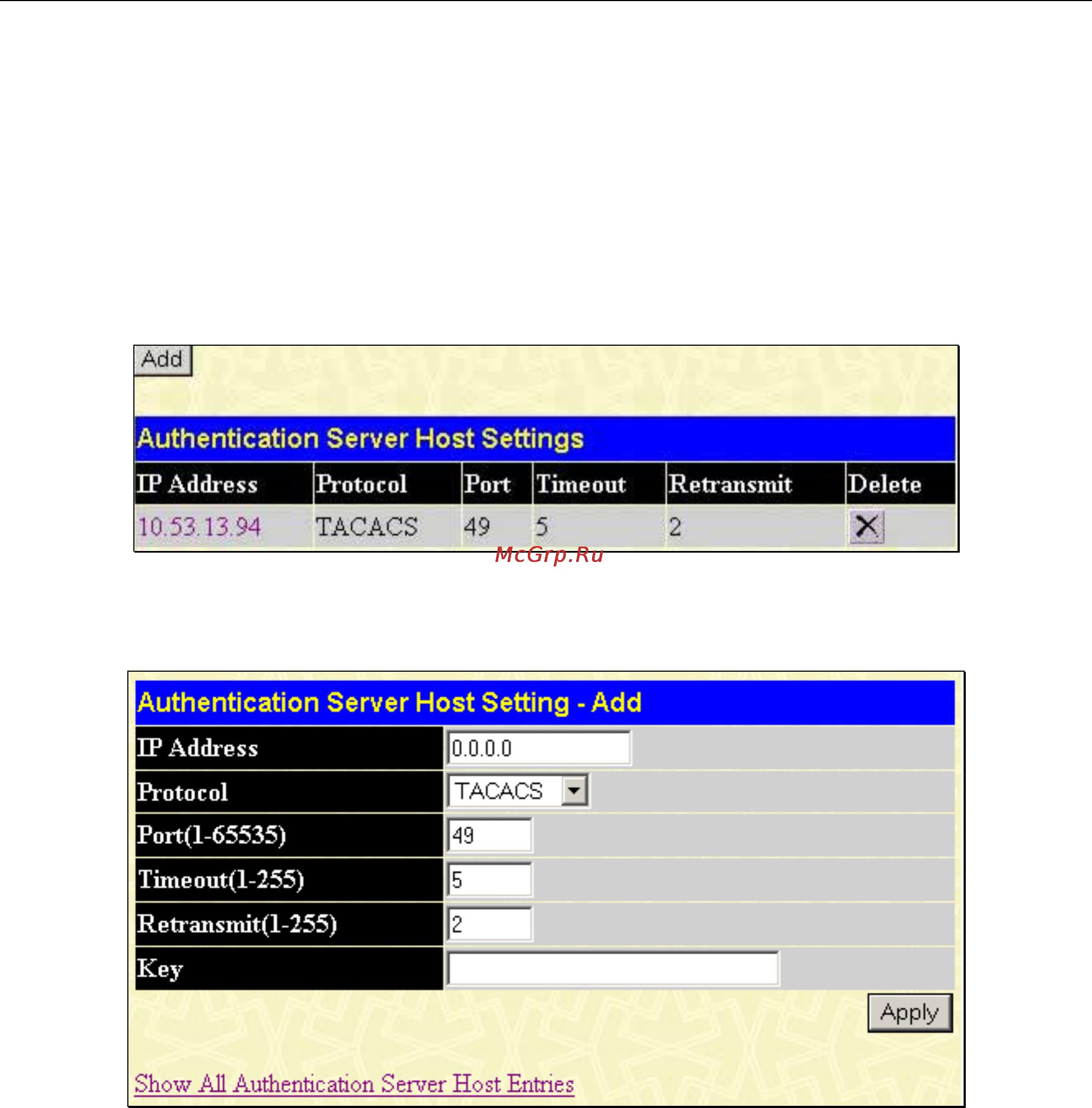

Figure 6- 12. Authentication Server Host Settings window

To add an Authentication Server Host, click the Add button, revealing the following window:

Figure 6- 13. Authentication Server Host Setting – Add window

The user may also modify an existing Authentication Server Host by clicking the Hyperlinked IP Address in the

Authentication Server Host Settings window (Figure 6-12), which will display a similar window, as shown below.

190
