DGS-3312SR Stackable Gigabit Layer 3 Switch
PAE System Control
To set the port authenticating settings, open the Port Access Entity folder, and then the PAE System Control folder.
Finally, click on the 802.1X Capability Settings link.
802.1X Capability Settings
The following window will allow the user to set the Capability settings for the Switch on a per port basis. This window can
be viewed by clicking Configuration > Port Access Entity > PAE System Control > 802.1x Capability Settings.
gs window
ur changes take effect.

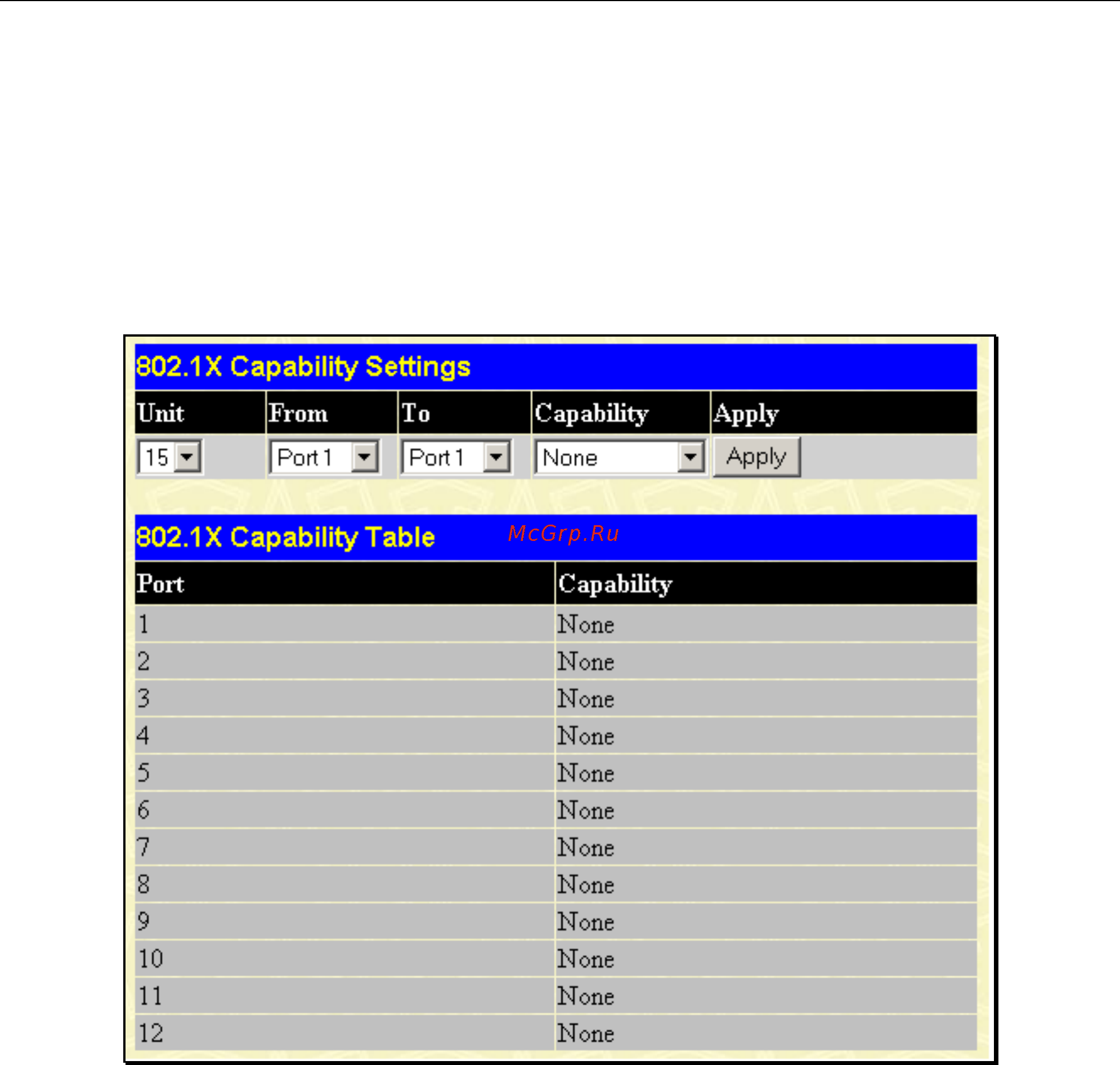

Figure 4- 22. 802.1X Capability Settin
To set up the Switch’s 802.1X port-based authentication, select which ports are to be configured in the From and To fields.
Next, enable the ports by selecting Authenticator from the drop-down menu under Capability.
Click Apply to make yo
60
