DGS-3312SR Stackable Gigabit Layer 3 Switch

SNMP User Table Display

To display the detailed entry for a given user, click on the blue hyperlinked User Name. This will open the SNMP User

Table Display window, as shown below.

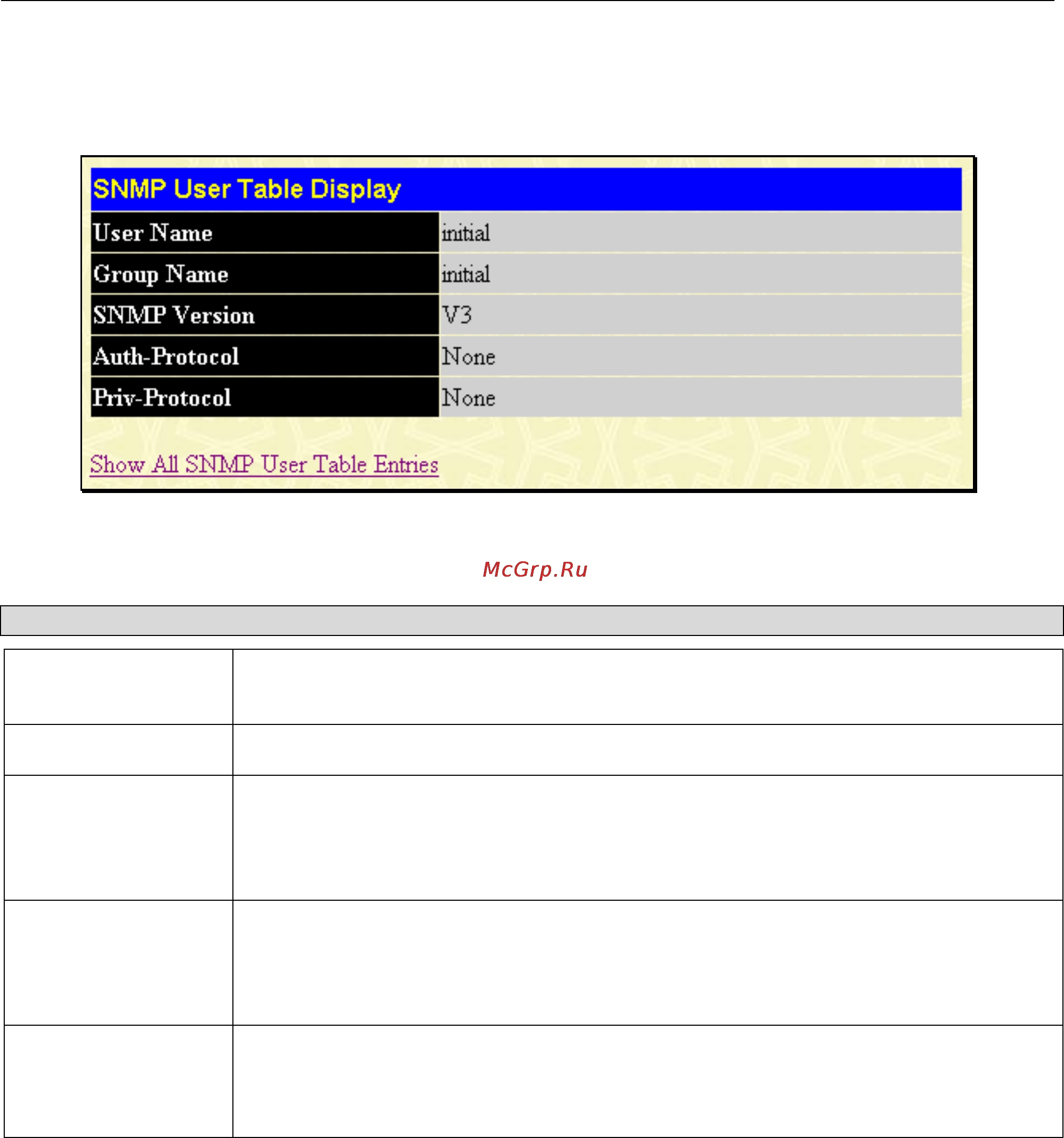

Figure 7- 6. SNMP User Table Display window

The following parameters are displayed:

Parameter Description

User Name

An alphanumeric string of up to 32 characters. This is used to identify the SNMP

users.

Group Name

This name is used to specify the SNMP group created can request SNMP messages.

SNMP Version

V1 - Indicates that SNMP version 1 is in use.

V2 - Indicates that SNMP version 2 is in use.

V3 - Indicates that SNMP version 3 is in use.

Auth-Protocol

None - Indicates that no authorization protocol is in use.

MD5 - Indicates that the HMAC-MD5-96 authentication level will be used.

SHA - Indicates that the HMAC-SHA authentication protocol will be used.

Priv-Protocol

None - Indicates that no authorization protocol is in use.

DES - Indicates that DES 56-bit encryption is in use based on the CBC-DES (DES-

56) standard.

To add a new entry to the SNMP User Table Configuration, click on the Add button on the SNMP User Table window.

This will open the SNMP User Table Configuration window, as shown below.
