DGS-3312SR Stackable Gigabit Layer 3 Switch
Switch History Log
The Switch History window displays the Switch’s history log, as compiled by the Switch’s management agent.

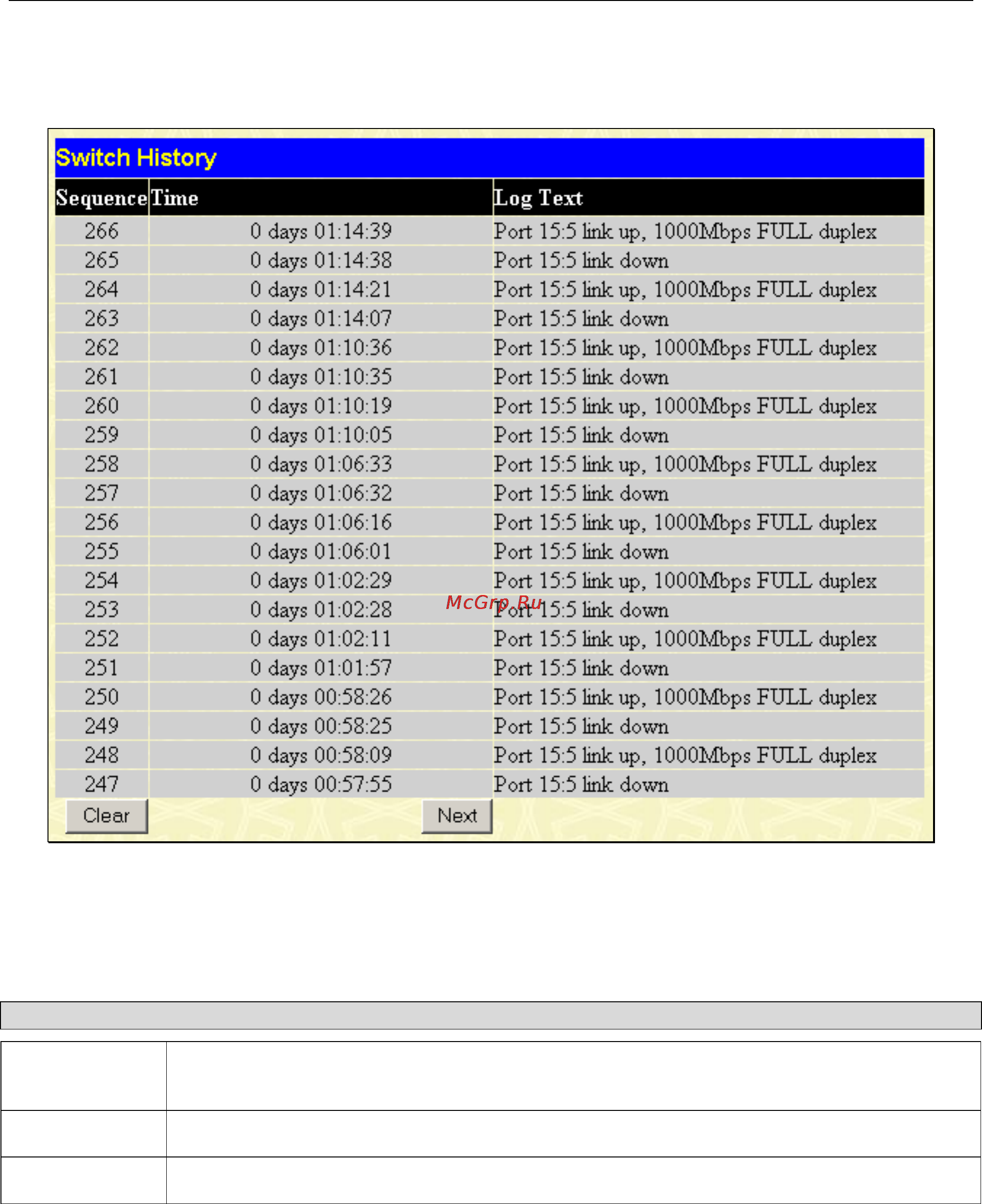

Figure 8- 19. Switch History window
The Switch can record event information in its own logs, to designated SNMP trap receiving stations, and to the PC
he c king Next at the bottom of the window will allow you to display all the Switch Trap
Logs.
T ation is descr
connected to t onsole manager. Clic
he inform ibed as follows:
Parameter Description
Sequence
A c The table
displays the last entry (highest sequence number) first.
ounter incremented whenever an entry to the Switch’s history log is made.
Time
Displays the time in days, hours, and minutes since the Switch was last restarted.
Log Text
Displays text describing the event that triggered the history log entry.
229
