DGS-3312SR Stackable Gigabit Layer 3 Switch

The e

acce

itch Information

first page displayed upon logging in is the System Information (Basic Settings) window. This window can b

ssed at any time by clicking the Switch Information link in the Configuration folder.

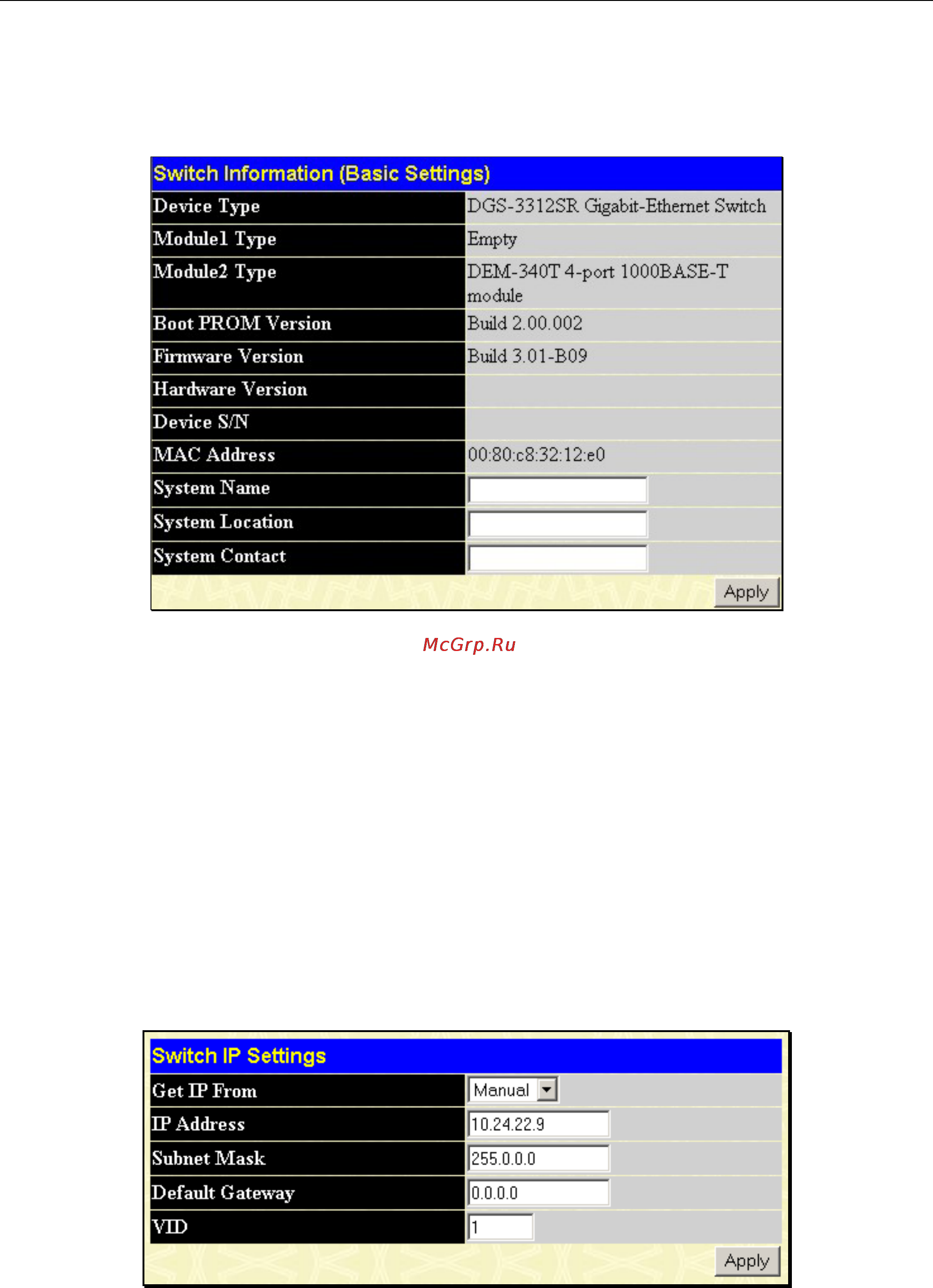

Figure 4- 1. Switch Information (Basic Settings) window

This window displays general information about the Switch including its MAC Address, Hardware Boot PROM and

Firmware versions, and installed module information.

IP Address

Switch IP settings may initially be set using the console interface prior to connecting to it through the Ethernet. If the

Switch IP address has not yet been changed, read the Introduction of the CLI Reference or skip ahead to the end of this

section for a quick description of how to use the console port and CLI IP settings commands to establish IP settings for the

Switch.

To change IP settings using the web manager you must access the Switch IP Settings window located in the

Configuration folder.

To configure the Switch’s IP address:

Open the Configuration folder and click the IP Address link. The web manager will display the Switch IP Settings

window below:

Figure 4- 2. Switch IP Settings window
