DGS-3312SR Stackable Gigabit Layer 3 Switch
OSPF General Setting
The OSPF General Setting window allows OSPF to be enabled or disabled on the Switch without changing the
Switch’s OSPF configuration.
From the Layer 3 IP Networking folder, open the OSPF sub-folder and click on the OSPF General Setting link. To
enable OSPF, first supply an OSPF Route ID (see below), select Enabled from the State drop-down menu and click the
Apply button.

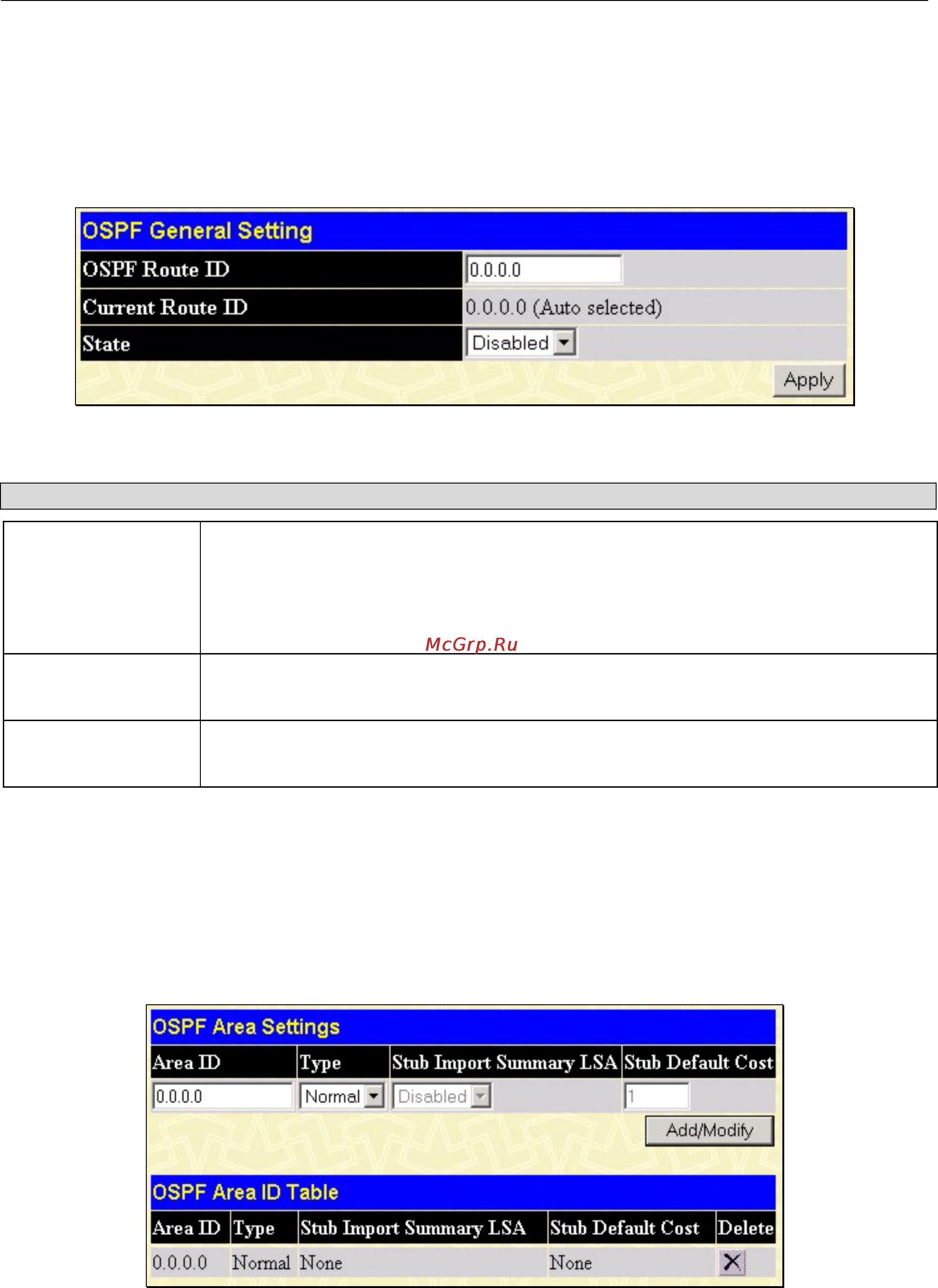

Figure 5- 30. OSPF General Setting window
The following parameters are used for general OSPF configuration:
Parameter Description
OSPF Route ID
A 32-bit number (in the same format as an IP address xxx.xxx.xxx.xxx) that uniquely
identifies the Switch in the OSPF domain. It is common to assign the highest IP
address assigned to the Switch (router). In this case, it would be 10.53.13.189, but any
unique 32-bit number will do. If 0.0.0.0 is entered, the highest IP address assigned to
the Switch will become the OSPF Route ID.
Current Route ID
Route ID is displayed Displays the OSPF Route ID currently in use by the Switch. This
as a convenience to the user when changing the Switch’s OSPF Route ID.
State
Allows OSPF to be enabled or disabled globally on the Switch without changing the
OSPF configuration.
OSPF Area ID Settings
This window allows the co l or Stub. Normal
OSPF areas allow Link-State Database (LSDB) advertisements of routes to networks that are external to the area, while
s w th
(0.0.0.0 or Area 0) to reach
To set up an OSPF Area configuration click the OSPF Area Settings link to open the following window:
nfiguration of OSPF Area IDs and to designate these areas as either Norma
tub areas do not allo e LSDB advertisement of external routes. Stub areas use a default summary external route
external destinations.
Figure 5- 31. OSPF Area Settings window
149
