Route Redistribution Settings

he network that are running OSPF or RIP. Routing information entered into the Static Routing Table on the

local Switch is also redistributed.

Routing information source − OSPF and the Static Route table. Routing information will be redistributed to RIP. The

following table lists the allowed values for the routing metrics and the types (or forms) of the routing information that will

be redistributed.

Route redistribution allows routers on the network, which are running different routing protocols to exchange routing

information. This is accomplished by comparing the routes stored in the various routers routing tables and assigning

appropriate metrics. This information is then exchanged among the various routers according to the individual routers

current routing protocol. The Switch can redistribute routing information between the OSPF and RIP routing protocols to

all routers on t

Route Source Metric Type

OSPF 0 to 16 All

ExtType2

r-E2

Internal

External

ExtType

Inter-E1 Inte

RIP 0 to 16777214 Type 1 Type 2

Static 0 to 16777214 Type 1 Type 2

Local 0 to 16777214 Type 1 Type 2

Table 5- 1. Route Redistribution Source table

Entering the Type combination − internal type_1 type_2 is functionally equivalent to all. Entering the combination type_1

type_2 is functionally equivalent to external. Entering the combination internal external is functionally equivalent to all.

Entering the metric 0 specifies transparency.

This window will redistribute routing information between the OSPF and RIP routing protocols to all routers on the

network that are running OSPF or RIP. To access the Route Redistribution Settings window, go to Configuration >

Layer 3 IP Networking > Route Redistribution Settings:

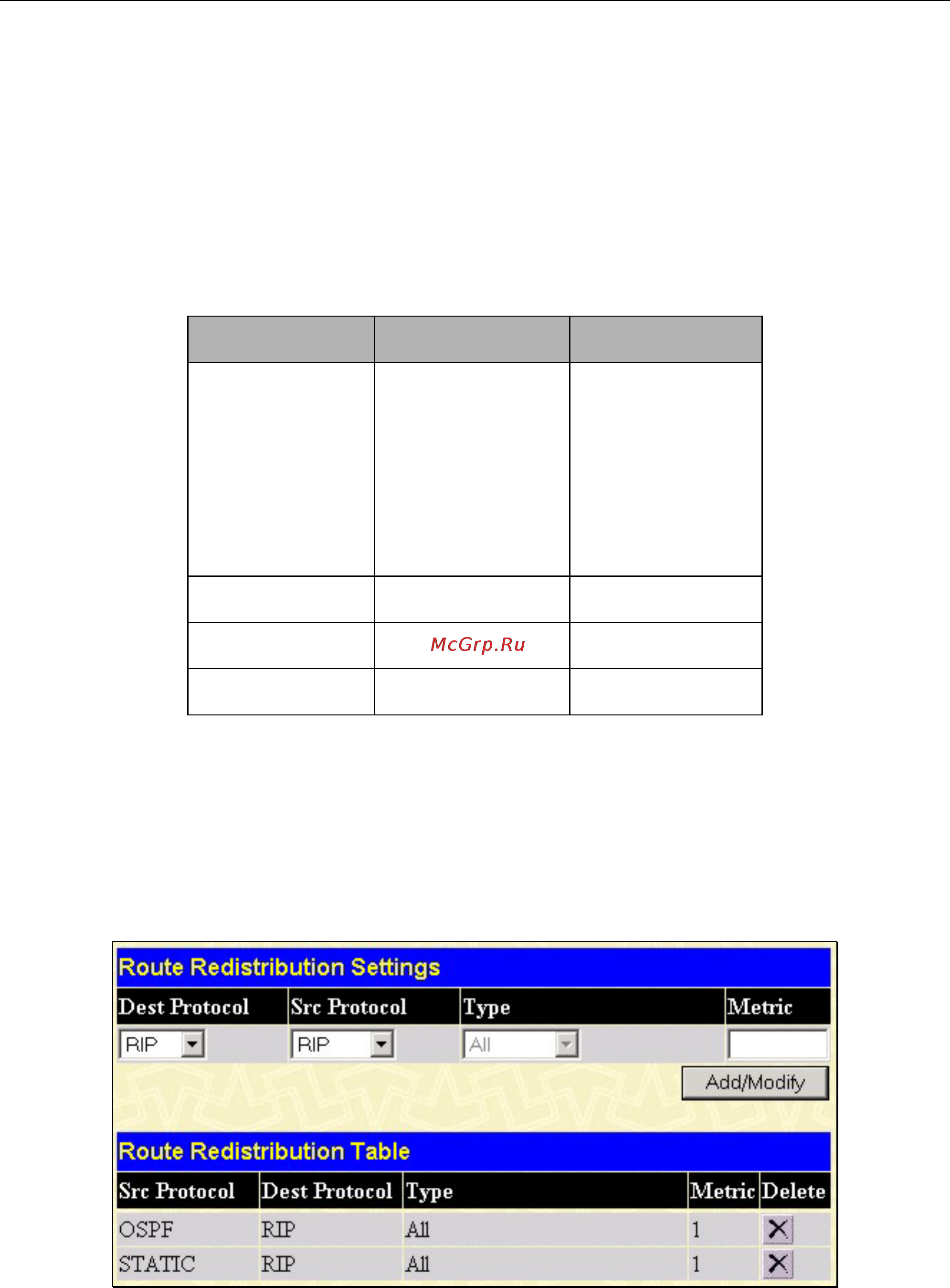

Figure 5- 7. Route Redistribution Settings window
