DGS-3312SR Stackable Gigabit Layer 3 Switch
QoS Output Sch
he output scheduling used for the hardware queues in the Switch. As with any
consideration should be given to how network traffic in lower priority queues are
eduling Configuration
QoS can be customized by changing t
changes to QoS implementation, careful
affected. Changes in scheduling may result in unacceptable levels of packet loss or significant transmission delay. If you
choose to customize this setting, it is important to monitor network performance, especially during peak demand as
bottlenecks can quickly develop if the QoS settings are not suitable.

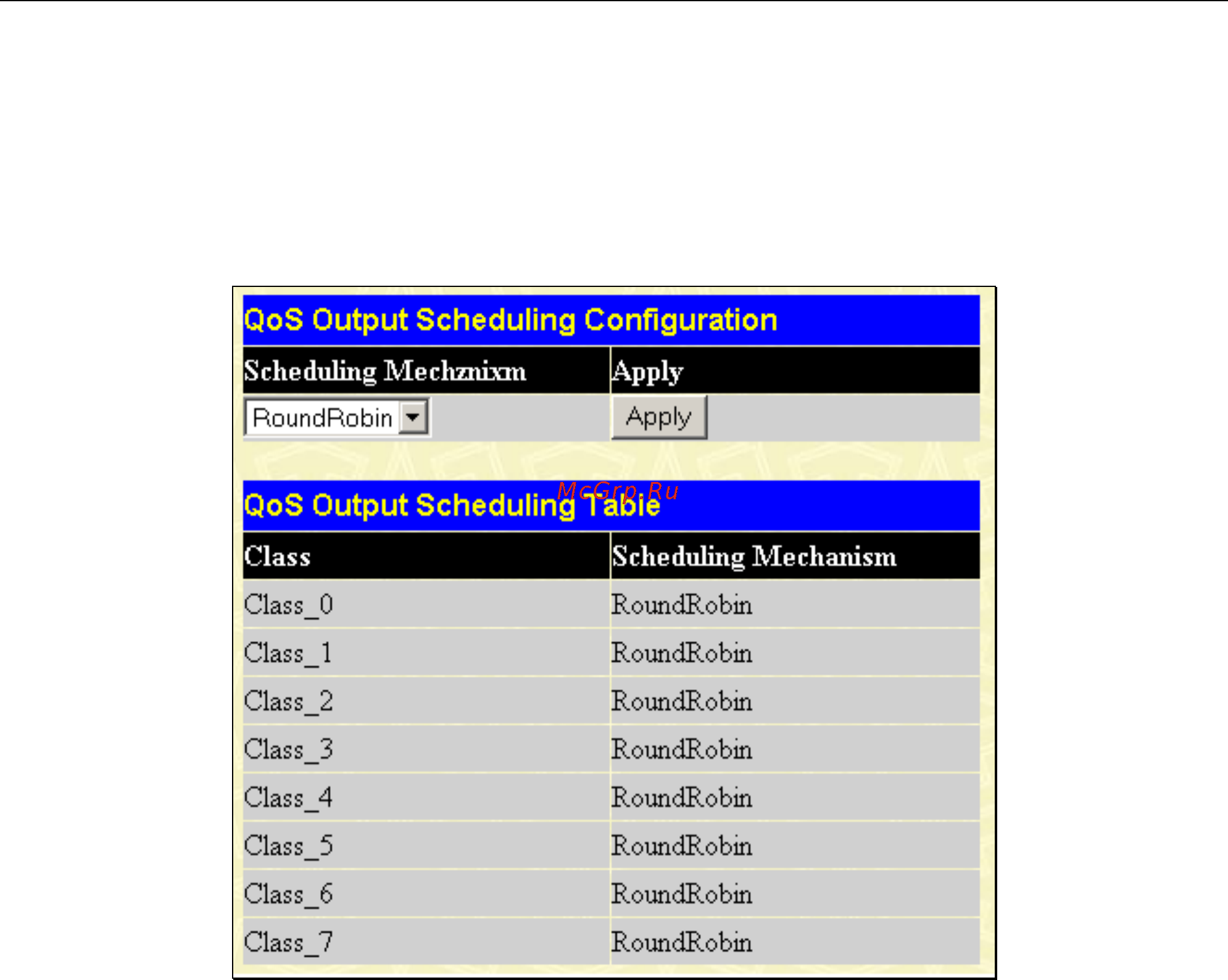

Figure 4- 60. QoS Output Scheduling Configuration window
Use the Scheduling Mechanism drop-down menu to select between a RoundRobin and a Strict mechanism for empting the
priority queues.
Click Apply to let your changes take effect.
97
