DGS-3312SR Stackable Gigabit Layer 3 Switch
Traffic Segmentation
Traffic segmentation is used to limit traffic flow from a single port to a group of ports on either a single Switch (in
This page allows you to determine which port on the master switch in a switch stack will be allowed to forward packets to
other ports on that switch.
Configuring traffic segmentation on First, you specify a switch from a
d receiving ports into the Switch’s
Traffic Segmentation table.
The Unit drop-down menu at the top of the page allows you to select a switch from a switch stack using that switch’s Unit
ID. The Port drop-down menu allows you to select a port from that switch. This is the port that will be transmitting
packets. The Portlist field will allow the user to set a port or series of ports to which traffic will be forwarded, on the same
switch. These ports will be configured for the same switch in the Switch stack that has been selected. For the master switch
of a switch stack, the traffic segmentation can be done per stacking port so the Switch can forward traffic to all the ports on
a specific switch in the Switch stack. Clicking the null click box will instruct the Switch not to forward traffic to any ports
on the selected switch.
Clicking the Apply button will enter the combination of transmitting port and allowed receiving ports into the Switch's
Traffic Segmentation Table.
standalone mode) or a group of ports on another Switch in a Switch stack. This method of segmenting the flow of traffic is
similar to using VLANs to limit traffic, but is more restrictive. It provides a method of directing traffic that does not
increase the overhead of the Master Switch CPU.
the DGS-33121SR is accomplished in two parts.
switch stack by using the Unit pull-down menu, and then a port from that switch, using the Port pull-down menu. Then
specify which ports on the Switch that you want to be able to receive packets from the Switch and port you specified in the
first part.
Clicking the Apply button will enter the combination of transmitting port and allowe

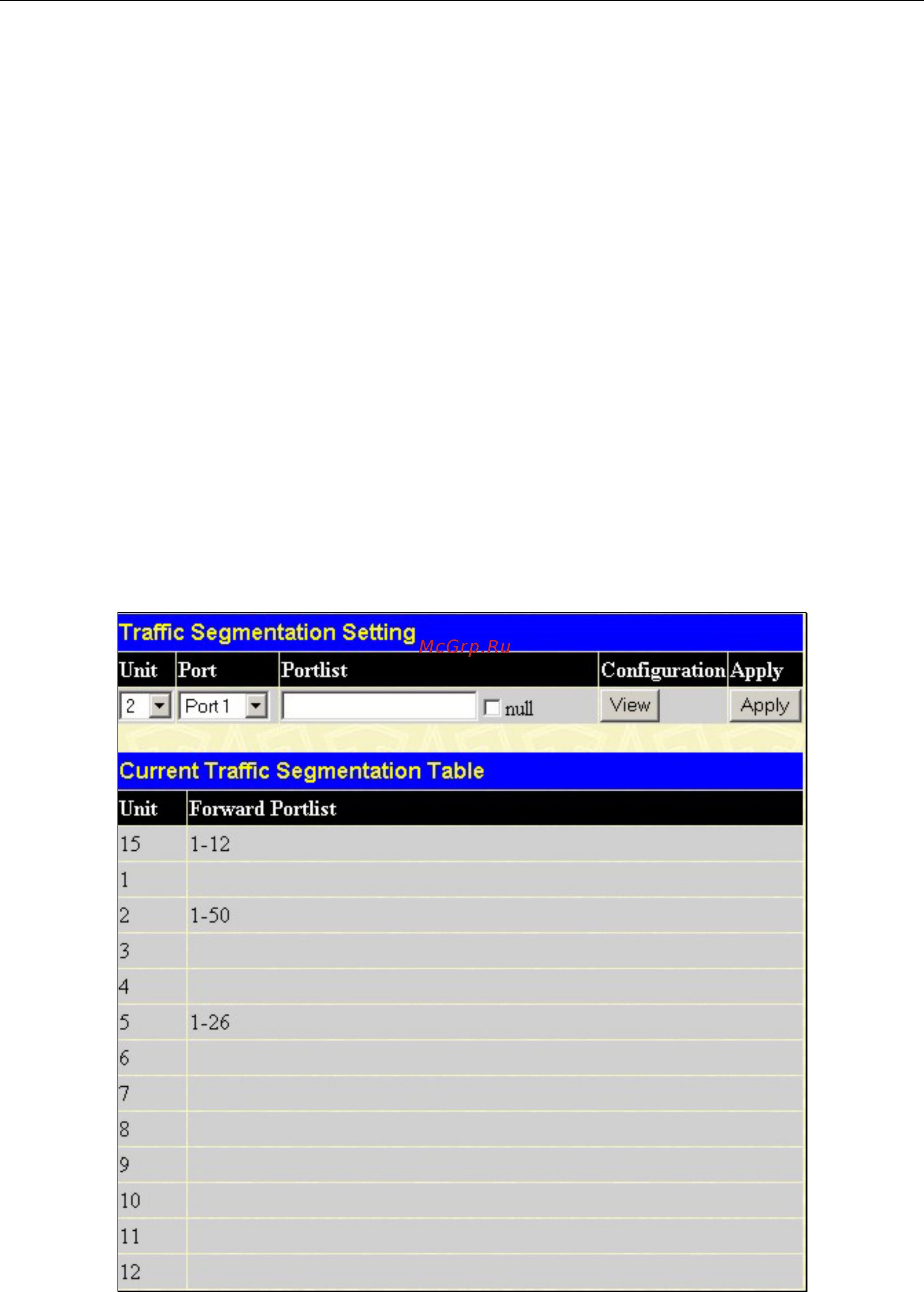

Figure 4- 61. Traffic Segmentation Setting and Current Traffic Segmentation Table window
