Client
The Client is simply the end station that wishes to gain access to the LAN or switch services. All end stations must be
running software that is compliant with the 802.1x protocol. For users running Windows XP, that software is included
within the operating system. All other users are required to attain 802.1x client software from an outside source. The Client
will request access to the LAN and or Switch through EAPOL packets and, in turn will respond to requests from the
Switch.
Figure 4- 16. The Client
Authentication Process
Utilizing the three roles stated above, the 802.1x protocol provides a stable and secure way of authorizing and
authenticating users attempting to access the network. Only EAPOL traffic is allowed to pass through the specified port
before a successful authentication is made. This port is “locked” until the point when a Client with the correct username
and password (and MAC address if 802.1x is enabled by MAC address) is granted access and therefore successfully
“unlocks” the port. Once unlocked, normal traffic is allowed to pass through the port. The following figure displays a more
detailed explanation of how the authentication process is completed between the three roles stated above.

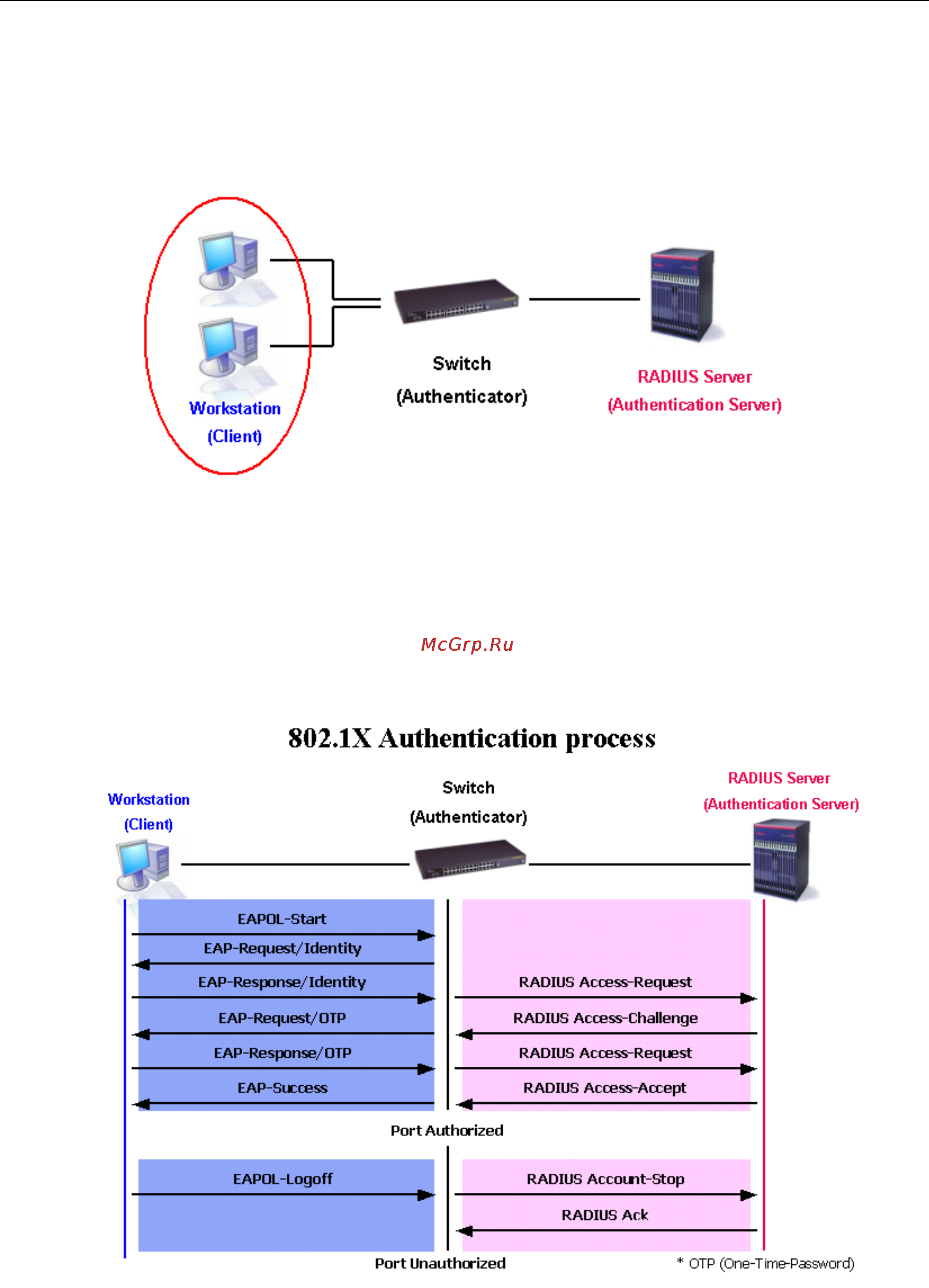

Figure 4- 17. The 802.1x Authentication Process
