DGS-3312SR Stackable Gigabit Layer 3 Switch
Basic Setup
The subsections below de nd
assigning user names and
Switch.
witch Information
The first page dis window can be
accessed at any time by clicking the Switch Information button in the Configuration folder.
scribe how to change some of the basic settings for the Switch such as changing IP settings a
passwords for management access privileges, as well as how to save the changes and restart the
S
played upon logging in is the System Information (Basic Settings) window. This

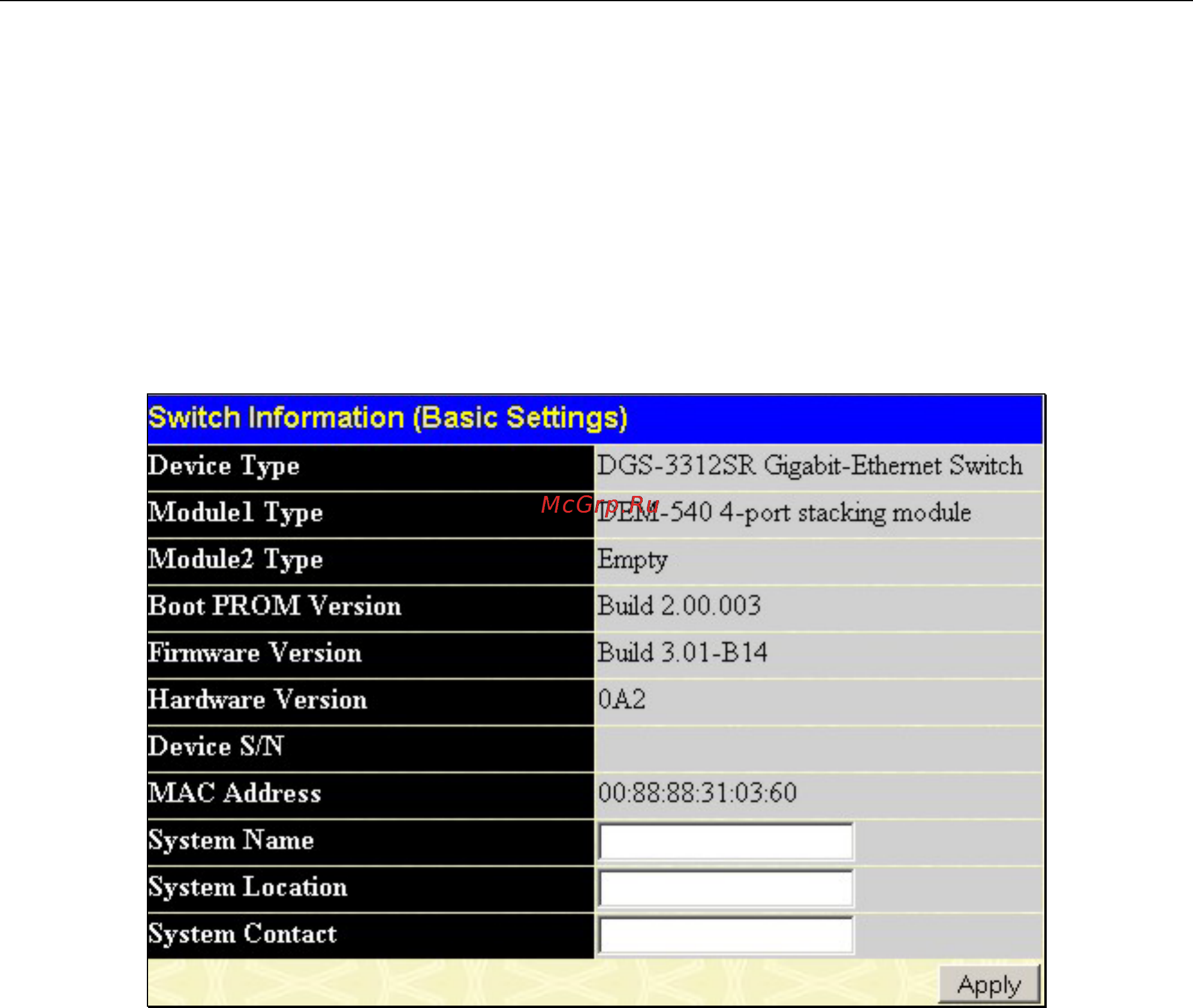

Figure 3-2. Switch Information (Basic Settings) window
This window displays general information about the Switch including its MAC Address, Hardware Boot PROM and
Firmware versions, and installed module information.
Switch IP Settings
Switch IP settings may initially be set using the console interface prior to connecting to it through the Ethernet. If the
Switch IP address has not yet been changed, read the Introduction of the CLI Reference or skip ahead to the end of this
section for a quick description of how to use the console port and CLI IP settings commands to establish IP settings for the
Switch.
To change IP settings using the web manager you must access the Switch IP Settings window located in the
Configuration folder.
To configure the Switch’s IP address:
Open the Configuration folder and click the IP Address button. The web manager will display the Switch IP Settings
window below.
26
