DGS-3312SR Stackable Gigabit Layer 3 Switch

Authentication S

ow use d

CAC ver hosts into user-defined categories for authentication

using method lists. The user

Switch has four built-in A t

authentication server hosts m

To view the following window, cl

erver Group

This window will all

to group RADIUS, TA

rs to set up Authentication Server Groups on the Switch. A server group is a technique use

S, TACACS+, and XTACACS ser

may define the type of server group by protocol or by previously defined server group. The

uthentication Server Groups that cannot be removed but can be modified. Up to eigh

ay be added to any particular group.

ick Security > Access Authentication Control > Authentication Server Group:

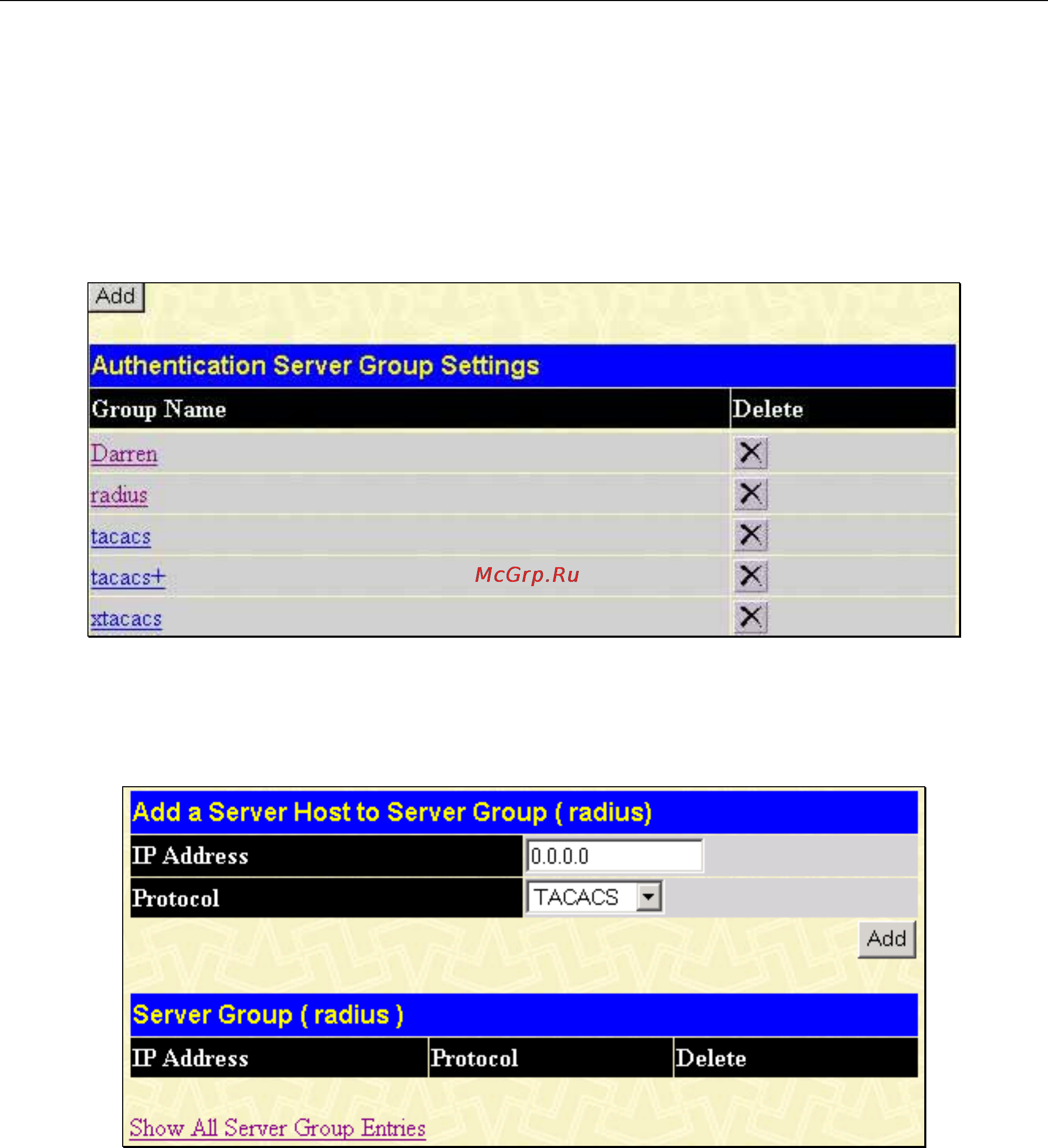

Figure 6- 10. Authentication Server Group Settings window

This window displays the Authentication Server Groups on the Switch. The Switch has four built-in Authentication

Server Groups that cannot be removed but can be modified. To modify a particular group, click its hyperlinked Group

Name, which will then display the following window.

Figure 6- 11. Add a Server Host to Server Group (radius) window

To add an Authentication Server Host to the list, enter its IP address in the IP Address field, choose the protocol

associated with the IP address of the Authentication Server Host (RADIUS, TACACS, TACACS+, or XTACACS) and click

Add to add this Authentication Server Host to the group.

To add a server group other than the ones listed, click the add button, revealing the following window to configure.

188
