DGS-3312SR Stackable Gigabit Layer 3 Switch

IGMP Interface Settings

links are located in the IP Multicast subfolder in the Layer 3 IP Networking configuration folder.

ace Settings:

The IGMP interface

Click IGMP Interf

h on a per-IP interface basis. Each IP

IGMP Interface Configuration

The Internet Group Multicasting Protocol (IGMP) can be configured on the Switch on a per-IP interface basis. To view the

IGMP Interface Table, open the IP Multicast Routing Protocol folder under Configuration and click IGMP Interface

Settings. Each IP interface configured on the Switch is displayed in the below IGMP Interface Table dialog box. To

configure IGMP for a particular interface, click the corresponding hyperlink for that IP interface. This will open another

IGMP Interface Configuration window:

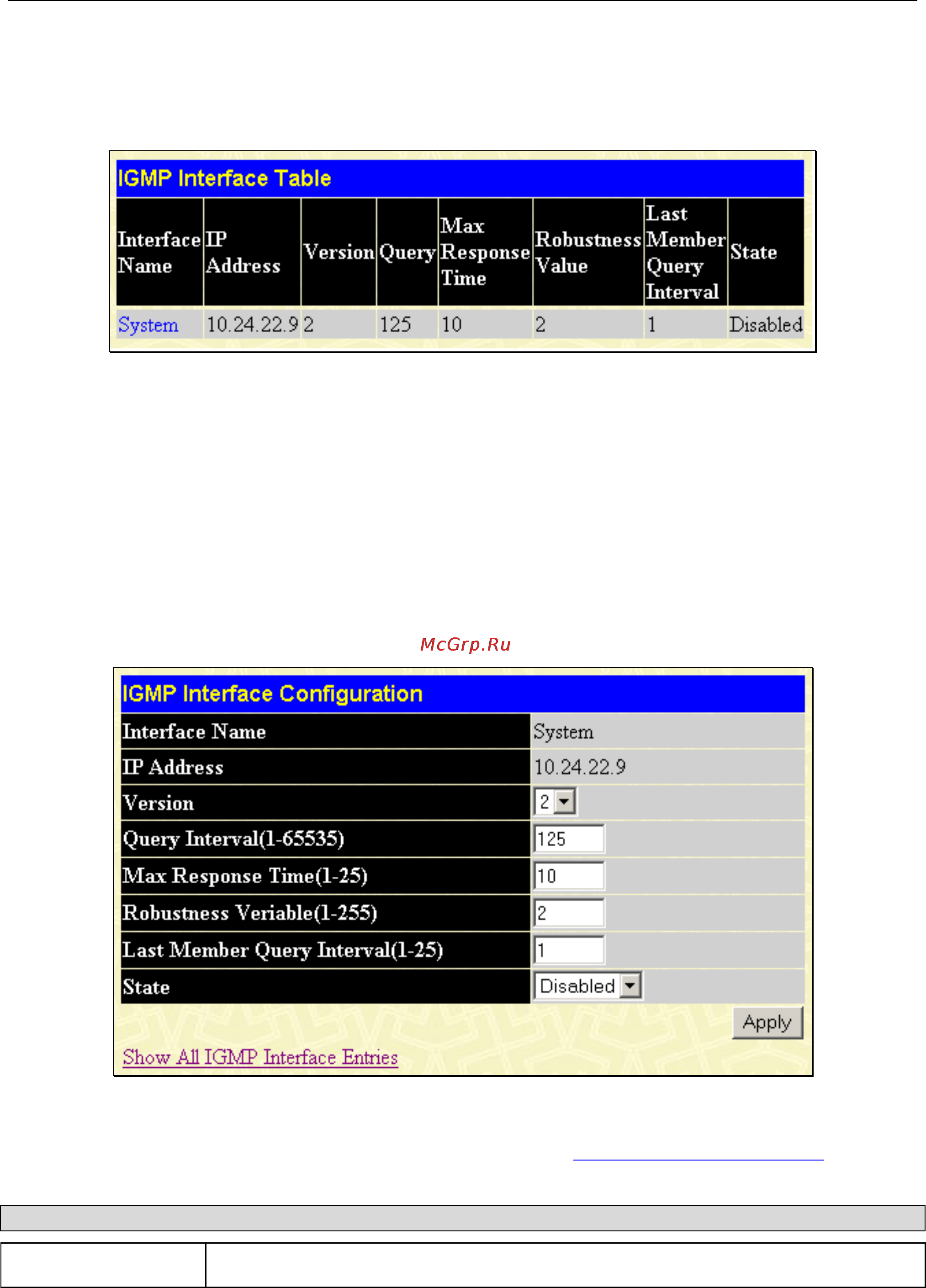

Figure 5- 49. IGMP Interface Table window

The Internet Group Multicasting Protocol (IGMP) can be configured on the Switc

interface configured on the Switch is displayed in the IGMP Interface Table. To configure an IP interface click on the

hyperlinked Interface Name:

Figure 5- 50. IGMP Interface Configuration window

Configure IGMP settings for each IP interface and click on the Apply button to apply the new or changed settings. The

new values will appear in the IGMP Interface Table. To view the table click

Show All IGMP Interface Entries.

The following IGMP interface parameters may be configured per interface:

Parameter Description

Interface Name

Displays the name of the IP interface that is to be configured for IGMP. This must be a

previo

usly configured IP interface

169
