DVMRP Monitor

DVMRP and its features in relation to the DGS-3312SR can be found in Section 6, under IP Multicast Routing Protocol.

Browse DVMRP Routing

Feature sub-folder, under DVMRP Monitor, contains one row for each port in a

DVMRP mode. Each routing entry contains information about the source and multicast group, and incoming and outgoing

interfaces. You may define your search by entering a Source IP Address and its subnet mask into the fields at the top of the

window and clicking Browse.

This menu allows the DVMRP (Distance-Vector Multicast Routing Protocol) to be monitored for each IP interface defined

on the Switch. This folder, found in the Monitoring folder, offers three screens for monitoring; Browse DVMRP Routing

Table, Browse DVMRP Neighbor Address Table and Browse DVMRP Routing Next Hop Table. Information on

Table

Multicast routing information is gathered and stored by DVMRP in the DVMRP Routing Table, which may be found in the

Monitoring folder, in the Layer 3

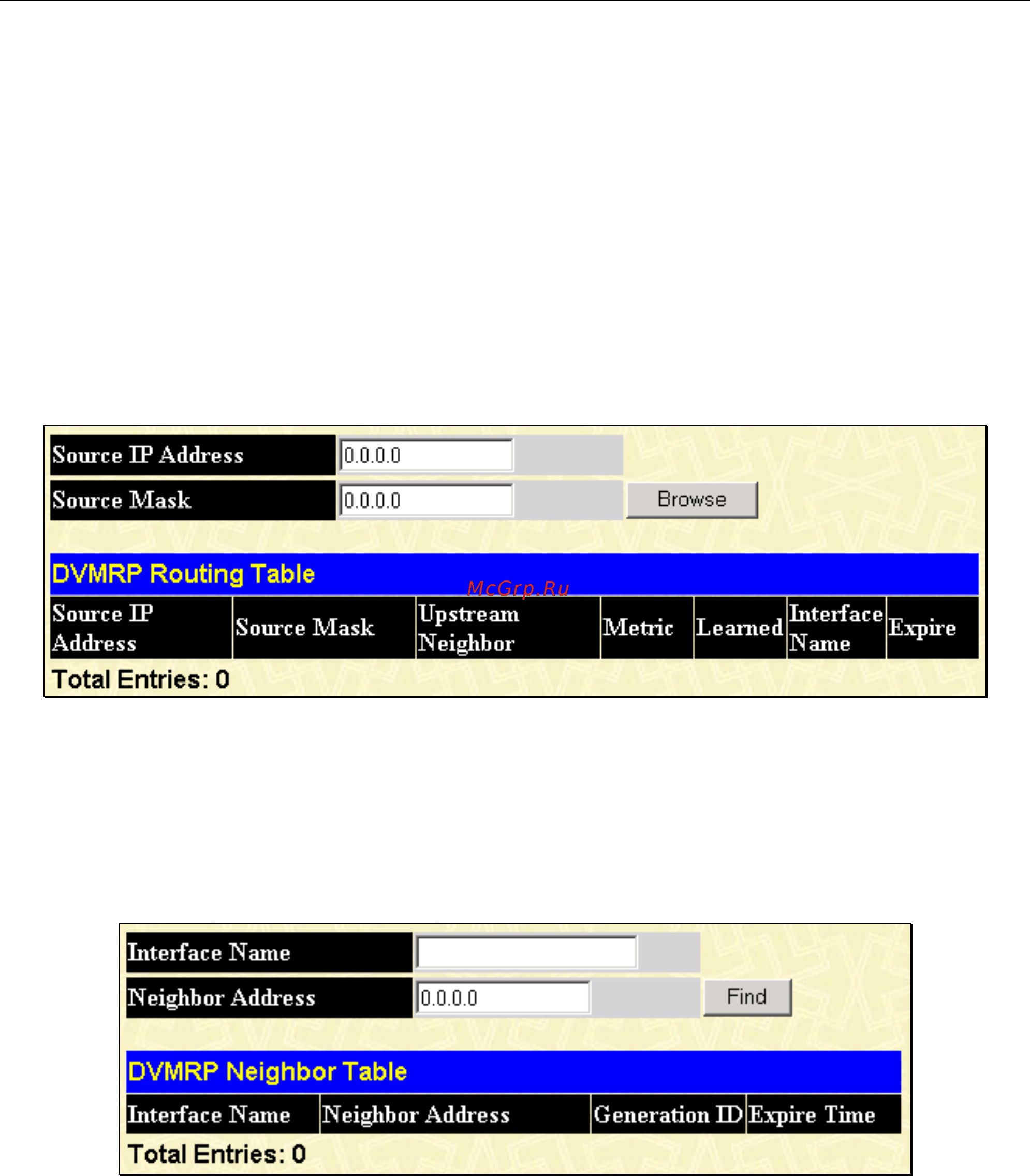

Figure 8- 34. DVMRP Routing Table window

Browse DVMRP Neighbor Address Table

und in

information about D

Neighbor Address in

This table, fo the Monitoring folder, in the Layer 3 Feature sub-folder, under DVMRP Monitor contains

VMRP neighbors of the Switch. You may define your search by entering an Interface Name and

the fields at the top of the window and clicking Find.

Figure 8- 35. DVMRP Neighbor Table window
