DGS-3312SR Stackable Gigabit Layer 3 Switch
T
The Topology window will be used to configure and manage the Switch within the SIM group and requires Java script to
f m ppear the first time the user clicks the Topology link
i nt
opology
unction properly on your co
n the Single IP Manageme
puter. The following message should a
folder.

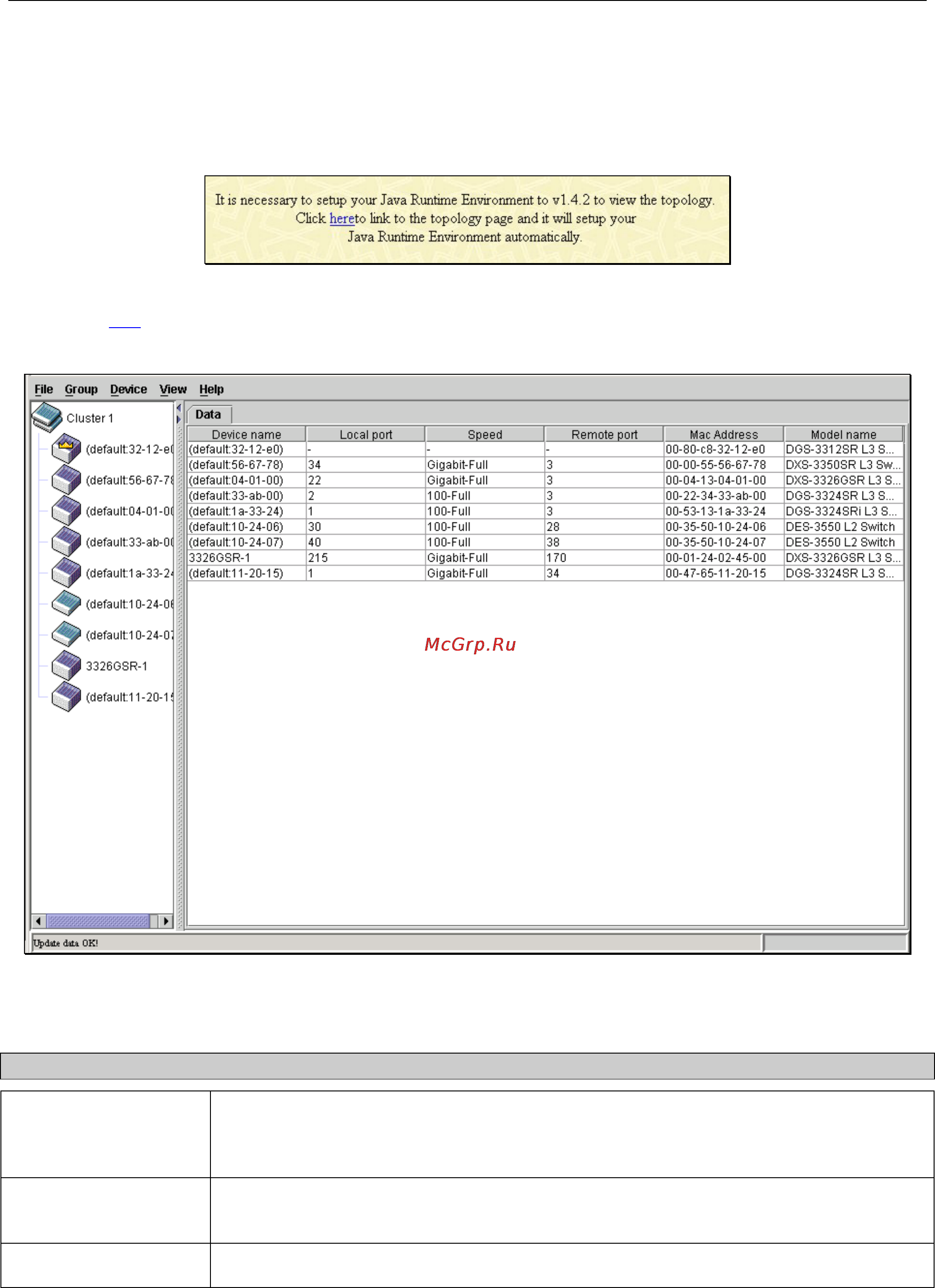

10- 3. Java window
Clicking the
here
Figure
link will setup the Java Runtime Environment on your server and lead you to the topology window, as
seen below.
Figure 10- 4. Single IP Management window-Tree View
Tree View window holds the following information under the Data tab: The
Parameter Description
Device Name
This field will display the Device Name of the Switches in the SIM group configured by
the user. If no Device Name is configured by the name, it will be given the name
default and tagged with the last six digits of the MAC Address to identify it.
Local Port
Displays the number of the physical port on the CS that the MS or CaS is connected
to. The CS will have no entry in this field.
Speed
Displays the connection speed between the CS and the MS or CaS.
