DGS-3312SR Stackable Gigabit Layer 3 Switch
Parameter Description
DNS Relay Status
Enable or disable DNS Relay.
Primary Name Server
Indicates that the IP address below is the address of the primary DNS server.
Secondary Name Server
Indicates that the IP address below is the address of the secondary DNS
server.
DNSR Cache Status
Use this to enable the DNS relay cache function. The DNS cache relay can
be used to temporarily store DNS relay information for faster recall.
DNSR Static Table Status
Use this to enable the DNS relay static table. This table will permanently store
DNS relay information in a static table. Configure the table using the window
pictured below.
To configure permanent entries for the DNS Relay Static Table, use the following window.
DNS Relay Static Settings
To view the DNS Relay Static Settings, click Configuration > Layer 3 IP Networking > DNS Relay > DNS Relay
Static Settings, which will open the DNS Relay Static Settings window, as seen below:

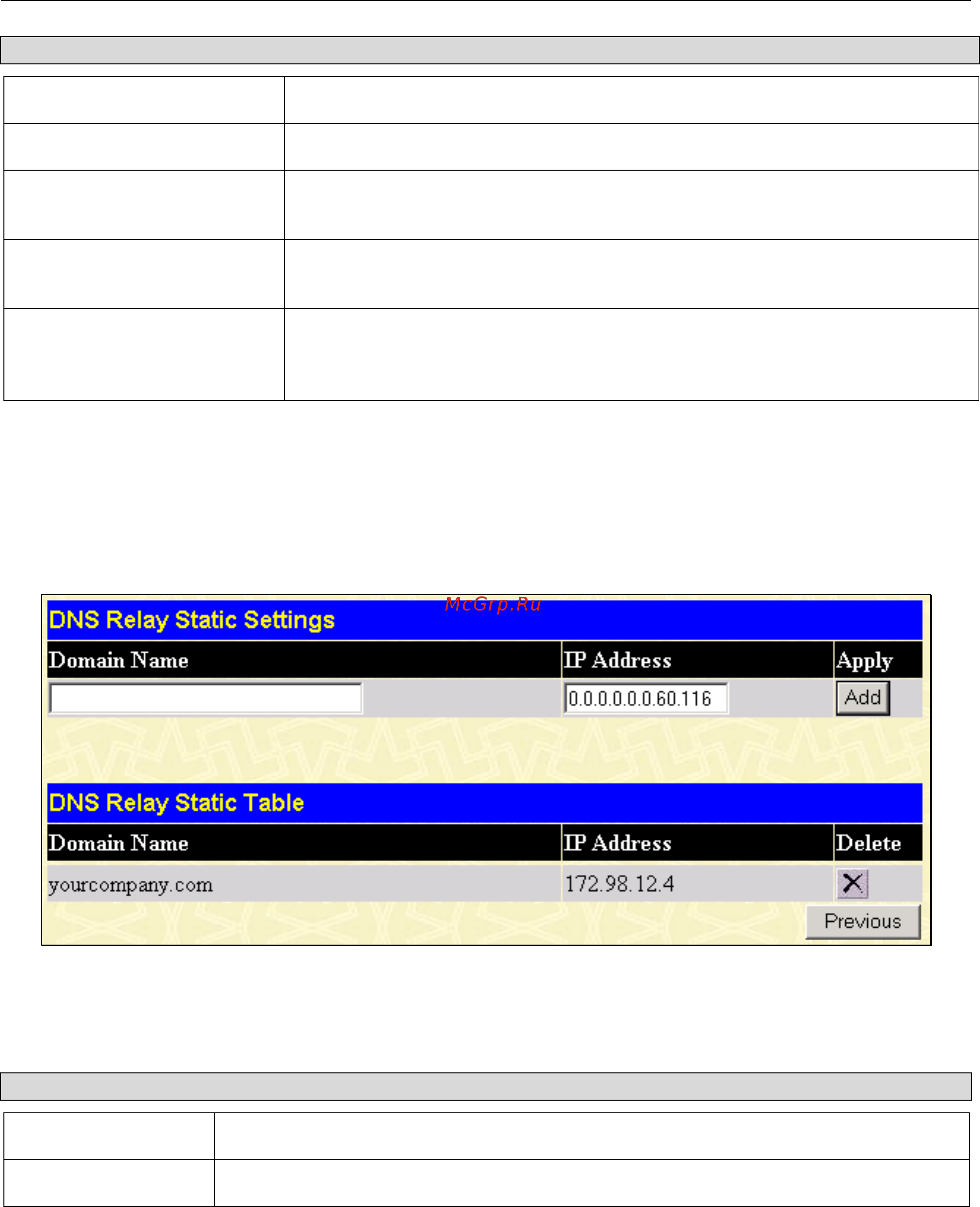

Figure 5- 44. DNS Relay Static Settings window
To create a new DNS Relay Static entry, enter the Domain Name and the associated IP Address. Click on the Add button
to enter the settings into the static table. Click the X in the Delete column to delete the corresponding entry.
Parameter Description
Domain Name
The domain name used for the static entry.
IP Address
The IP address associated with the domain name.
160
