IP Interface Settings

Each VLAN must be configured prior to setting up the VLAN’s corresponding IP interface.

To set up IP interfaces, open the Layer 3 IP Networking sub-folder in the Configuration folder and then click IP

Interfaces Settings to open the following window:

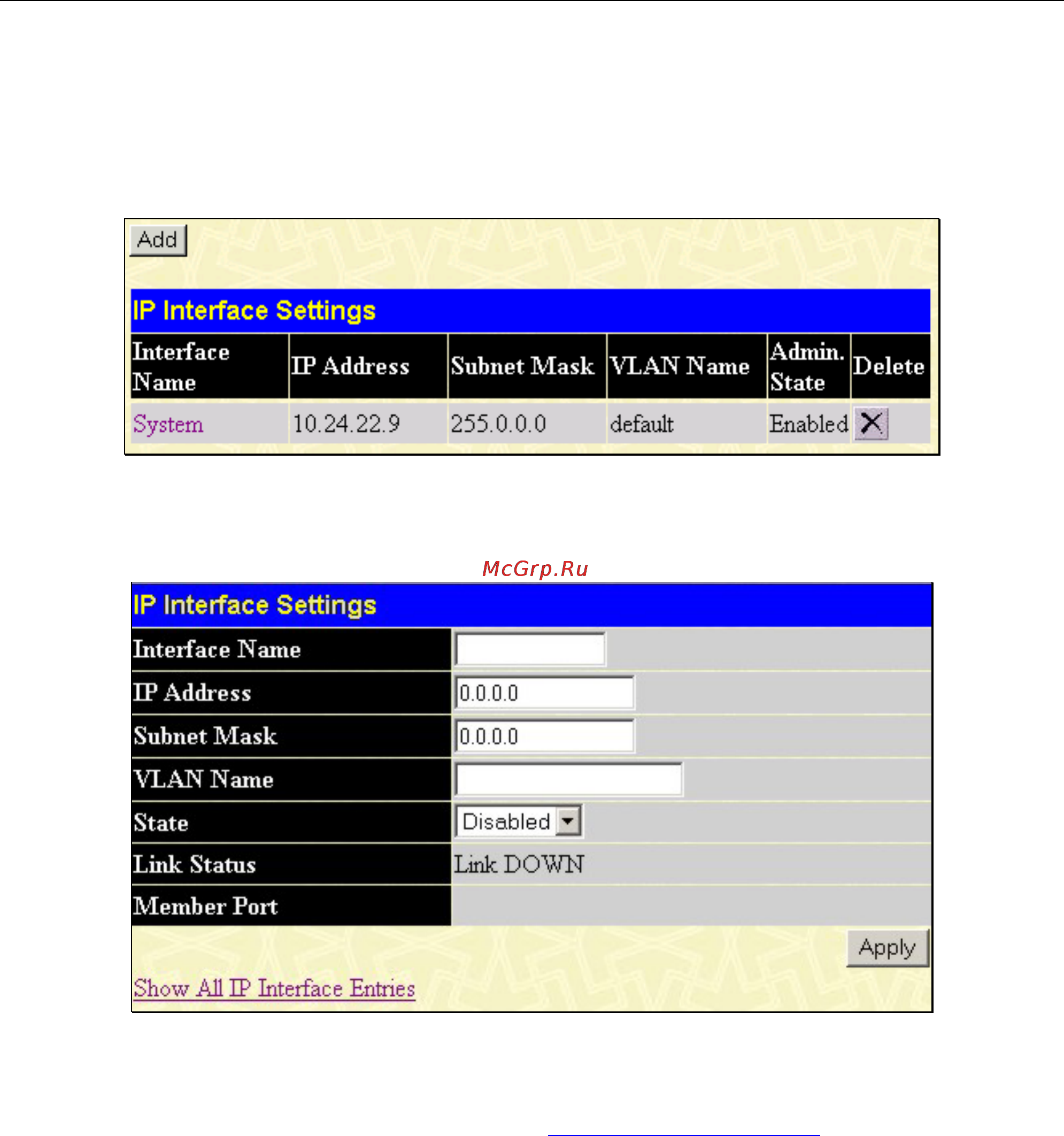

Figure 5- 2. IP Interface Settings window

Click the Add button to co ting IP interface, click on

the hyperlinked Interface N

nfigure settings for a new IP interface. If you want to change an exis

ame in the list.

Figure 5- 3. IP Interface Settings window - Add

Enter the desired IP interface settings and click the Apply button. A message should appear informing you if the settings

have been successfully applied. For convenience, you may want to use the same name for the IP interface and the VLAN.

To return to the first IP Interface Settings window, click the

Show ALL IP Interface Entries link. The example pictured

below follows the example IP interface setup discussed on the previous window.
