VRRP Interface Settings
The following window will allow the user to view the parameters for the VRRP function on the Switch. This window can
also be used to set the authentication for each Interface configured for VRRP. This authentication is used to identify
incoming message packets received by a router. If the authentication is not consistent with incoming packets, they will be
discarded. The Authentication Type must be consistent with l routers participating within the VRRP group. al

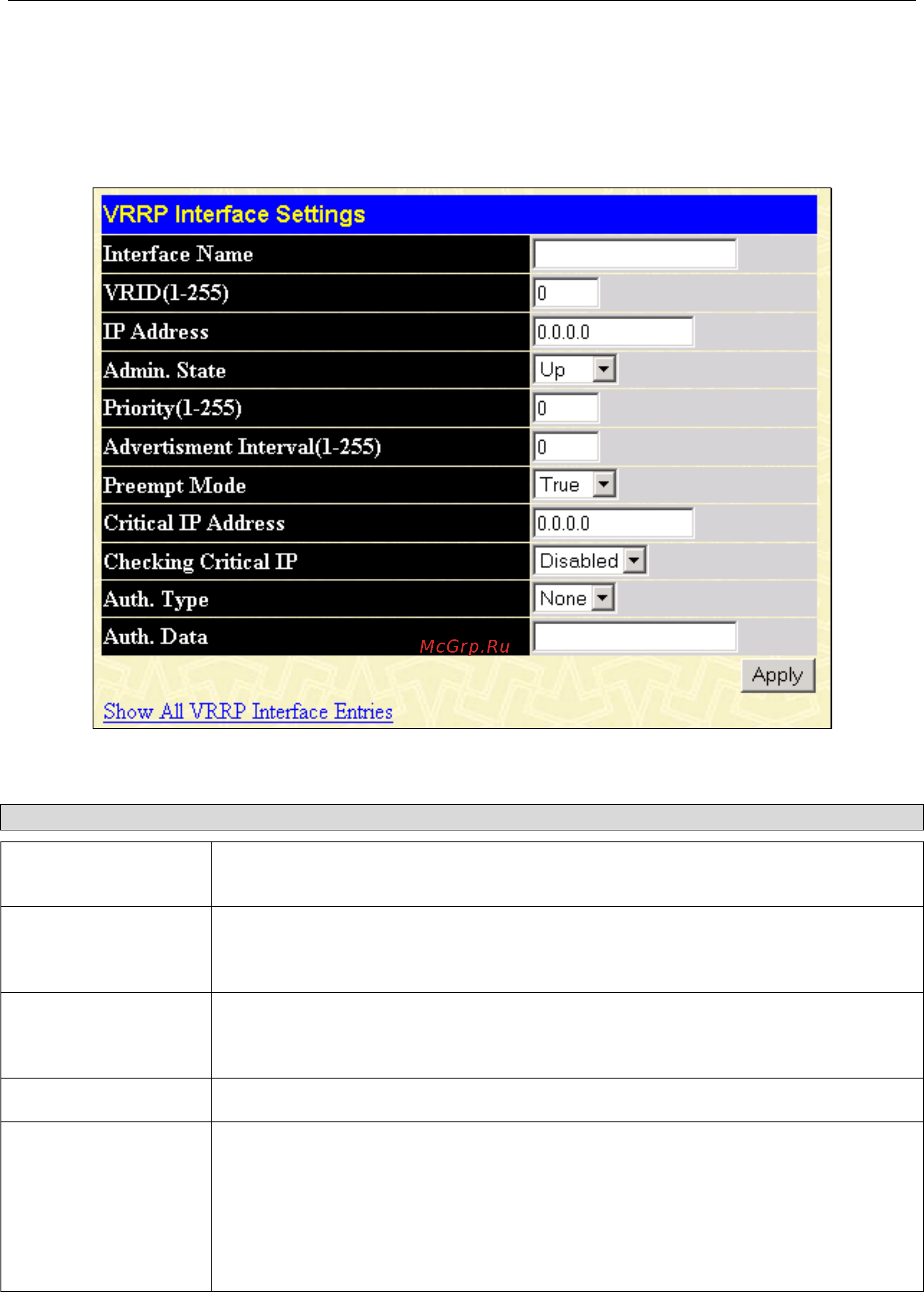

Figure 5- 47. VRRP Interface Settings window
The following parameters may be set to configure an existing or new VRRP interface.
Parameter Description
Interface Name
Enter the name of a previously configured IP interface to create a VRRP entry for.
This IP interface must be assigned to a VLAN on the Switch.
VRID (1-255)
Enter a value between 1 and 255 to uniquely identify this VRRP group on the Switch.
All routers participating in this group must be assigned the same VRID value. This
value MUST be different from other VRRP groups set on the Switch.
IP Address
Enter the virtual IP address that will be assigned to the VRRP entry. This IP address
is also the default gateway that will be statically assigned to end hosts and must be
set for all routers that participate in this group.
Admin. State
) the VRRP IP interface on the Switch. Used to enable (Up) and disable (Down
Priority (1-255)
P Priority
value may determine if a higher priority VRRP router overrides a lower priority VRRP
uter of the group. A lower priority will increase the probability that this router
s that are assigned the same priority
Enter a value between 1 and 255 to indicate the router priority. The VRR
router. A higher priority will increase the probability that this router will become the
Master ro
will become the backup router. VRRP router
value will elect the highest physical IP address as the Master router. The default
value is 100.
