DGS-3312SR Stackable Gigabit Layer 3 Switch
Port Configuration
To configure basic port settings such as port speed, duplex, and learning state, use the Port Configuration window.
Click the Port Configuration link in the Configuration folder:

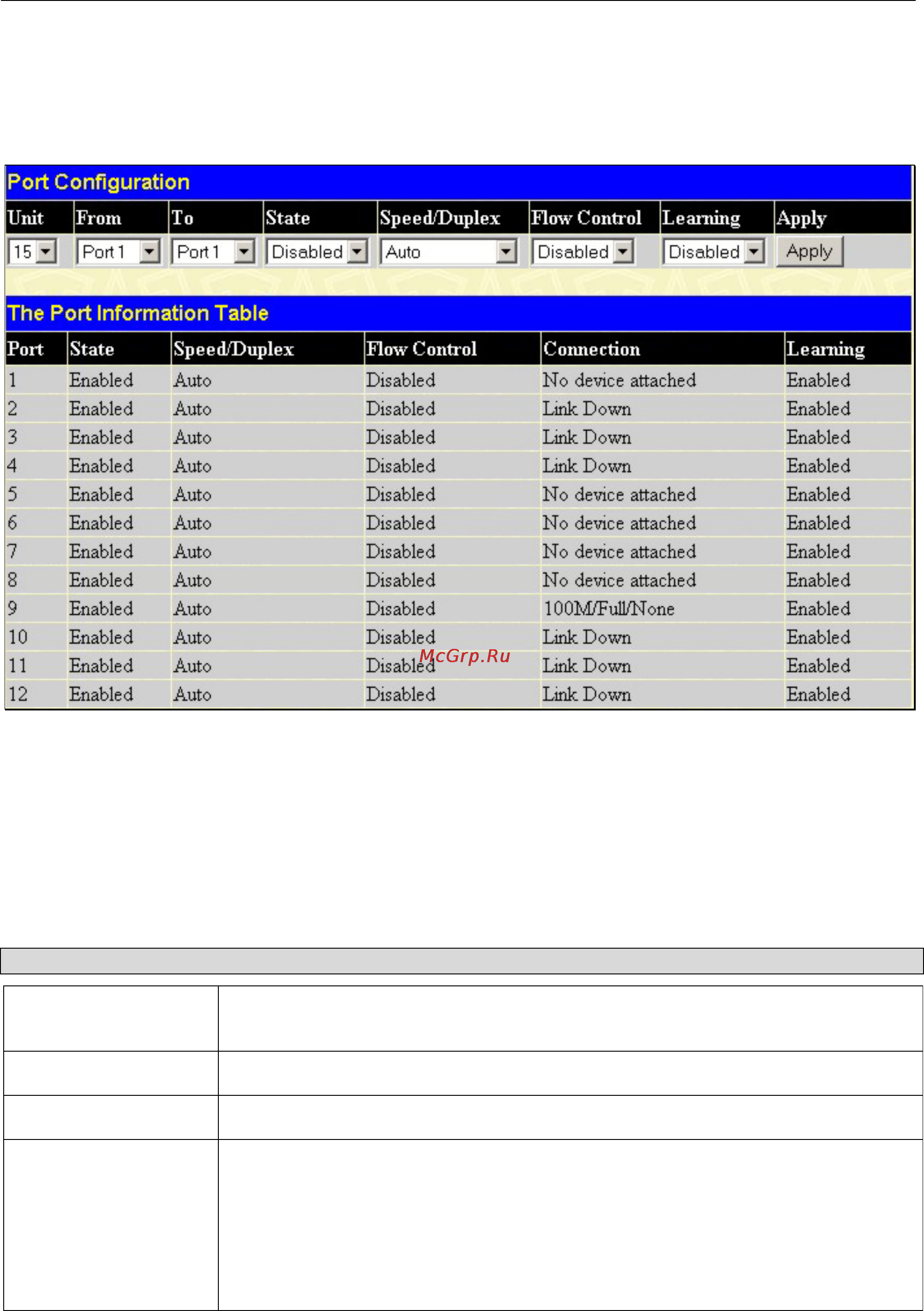

Figure 4- 4. Port Configuration and The Port Information Table window
To configure Switch ports:
enu.
Choose the port or sequential range of ports using the From…To… port pull-down menus.
onfigure the parameters described in the table below.
nfigurable parameters
Choose the Unit from the pull-down m
Use the remaining pull-down menus to c
The co for ports include the following:
Parameter Description
Unit
Select the Switch in the Switch stack t
a switch in standalone mode.
o be configured using the pull-down menu. 15
From… To
Select a port or range of ports to be configured
State <Enabled> Toggle the State field to either enable or disable a given port.
Speed/Duplex <Auto> Toggle the Speed/Duplex field to either select the speed and duplex/half-duplex
state of the port. Auto denotes auto-negotiation between 10 and 100 Mbps devices,
in full- or half-duplex. The Auto setting allows the port to automatically determine the
fastest settings the device the port is connected to can handle, and then to use
those settings. The other options are Auto, 10M/Half, 10M/Full, 100M/Half and
100M/Full, 1000M/Full_M and 1000M/Full_S. There is no automatic adjustment of
port settings with any option other than Auto.
44
