DGS-3312SR Stackable Gigabit Layer 3 Switch
IGMP Snooping Table
This window allows the MP S P Snooping allows the Switch to read
the Multicast Group IP a the co ets that pass through the Switch. The
number of IGMP reports
To view the IGMP Snoo ing Group on the Monitoring menu:
Switch’s IG nooping Group Table to be viewed. IGM
ddress and rresponding MAC address from IGMP pack
that were snooped is displayed in the Reports field.
ping Group Table, click IGMP Snoop

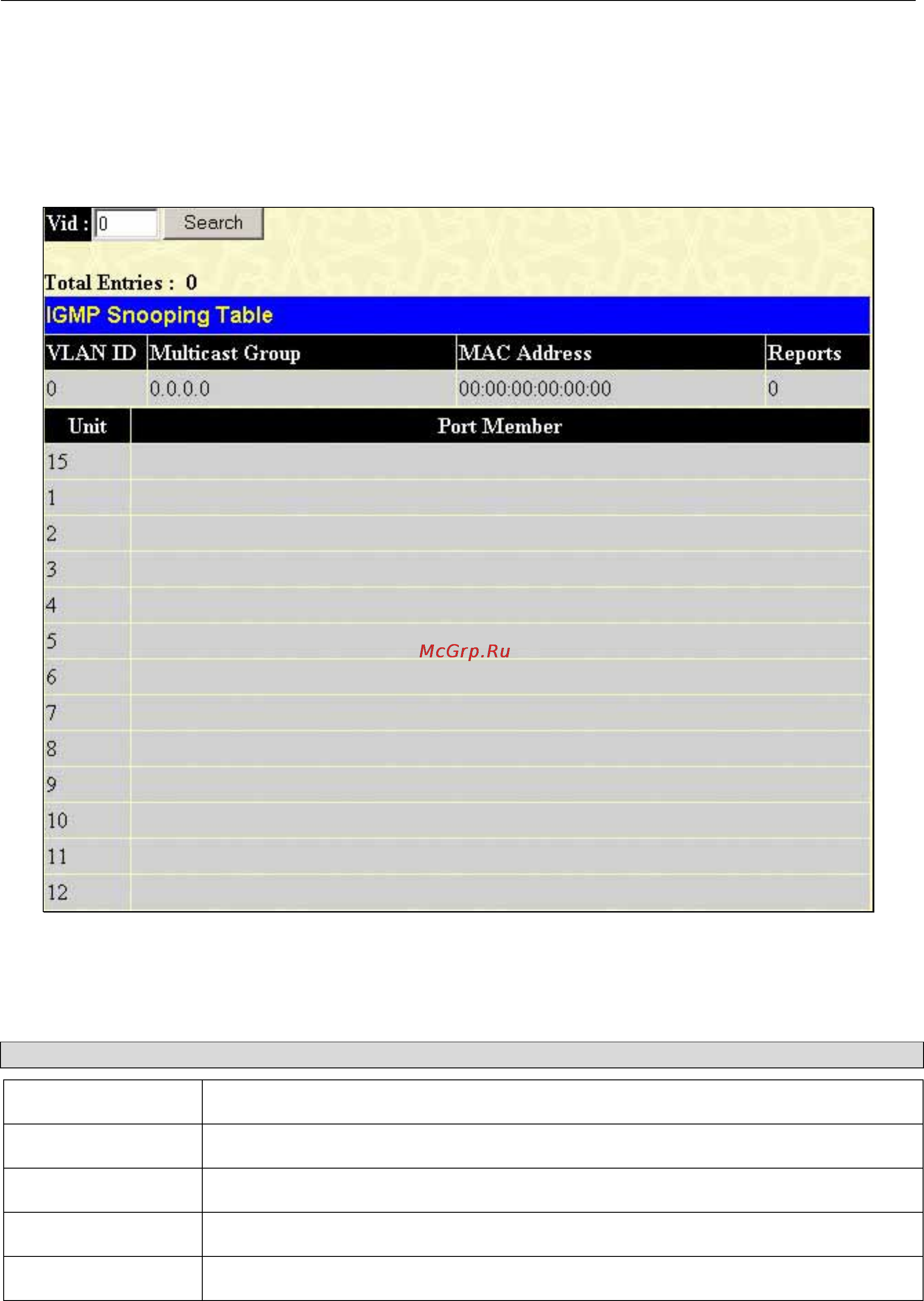

Figure 8- 20. IGMP Snooping Table window
The user may search the IGMP Snooping Group Table by VLAN Name by entering it in the top left hand corner and
clicking Search.
The following field can be set:
Parameter Description
VLAN Name
The VLAN Name of the multicast group.
Multicast Group
The IP address of the multicast group.
MAC Address
The MAC address of the multicast group.
Reports
The total number of reports received for this group.
Port Member
These are the ports where the IGMP packets were snooped are displayed.
