DGS-3312SR Stackable Gigabit Layer 3 Switch
Master Port
Choose the Master port for the trunk group.
Member Unit
Choose the Switch unit on which to set up a trunk group. Link aggregation groups
support cross-box configuration, which means that trunking groups can be spread
over multiple switches in the switch stack.
Port Map
Choose the members of the trunked group. Up to eight ports per group can be
assigned to a group.
Flooding Port
A trunking group must designate one port to allow transmission of broadcasts and
unknown unicasts.
Active Port
Shows the port that is currently forwarding packets.
Click Apply to implement changes made.
LACP Port Settings
The LACP Port Mode Setup window is used in conjunction with the Link Aggregation windows to create port trunking
groups on the Switch. Using the following window, the user may set which ports will be active and passive in processing
and sending LACP control frames. To view the following window, click Configuration > Link Aggregation > LACP
Port Setting.
The use wing parameters:

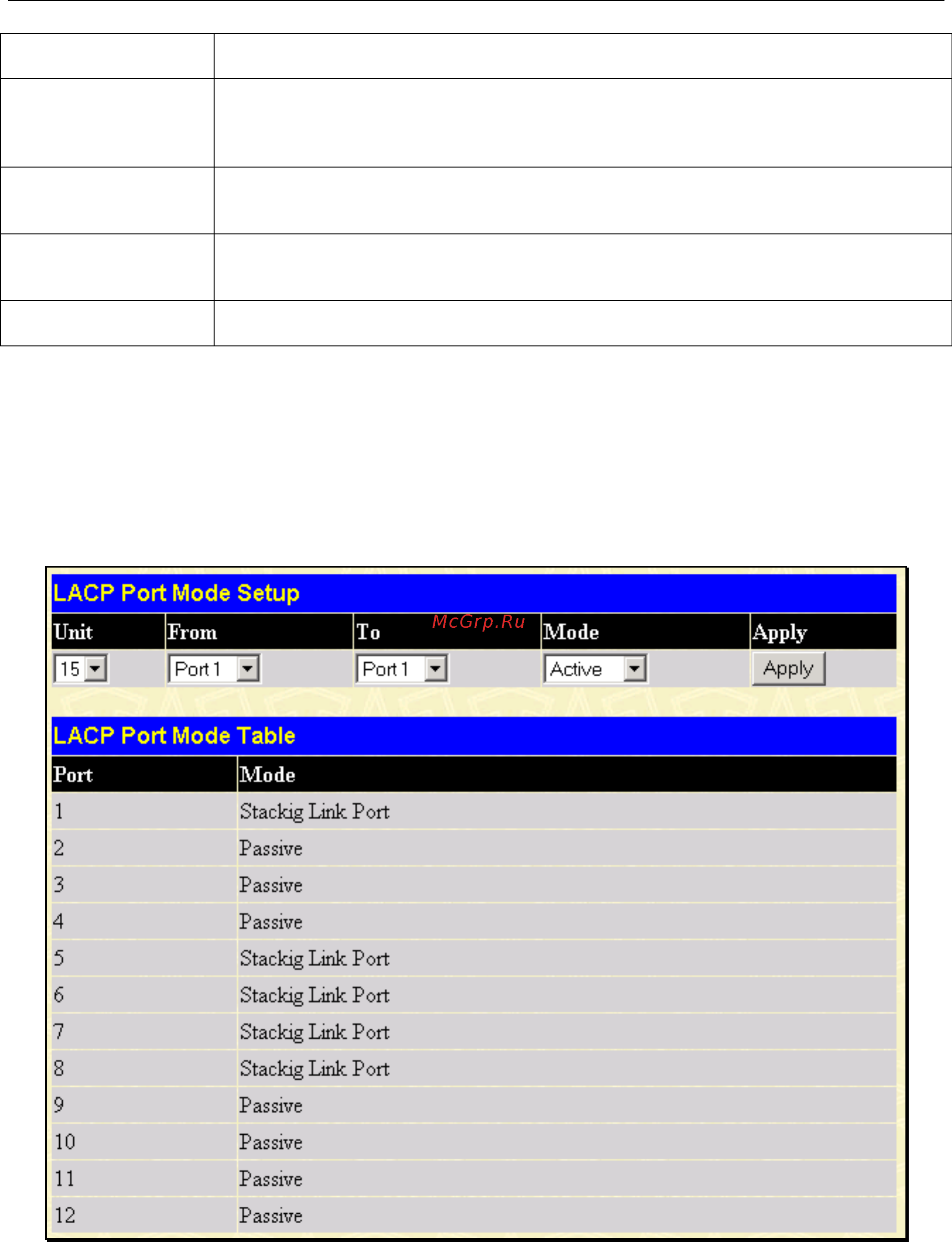

Figure 4- 11. LACP Port Mode Table window
r may set the follo
51
