DGS-3312SR Stackable Gigabit Layer 3 Switch
MAC Notification Port Settings
Enable or disable MAC notification for ports with the window below.

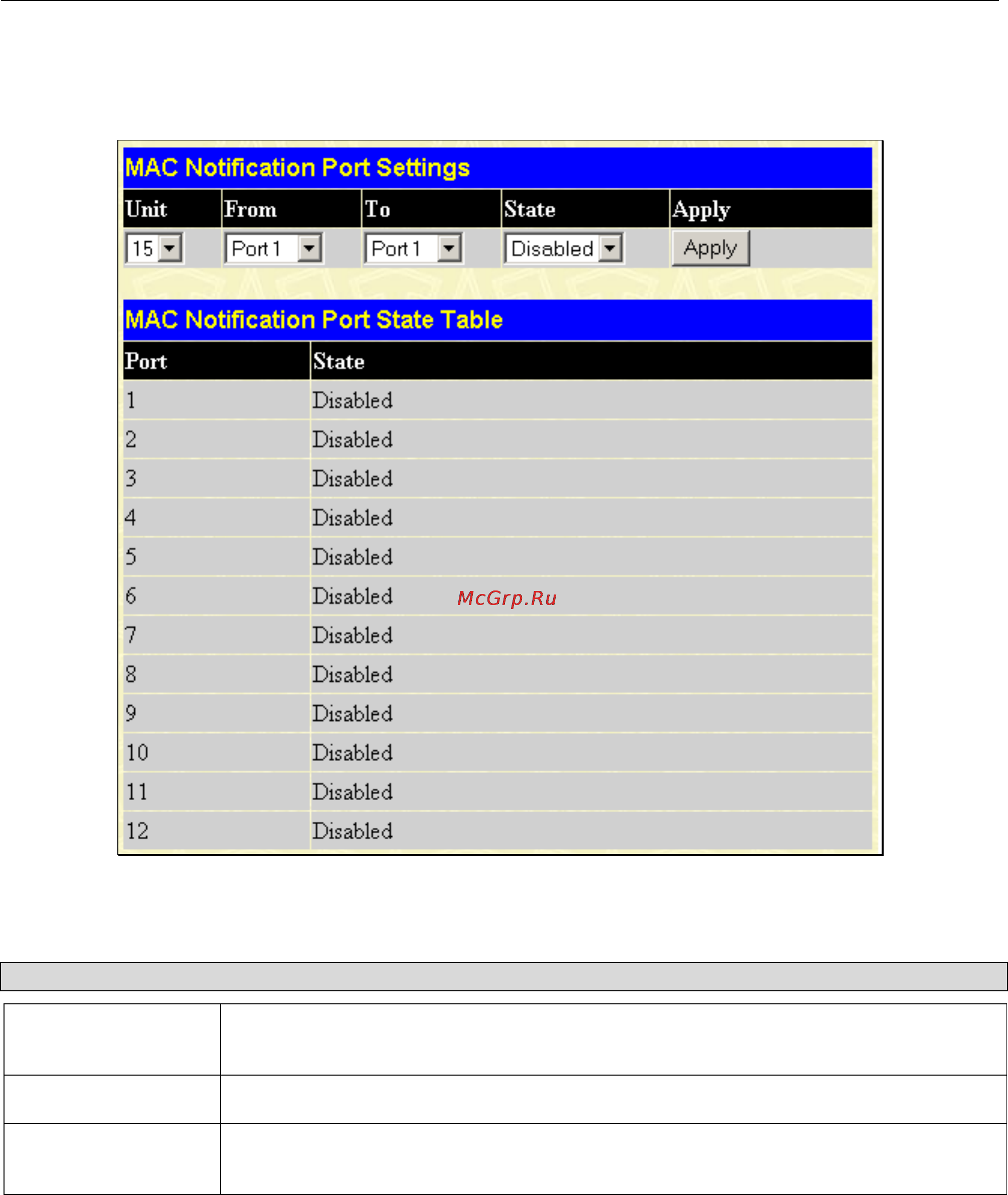

Figure 4- 64. MAC Notification Port Settings window
The following parameters can be set:
Parameter Description
Unit
Allows you to specify a Switch in a Switch stack using that Switch’s Unit ID. 15
ind
icates the DGS-3312SR.
From/To
A consecutive group of ports may be configured starting with the selected port.
State
This pull-down menu allows you to enable or disable MAC notification for the specified
Switch and group of ports.
Click Apply to implement changes made.
