DGS-3312SR Stackable Gigabit Layer 3 Switch

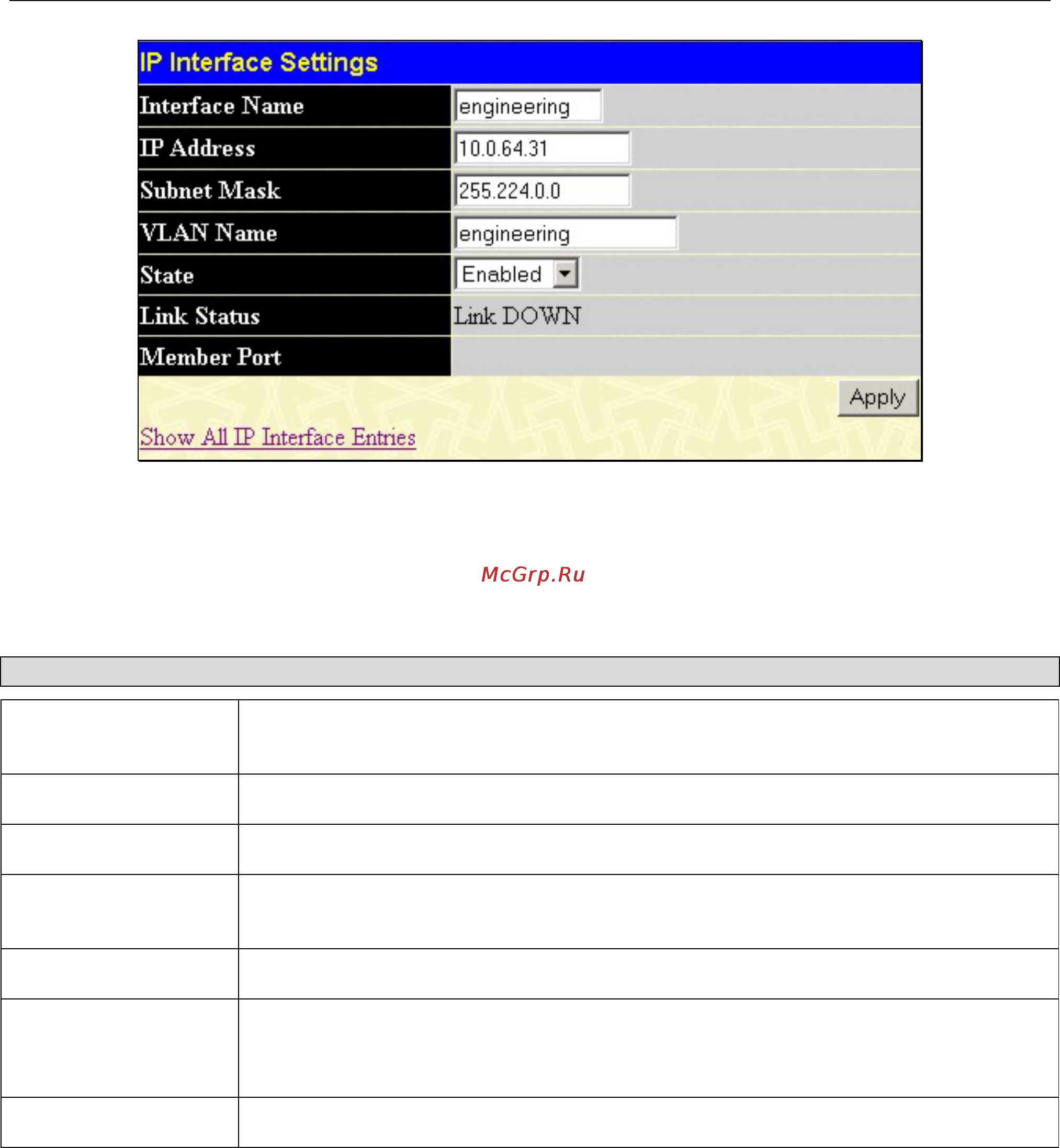

Figure 5- 4. Example IP Interface Settings window

Choose a name for the interface to add and enter it in the Interface Name field (if you are editing an IP Interface, the

Interface Name will already be in the top field as seen in the window above). Enter the interface’s IP address and subnet

mask in the corresponding fields. Pull the State pull-down menu to Enabled and click Apply to enter to make the IP

interface effective. Use Save Changes in the Maintenance folder to enter the changes into NV-RAM.

The following fields can be set:

Parameter Description

Interface Name

This field displays the name for the IP interface. The default IP interface is named

“System”.

IP Address

Enter an IP address to be assigned to this IP interface.

Subnet Mask

Enter a subnet mask to be applied to this IP interface.

VLAN Name

Enter the VLAN Name for the VLAN to which the IP interface belongs. The VLAN

name must match the existing VLAN name previously configured.

State

Select Enabled or Disabled to activate or deactivate the interface.

Link Status

This read only field states the current status of the IP Interface on the Switch. Link Up

denotes that the IP interface is up and running on the Switch. Link Down will denote

that the IP interface is not currently set and/or enabled on the Switch.

Member Port

Specifies which ports on the Switch are a member of this VLAN.
