DGS-3312SR Stackable Gigabit Layer 3 Switch
e Access Profile Configuration window for IP: The page shown below is th

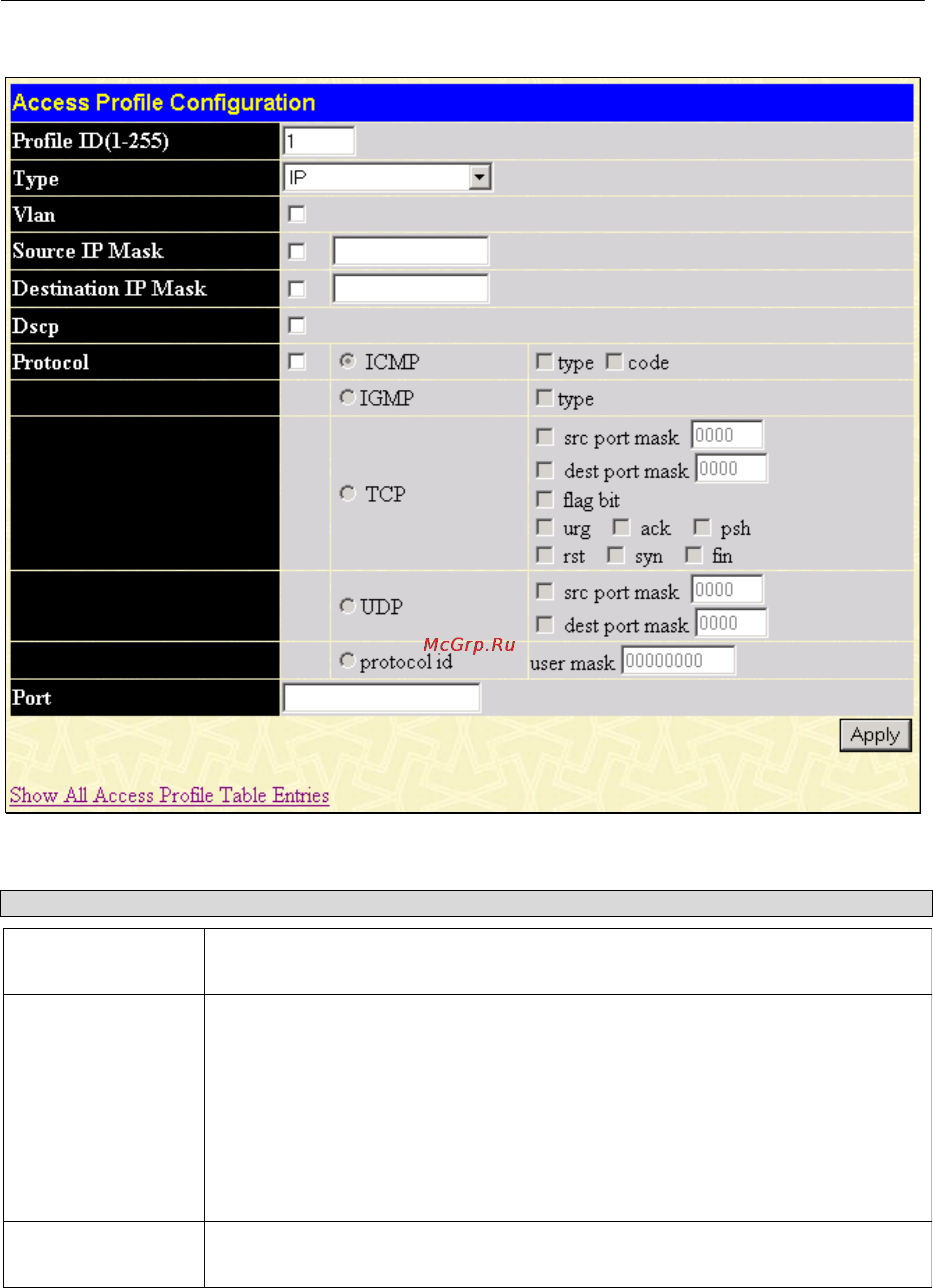

Figure 4- 74. Access Profile Configuration (IP) window
The following parameters can be set:
Parameter Description
Profile ID (1-255)
Type in a unique identifier number for this profile set. This value can be set from 1 to
255.
Type
Select profile based on Ethernet (MAC Address), IP address, packet content mask or
IPv6. This will change the menu according to the requirements for the type of profile.
• Select Ethernet to instruct the Switch to examine the layer 2 part of each
packet header.
• Select IP to instruct the Switch to examine the IP address in each frame's
header.
• Select Packet Content Mask to specify a mask to hide the content of the
packet header.
VLAN
Selecting this option instructs the Switch to examine the VLAN part of each packet
header and use this as the, or part of the criterion for forwarding.
111
