DGS-3312SR Stackable Gigabit Layer 3 Switch
Configure the Access Rule Configuration settings for Ethernet on the window below.

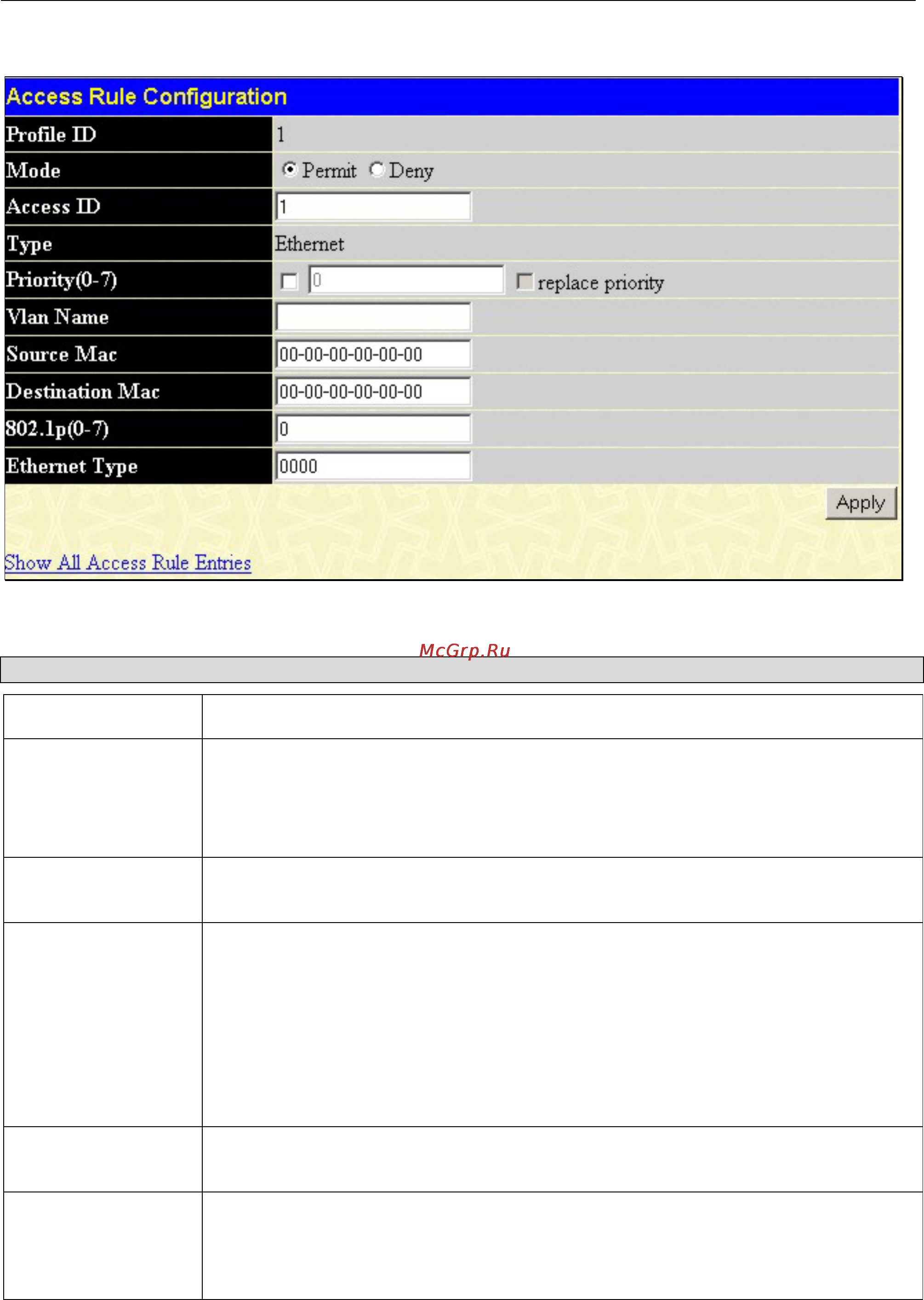

Figure 4- 77. Access Rule Configuration (Ethernet) window
The following parameters can be set:
Parameter Description
Profile ID
This is the identifier number for this profile set.
Mode
Select Permit to specify that the packets that match the access profile are forwarded
by the Switch, according to any additional rule added (see below).
Select Deny to specify that packets that do not match the access profile are not
forwarded by the Switch and will be filtered.
Access ID
Type in a unique identifier number for this access. This value can be set from 1 to
255.
Type
Selected profile based on Ethernet (MAC Address), IP address or packet content
mask. This will change the menu according to the requirements for the type of profile.
• Ethernet instructs the Switch to examine the layer 2 part of each packet
• IP instructs the Switch to examine the IP address in each frame’s header.
ket
eader.
header.
• Packet Content Mask specifies a mask to hide the content of the pac
h
Priority (0-7)
t will be identified by the Specify the priority tag, located in the packet header tha
Switch.
Replace Prio
7)
rity (0-
witch that match
this priority are forwarded to the CoS queue specified previously by the user.
This parameter is specified if you want to re-write the 802.1p default priority previously
set in the Switch, which is used to determine the CoS queue to which packets are
forwarded to. Once this field is specified, packets accepted by the S
115
