DGS-3312SR Stackable Gigabit Layer 3 Switch

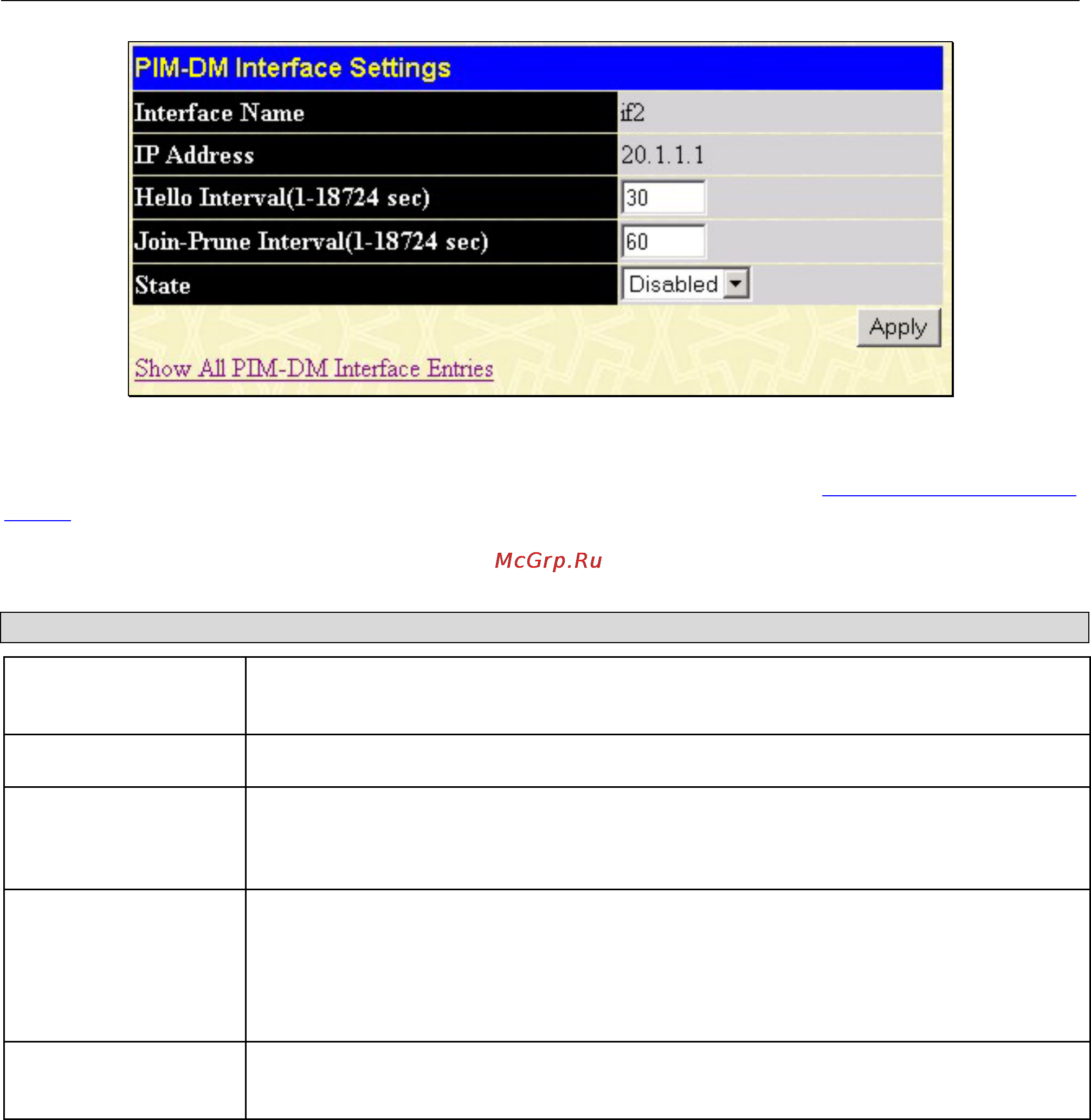

Figure 5- 56. 2
nd
PIM-DM Interface Settings window - Modify
Configure PIM-DM settings for each IP interface and click on the Apply button to apply the new or changed settings. The
new values will appear in the PIM-DM Interface Settings window. To view the table click
Show All PIM-DM Interface
Entries.
The table below describes the parameters necessary for PIM-DM configuration.
Configure these parameters for PIM-DM interfaces:
Parameter Description
Interface Name
Allows the entry of the name of the IP interface for which PIM-DM is to be configured.
This must be a previously defined IP interface.
IP Address
Displays the IP address for the IP interface named above.
Hello Interval (1-
18724)
This field allows an entry of between 1 and 18724 seconds and determines the
interval between sending Hello packets to other routers on the network. The default is
30 seconds.
Join/Prune Interval
(1-18724)
This field allows an entry of between 1 and 18724 seconds. This interval also
determines the time interval the router uses to automatically remove prune
information from a branch of a multicast delivery tree and begin to flood multicast
messages to all branches of that delivery tree. These two actions are equivalent. The
default is 60 seconds.
State
This field can be toggled between Enabled and Disabled using the pull-down menu,
and is used to enable or disable PIM-DM for the IP interface. The default is Disabled.
174
