DGS-3312SR Stackable Gigabit Layer 3 Switch

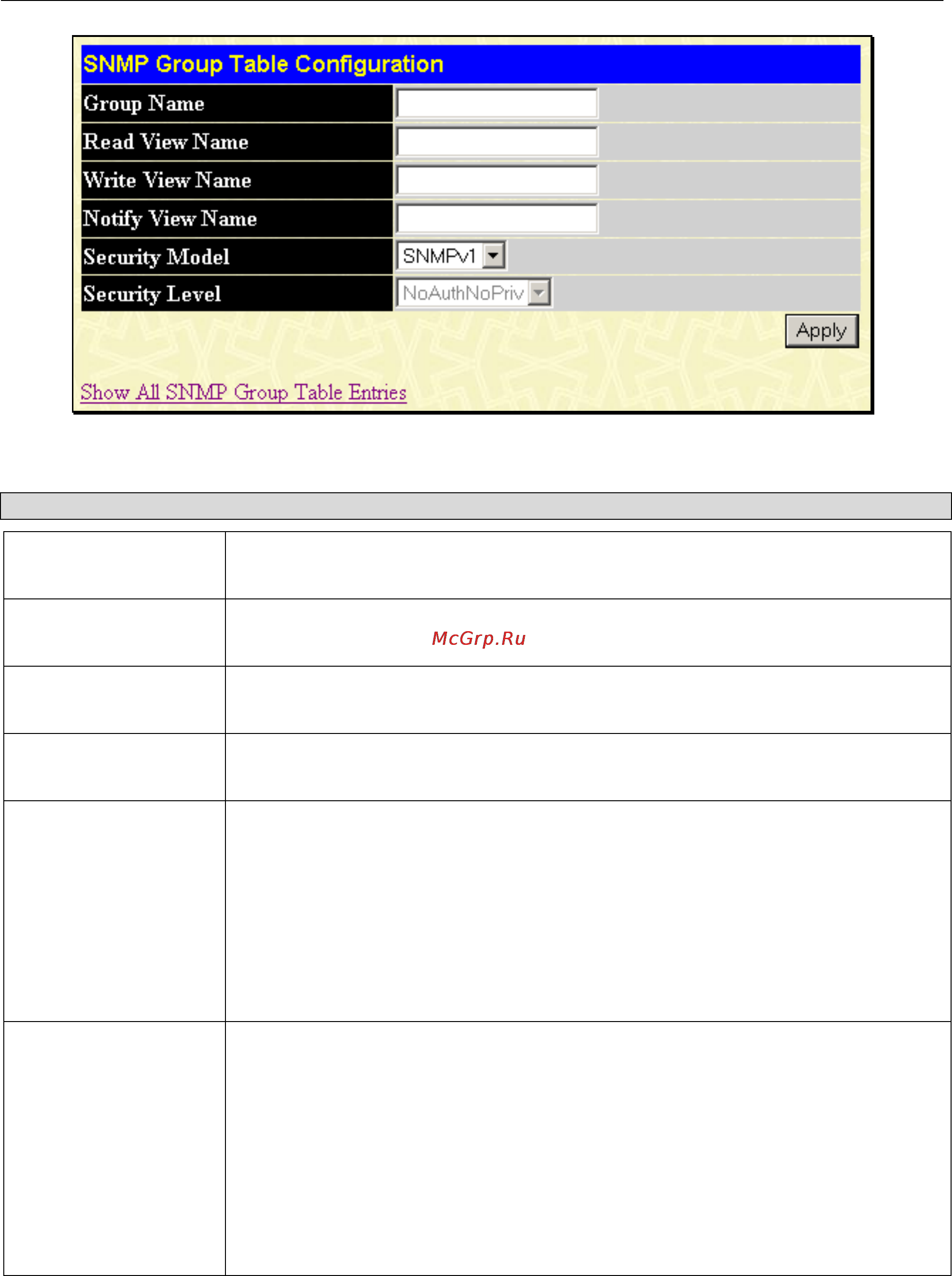

Figure 7- 12. SNMP Group Table Configuration window
The following parameters can be set:
Parameter Description
Group Name
Type an alphanumeric string of up to 32 characters. This is used to identify the new
SNMP group of SNMP users.
Read View Name
This name is used to specify the SNMP group created can request SNMP mes-
sages.
Write View Name
Specify a SNMP group name for users that are allowed SNMP write privileges to
the Sw
itch's SNMP agent.
Notify View Name
Specify a SNMP group name for users that can receive SNMP trap messages
generated by the Switch's SNMP agent.
Security Model
SNMPv1 - Specifies that SNMP version 1 will be used.
SNMPv2 - Specifies that SNMP version 2c will be used. The SNMPv2 supports both
centralized and distributed network management strategies. It includes
improvements in the Structure of Management Information (SMI) and adds some
security features.
SNMPv3 - Specifies that the SNMP version 3 will be used. SNMPv3 provides
secure access to devices through a combination of authentication and encrypting
packets over the network.
Security Level
The Security Level settings only apply to SNMPv3.
• NoAuthNoPriv - Specifies that there will be no authorization and no
encryption of packets sent between the Switch and a remote SNMP
manager.
• AuthNoPriv - Specifies that authorization will be required, but there will be
no encryption of packets sent between the Switch and a remote SNMP
manager.
• AuthPriv - Specifies that authorization will be required, and that packets
sent between the Switch and a remote SNMP manger will be encrypted.
Click Apply to implement changes made.
205
