DGS-3312SR Stackable Gigabit Layer 3 Switch

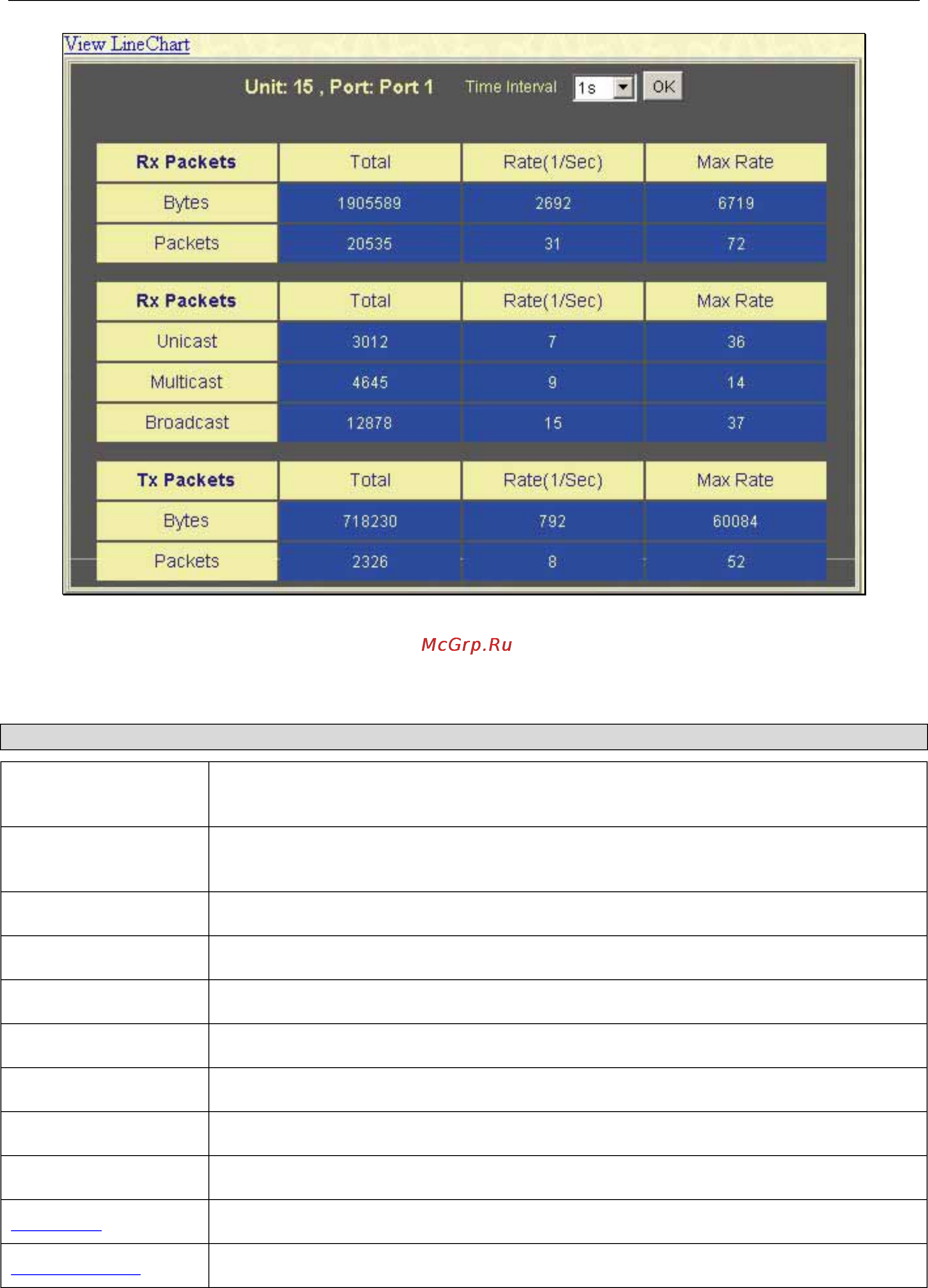

Figure 8- 7. Rx Packets Analysis (table for Bytes & Packets) window
Select the desired Switch using the Unit drop-down menu and the desired port using the Port drop-down menu. The Time
Interval field sets the interval at which the error statistics are updated.
The following field can be set:
Parameter Description
Time Interval [1s ]
Sele
defa
ct the desired setting between 1s and 60s, where "s" stands for seconds. The
ult value is one second.
Record Number [200]
r of times the Switch will be polled between 20 and 200. The default Select numbe
value is 200.
Bytes
Counts the number of bytes received on the port.
Packets
Counts the number of packets received on the port.
Unicast
Counts the total number of good packets that were received by a unicast address.
Multicast
Counts the total number of good packets that were received by a multicast address.
Broadcast
Counts the total number of good packets that were received by a broadcast address.
Show/Hide
Check whether to display Bytes and Packets.
Clear
Clicking this button clears all statistics counters on this window.
View Table Clicking this button instructs the Switch to display a table rather than a line graph.
View Line Chart Clicking this button instructs the Switch to display a line graph rather than a table.
216
