DGS-3312SR Stackable Gigabit Layer 3 Switch

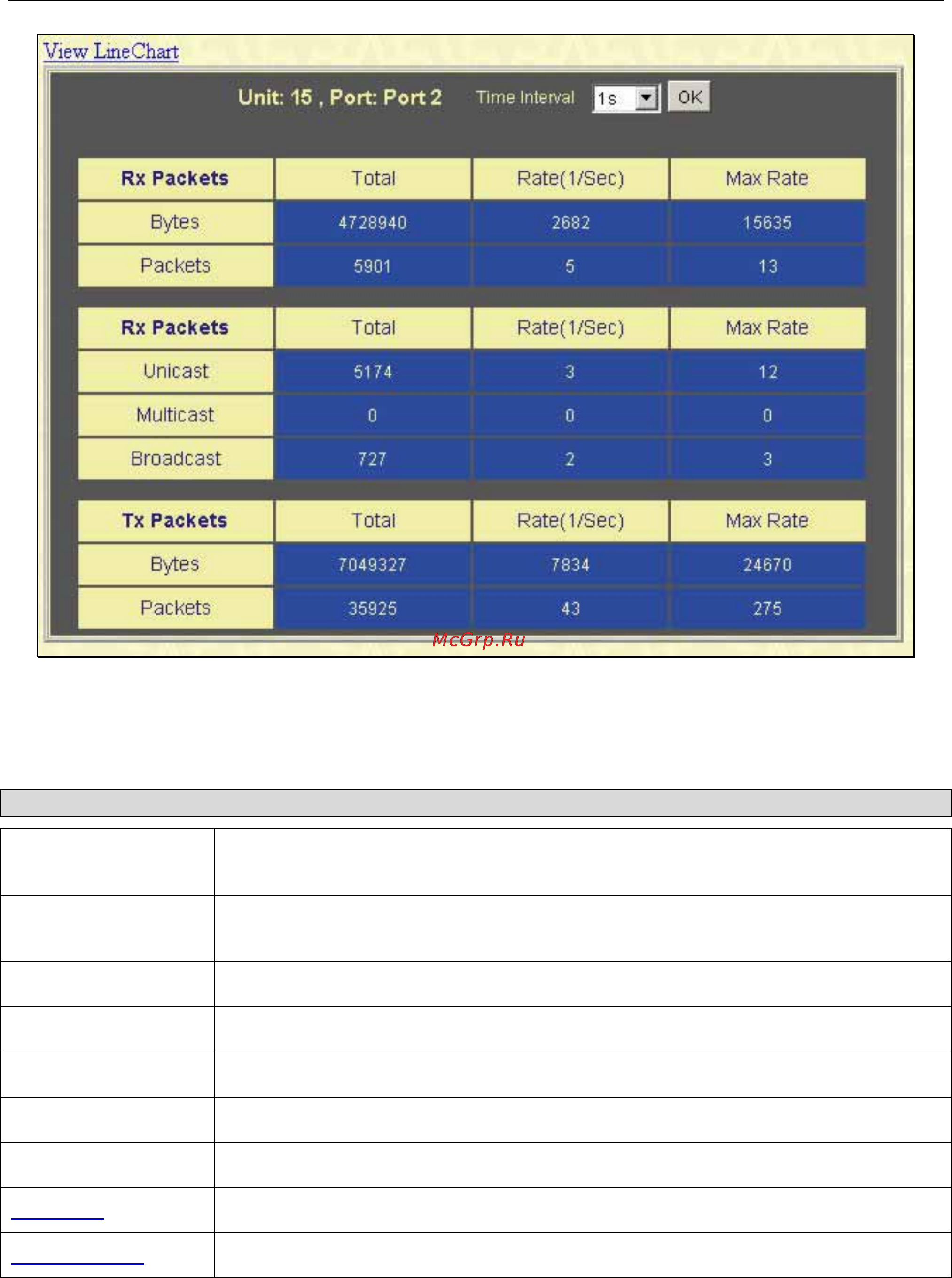

Figure 8- 9. Rx Packets Analysis (table for Unicast, Multicast, & Broadcast) window
Select the desired Switch using the Unit drop-down menu and the desired port using the Port drop-down menu. The Time
Interval field sets the interval at which the error statistics are updated.
The following fields can be set:
Parameter Description
Time Interval [1s]
Sel s" stands for seconds. The ect the desired setting between 1s and 60s, where "
default value is one second.
Record Number [200]
Sel
value is 200.
ect number of times the Switch will be polled between 20 and 200. The default
Unicast
Counts the total number of good packets that were received by a unicast address.
Multicast
Counts the total number of good packets that were received by a multicast address.
Counts the total number of good packets that were received by a broadcast address.
Broadcast
w/Hide
Check whether or not to display Multicast, Broadcast, and Unicast Packets.
Sho
Clear
Clicking this button clears all statistics counters on this window.
View Table Clicking this button instructs the Switch to display a table rather than a line graph.
View Line Chart Clicking this button instructs the Switch to display a line graph rather than a table.
218
