DGS-3312SR Stackable Gigabit Layer 3 Switch

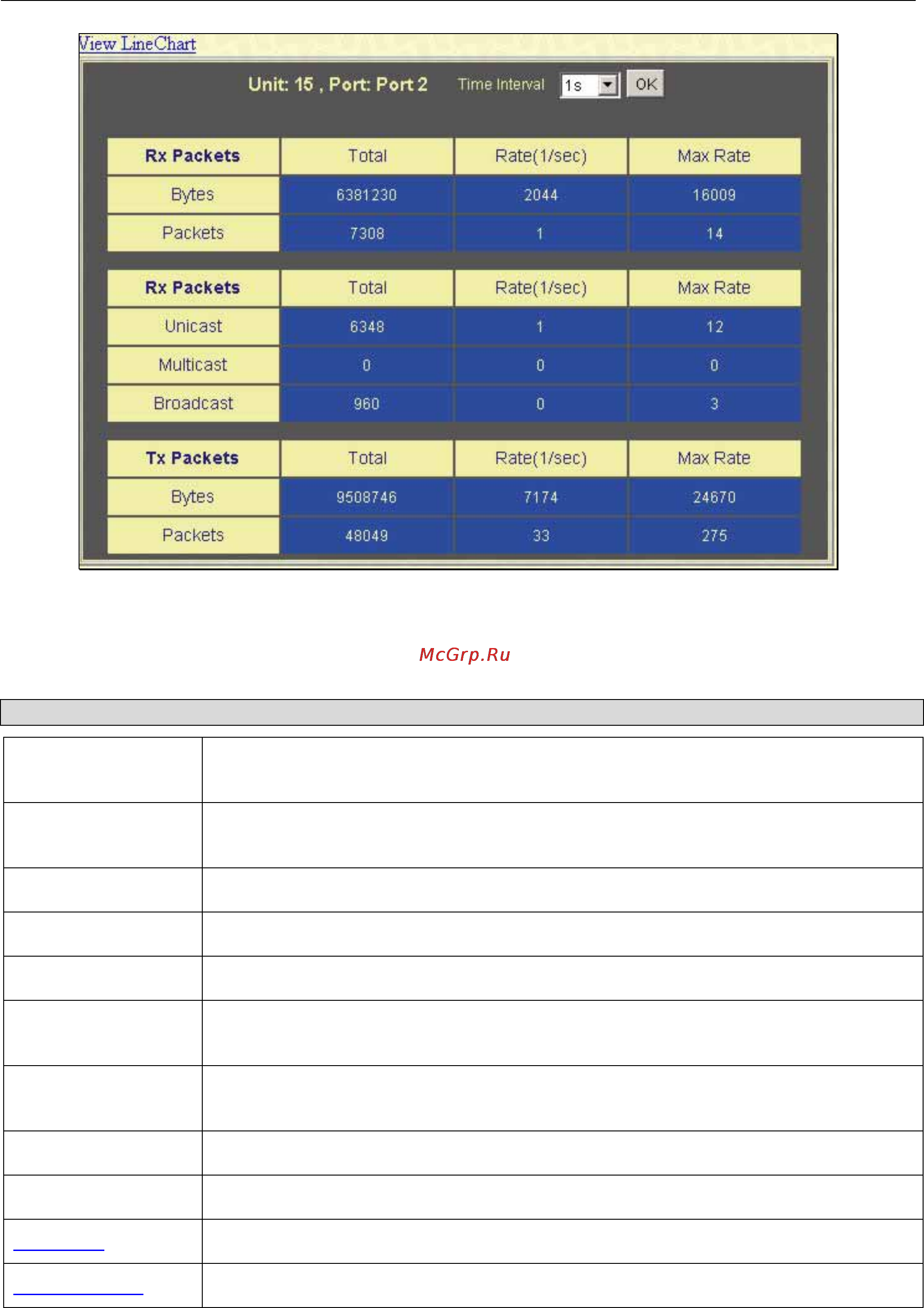

Figure ckets) window
Select the desired Switch usi Time
Interval field sets the interv
T owing fields can be
8- 11. Tx Packets Analysis (table for Bytes & Pa
ng the Unit drop-down menu and the desired port using the Port drop-down menu. The
al at which the error statistics are updated.
he foll set or are displayed:
Parameter Description
Time Interval [1s]
and 60s, where "s" stands for seconds. The Select the desired setting between 1s
default value is one second.
Record Number
[200]
Select number of times the Switch will be polled between 20 and 200. The default
value is 200.
Bytes
Counts the number of bytes successfully sent from the port.
Counts the number of packets successfully sent on the port.
Packets
Unicast
Counts the total number of good packets that were transmitted by a unicast address.
Multicast
Counts the total number of good packets that were transmitted by a multicast
address.
Broadcast
Counts the total number of good packets that were transmitted by a broadcast
address.
Show/Hide
Check whether or not to display Bytes and Packets.
Clear
Clicking this button clears all statistics counters on this window.
View Table Clicking this button instructs the Switch to display a table rather than a line graph.
View Line Chart Clicking this button instructs the Switch to display a line graph rather than a table.
220
