DGS-3312SR Stackable Gigabit Layer 3 Switch
Click Apply to implement changes made.
To configure the parameters for a previously set MSTI, click on its hyperlinked MSTI ID number, which will reveal the
following screen for configuration.

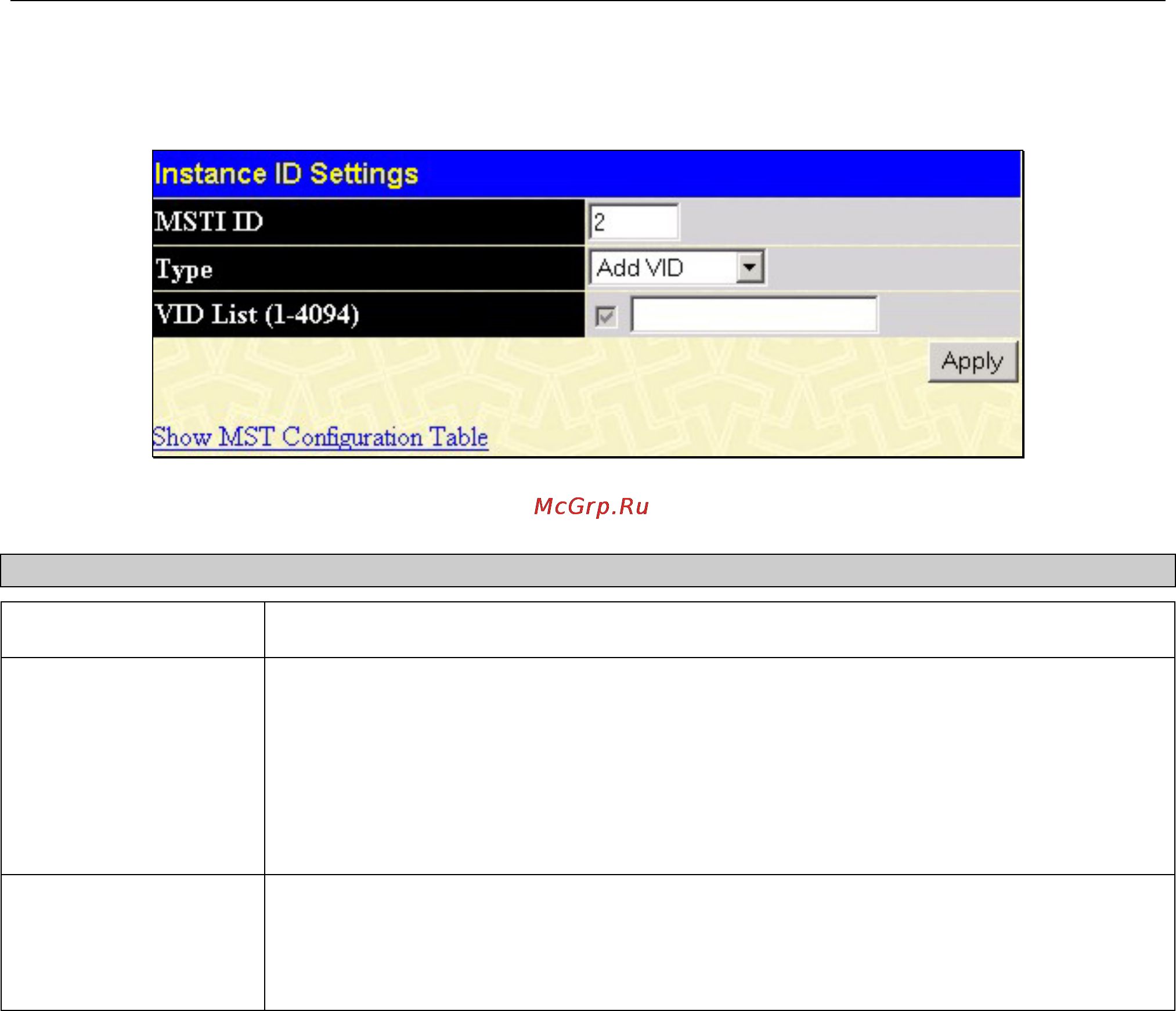

Figure 4- 38. Instance ID Settings window - Modify
The user may configure the following parameters for a MSTI on the Switch.
Parameter Description
MSTI ID
Displays the MSTI ID previously set by the user.
Type
This field allows the user to choose a desired method for altering the MSTI settings.
The user has 2 choices.
ction
ID - Select this parameter to remove VIDs from the MSTI ID, in
tion with the VID List parameter.
• Add VID - Select this parameter to add VIDs to the MSTI ID, in conjun
with the VID List parameter.
• Remove V
conjunc
VID List (1-4094)
or
This field is used to specify the VID range from configured VLANs set on the Switch
that the user wishes to add to this MSTI ID. Supported VIDs on the Switch range from
ID number 1 to 4094. This parameter can only be utilized if the Type chosen is Add
Remove.
C t click Apply to implemen hanges made.
77
