4-2-3
USB Connector Specifications
The Industrial Box PC includes four USB connectors. Two connectors provide version 2.0 perform-
ance and two connectors provide version 3.0 performance. Details of the USB interface connectors
are provided below
.
1
2
3
4

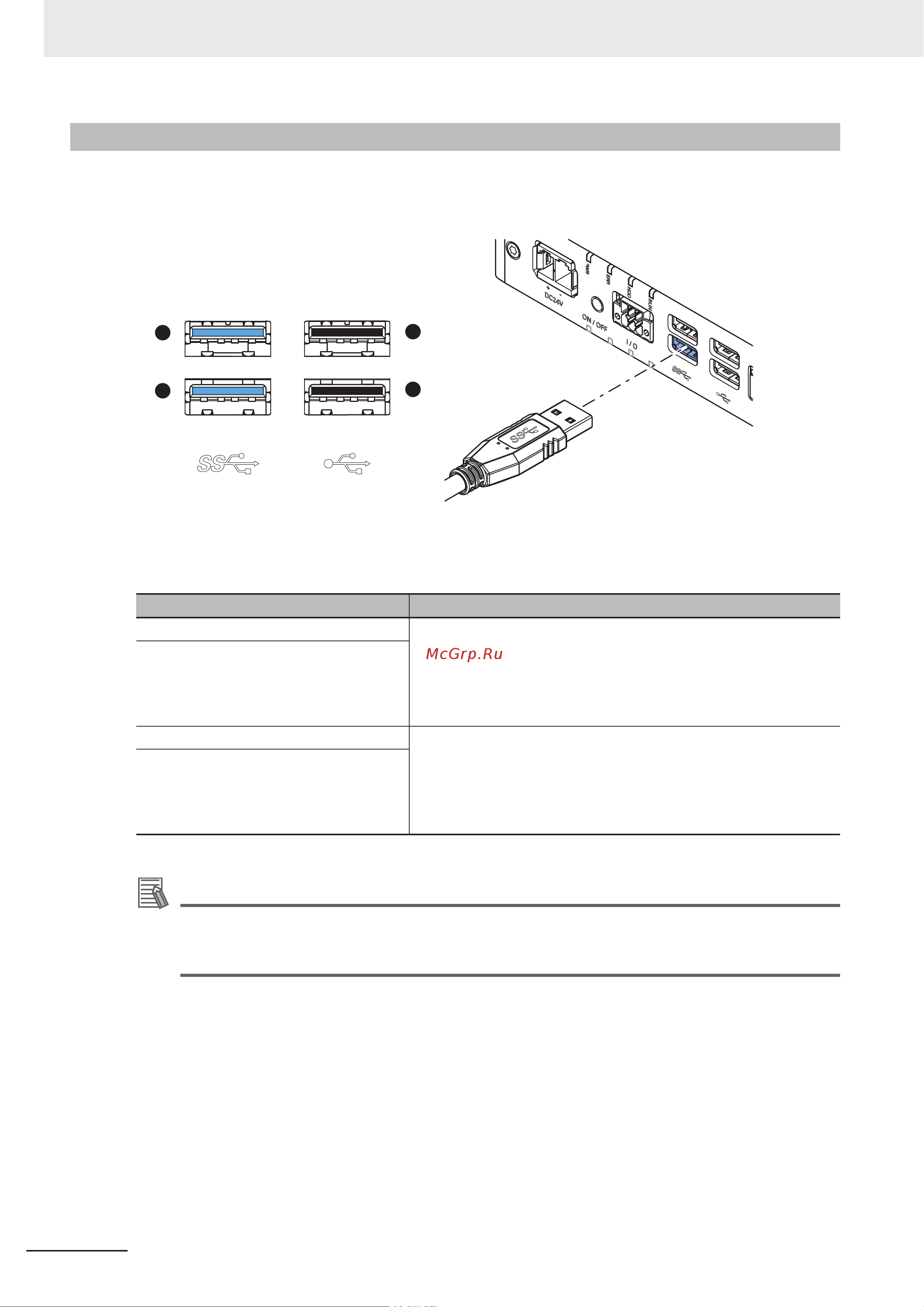

The connector layout represents the USB connectors on the Box PC.
Interface Connector Details per Connector
1
• USB 3.0
• 900 mA maximum current at 5 VDC
equals 4.5 W maximum power consumption
*1
• 3 m maximum cable length
• Blue color
2
3
• USB 2.0
• 500 mA maximum current at 5 VDC
equals 2.5 W maximum power consumption
*1
• 5 m maximum cable length
• Black color
4
*1. The total power consumption for the USB Connectors is 14 W max. (2 x 4.5 + 2 x 2.5)
Additional Information
• Refer to 5-4-2 Ground on page 5-29 for grounding details.
•
Note that the read/write speed of the connected USB device determines the actual data
transfer speed. Use a fast USB device to reduce data transfer durations.
4 Specifications
4-24
NY-series Industrial Box PC Hardware User's Manual (W553)
