Omron NYB1E-C13C6 [52/276] Hardware

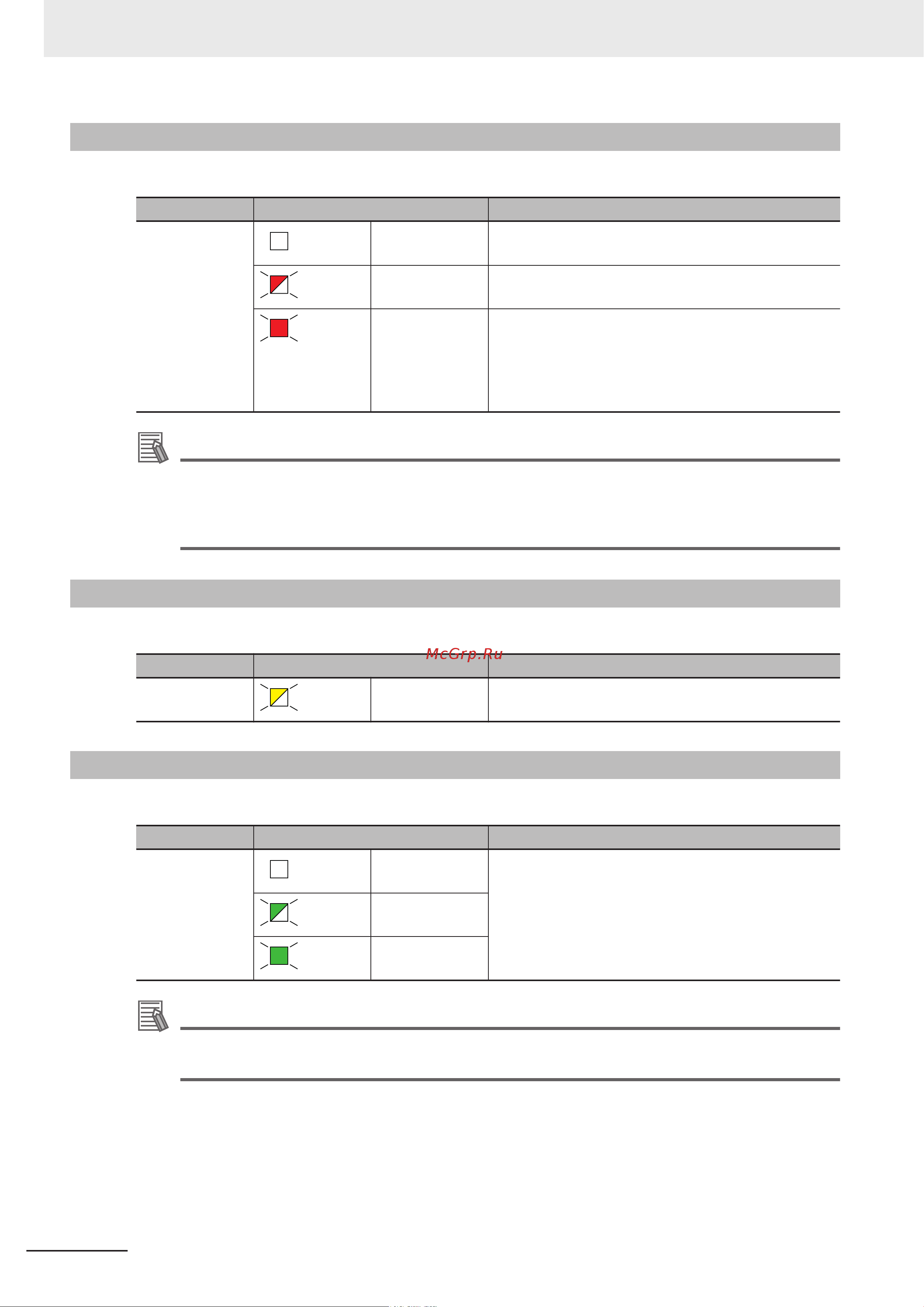

![Omron NYB1E-D13C1 [52/276] Hardware](/views2/1872506/page52/bg34.png)
3-2-2
ERR LED Indicator
The Error LED (ERR) indicates the presence and type of an error within the Industrial Box PC.
Color Status Meaning
Red Not lit
• The 24 VDC power is not supplied
• No error is present
Blinking
•
Fan Error
•
Battery low
Lit
•
Thermal shutdown
•
Watchdog Error
•
Power Supply undervoltage error
•
Power Supply overvoltage error
• Power supply defective
Additional Information
• The status of this LED can also be defined by users using the Industrial PC System API.
Refer to NY-series Operating Systems and Software Utilities Manual (Cat. No. W616) for In-
dustrial PC System API for API details.
• Refer to
7-2 Corrective Maintenance on page 7-4 for actions to solve errors.
3-2-3
HDD LED Indicator
The Hard Disk Drive LED (HDD) indicates activity of the storage device.
Color Status Meaning
Yellow Flickering The storage device is active.
3-2-4
RUN LED Indicator
The RUN LED is available for user applications.
Color Status Meaning
Green Not lit User-defined.
The status can be defined in a user program using the
Industrial PC System API.
Blinking
Lit
Additional Information
Refer to NY-series Operating Systems and Software Utilities Manual (Cat. No. W616) for Indus-
trial PC System API for API details.
3 Hardware
3-8
NY-series Industrial Box PC Hardware User's Manual (W553)
