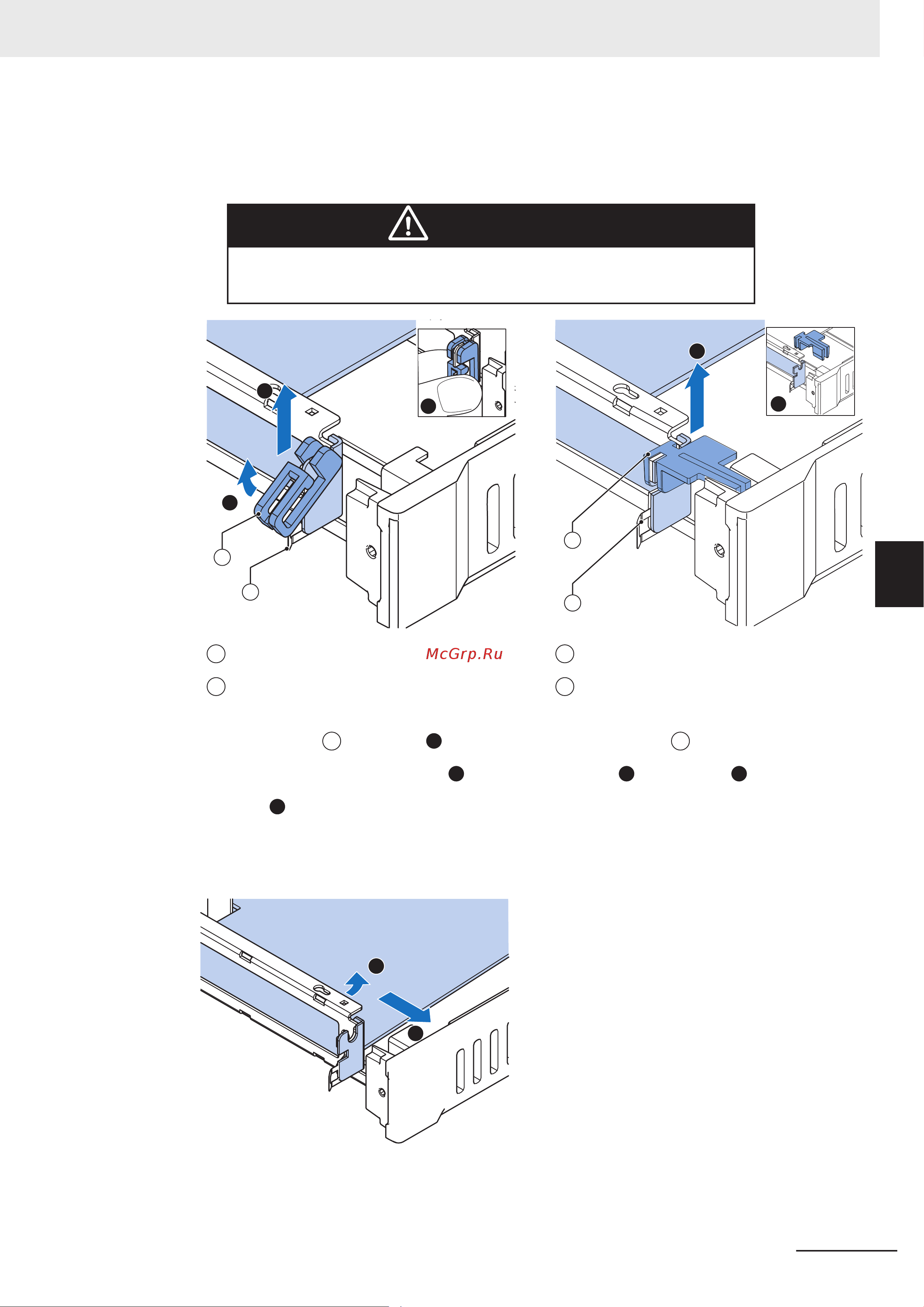

3 Remove the Card Clip from the PCIe Drawer.
There are two types of Card Clips available. Use the steps applicable to your type.
CAUTION
When installing or removing a PCIe card, avoid touching the sharp edges
of the sheet metal frame tab. Injury may result.
3
2
1
B
A
1
2
A
B
A
Card Clip
B
Sheet metal frame tab
Grip the Card Clip
A
on the sides
1
. Pull
the middle of the Card Clip to unlock it
2
and
remove it
3
from the PCIe Drawer.
A
Card Clip
B
Sheet metal frame tab
Grip the Card Clip
A
on the sides. Lift the
Card Clip
1
and remove it
2
from the PCIe
Drawer.
4 Remove the slot cover from the PCIe Drawer.
The thin sheet metal frame should stay in the PCIe Drawer
.
2
1
The slot cover is now removed.
5 Installation
5-11
NY-series Industrial Box PC Hardware User's Manual (W553)
5-2 Install Options
5
5-2-3 Install the PCIe Card
