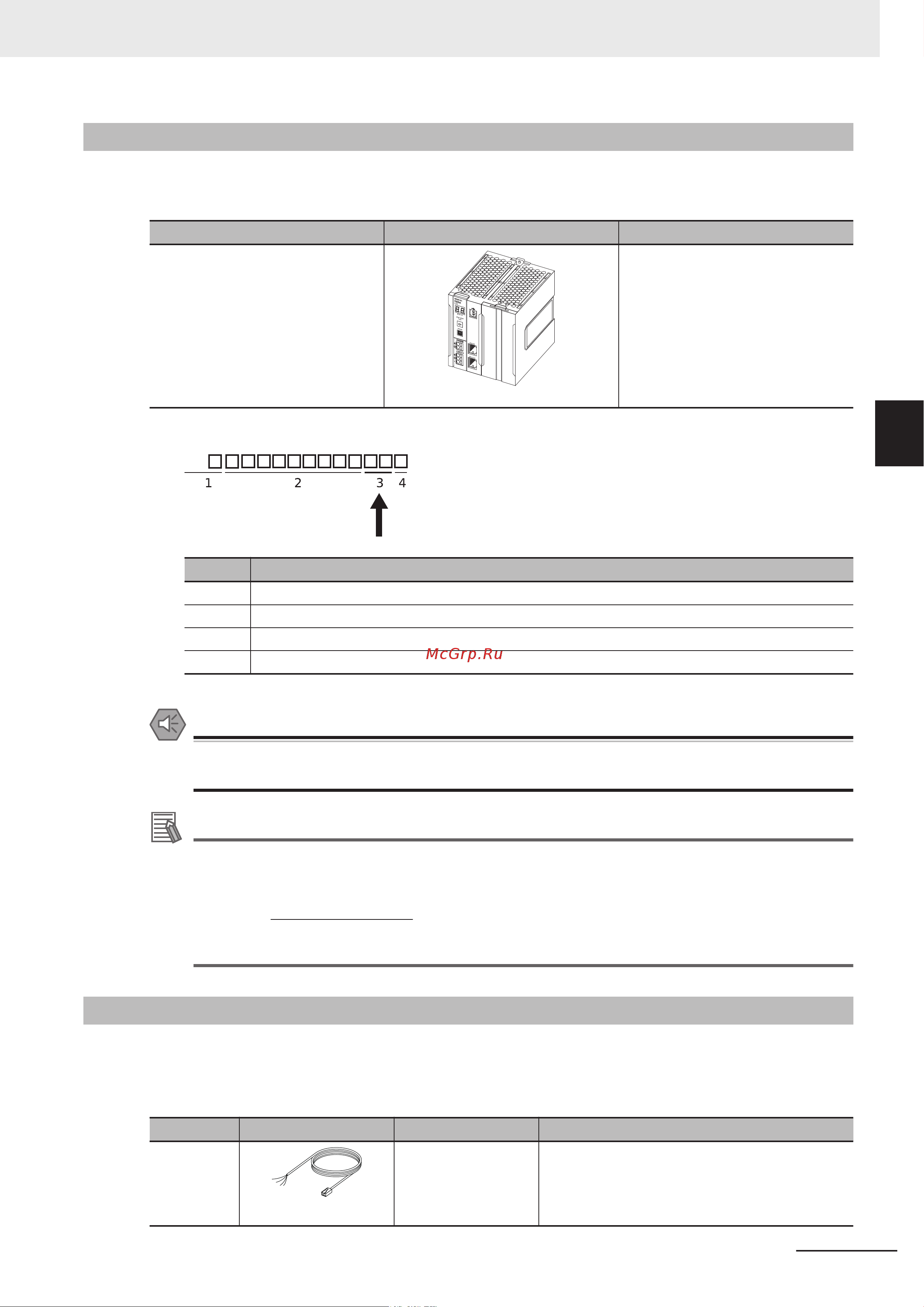

3-10-11

UPS

Details for the recommended UPS are provided below.

OMRON is not responsible for the operation or performance of any other UPS.

Model Appearance Specifications

S8BA with revision number 04 or

higher.

Output voltage during backup oper-

ation: 24 VDC±5%

*1. The revision number of the UPS can be retrieved from the serial number label on the product and the prod-

uct packaging.

Item Description

1 Product code

2 Product period and sequential number

3 Revision number

4 RoHS status

Precautions for Safe Use

Use an Omron S8BA UPS with the correct revision number to prevent improper system shut-

down.

Additional Information

• Refer to 3-10-10 Power Supply on page 3-30 for power supply details.

• Refer to

4-1-3 Power Consumption Specifications on page 4-4 for power consumption de-

tails.

• Refer to

the OMRON website for S8BA specifications or to the UPS S8BA User's Manual

(Cat. No. U702) for the UPS manual.

Note that the power consumption details determine the output current/capacity of your UPS.

3-10-12

UPS Communication Cable

Communication cable details are provided below.

OMRON is not responsible for the operation or performance of any other brand of communication ca-

ble.

Model Appearance Cable length Specifications

S8BW-C02 2 m Signals for

• Signal output (BL, TR, BU, WB)

• Remote ON/OFF input

• UPS Stop Signal input (BS)

3 Hardware

3-31

NY-series Industrial Box PC Hardware User's Manual (W553)

3-10 Optional Hardware

3-10-11 UPS
