Omron NYB1E-C13C6 [122/276] Installation
![Omron NYB1E-D1001 [122/276] Installation](/views2/1872506/page122/bg7a.png)
5-2-2
Install a Drive
A drive is a storage device for the Industrial Box PC.
Additional Information
• Depending on the product configuration 0, 1 or 2 drives can be pre-installed.
Refer to 1-4 Product Configuration Box PC on page 1-5 for details.
• Depending on the CPU type one or two drives are supported.
Refer to
4-1-5 CPU Specifications on page 4-6 for the number of supported drives.
• Refer to 3-10-5 HDD and SSD Storage Devices on page 3-25 for the recommended drive
models.
• Refer to 4-1-7 Storage Device Specifications on page 4-11 for drive specifications.
Prepare the following items:
• The drive
A drive is not supplied with the Box PC.
•
The drive bracket with mounting screws
These are supplied with the Box PC.
To install a drive:
1 Ensure the Box PC is OFF.

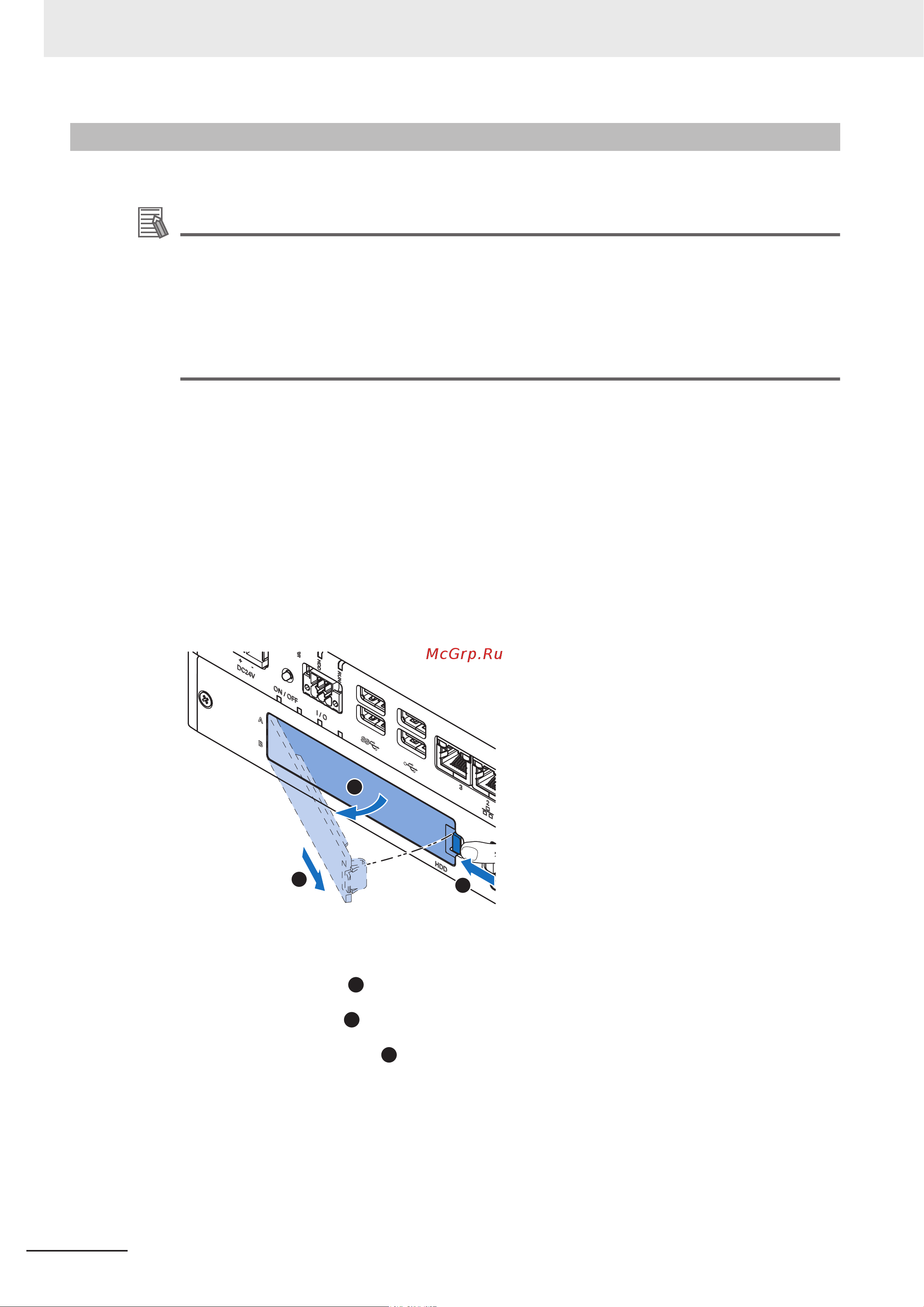

2 Remove the drive cover.
1
3
2
1) Push the lock lever
1
.
2) Tilt the drive cover
2
.
3) Remove the drive cover
3
.
5 Installation
5-6
NY-series Industrial Box PC Hardware User's Manual (W553)
