5-5
Connect
This section describes how to connect the Industrial Box PC.
5-5-1
Connector Identification

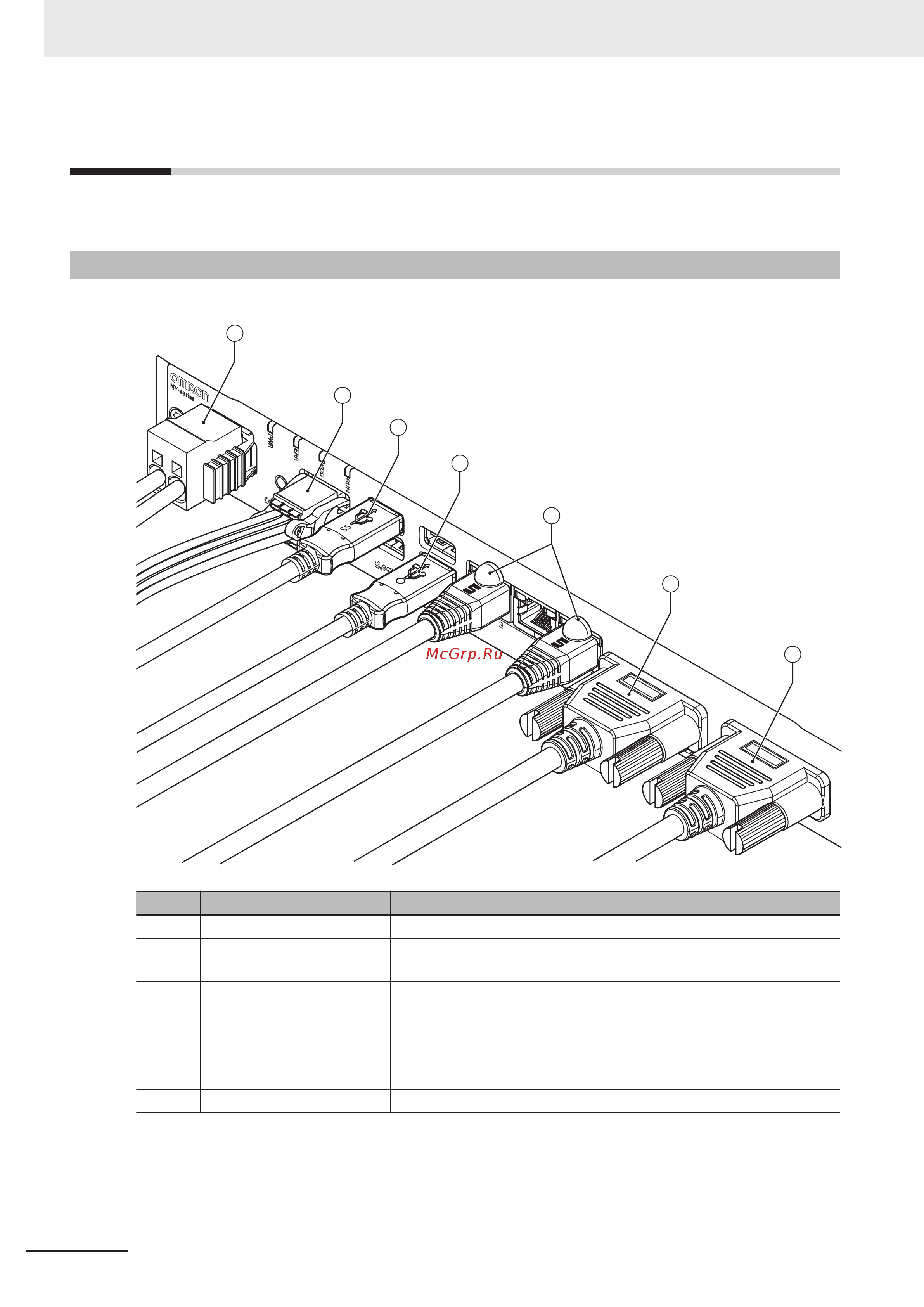

An overview of the connectors of the base layer.
D
E
A
B
C
F
G
Item Name Description
A Power connector Lockable power connector
B I/O connector 2 inputs (UPS signal and power OFF control) and 1 output (power
state)
C USB 3.0 connector 2 USB 3.0 connectors
D USB 2.0 connector 2 USB 2.0 connectors
E 10BASE-T/100BASE-TX/
1000BASE-T Ethernet con-
nectors
3 RJ45 Gb Ethernet connectors
F DVI connector Digital Visual Interface connector
5 Installation
5-42
NY-series Industrial Box PC Hardware User's Manual (W553)
