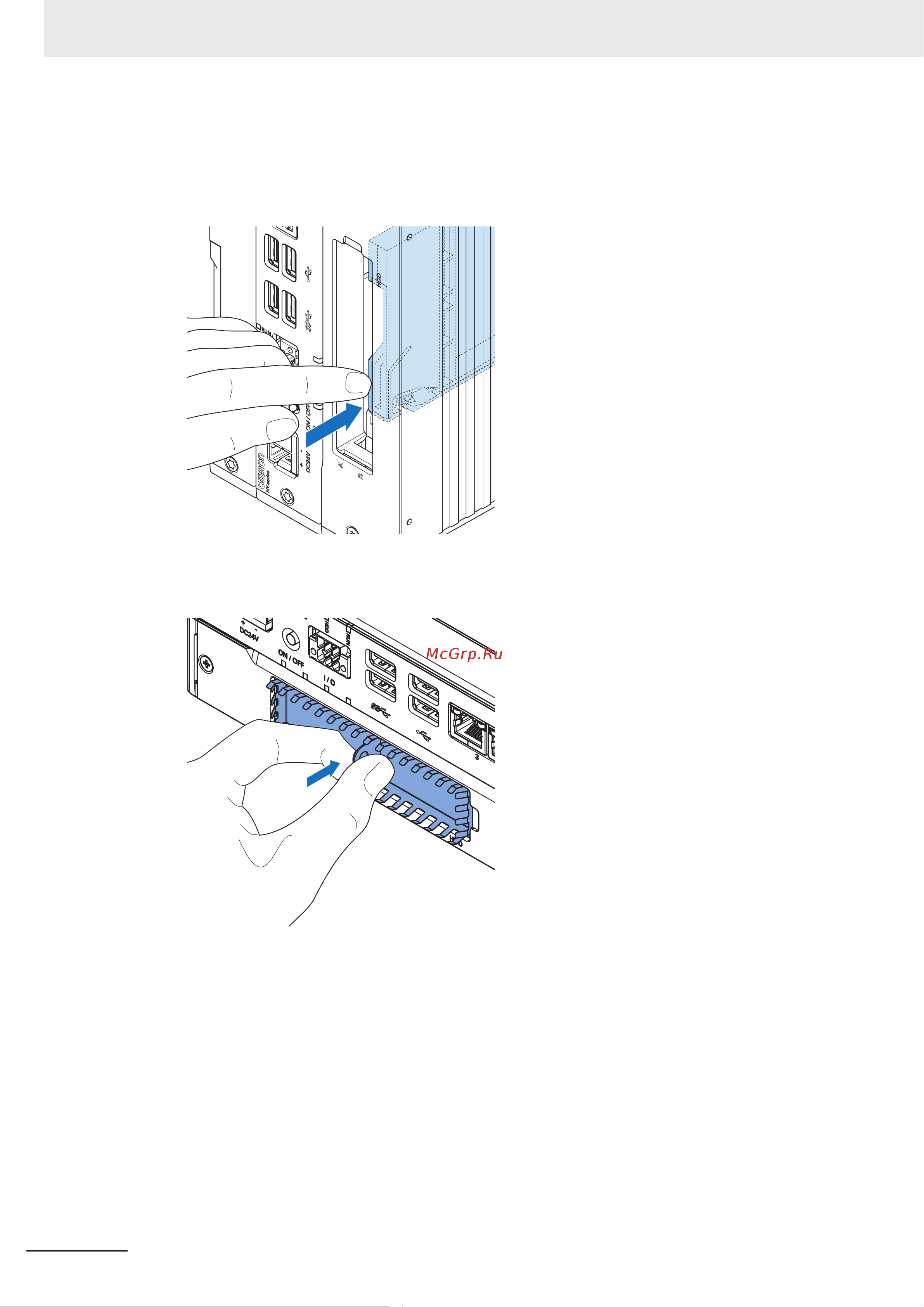

6 Insert the bracket with the drive in the correct bay.
Refer to 3-1-3 Expansion Layer (Optional) on page 3-6 for bay details.
Ensure the bracket is completely in the Box PC with an extra push.
The drive bracket will lock into place when it is fully inserted.
7 Insert the metal shielding cover.
5 Installation
5-8
NY-series Industrial Box PC Hardware User's Manual (W553)
