3-1
Layers and Components

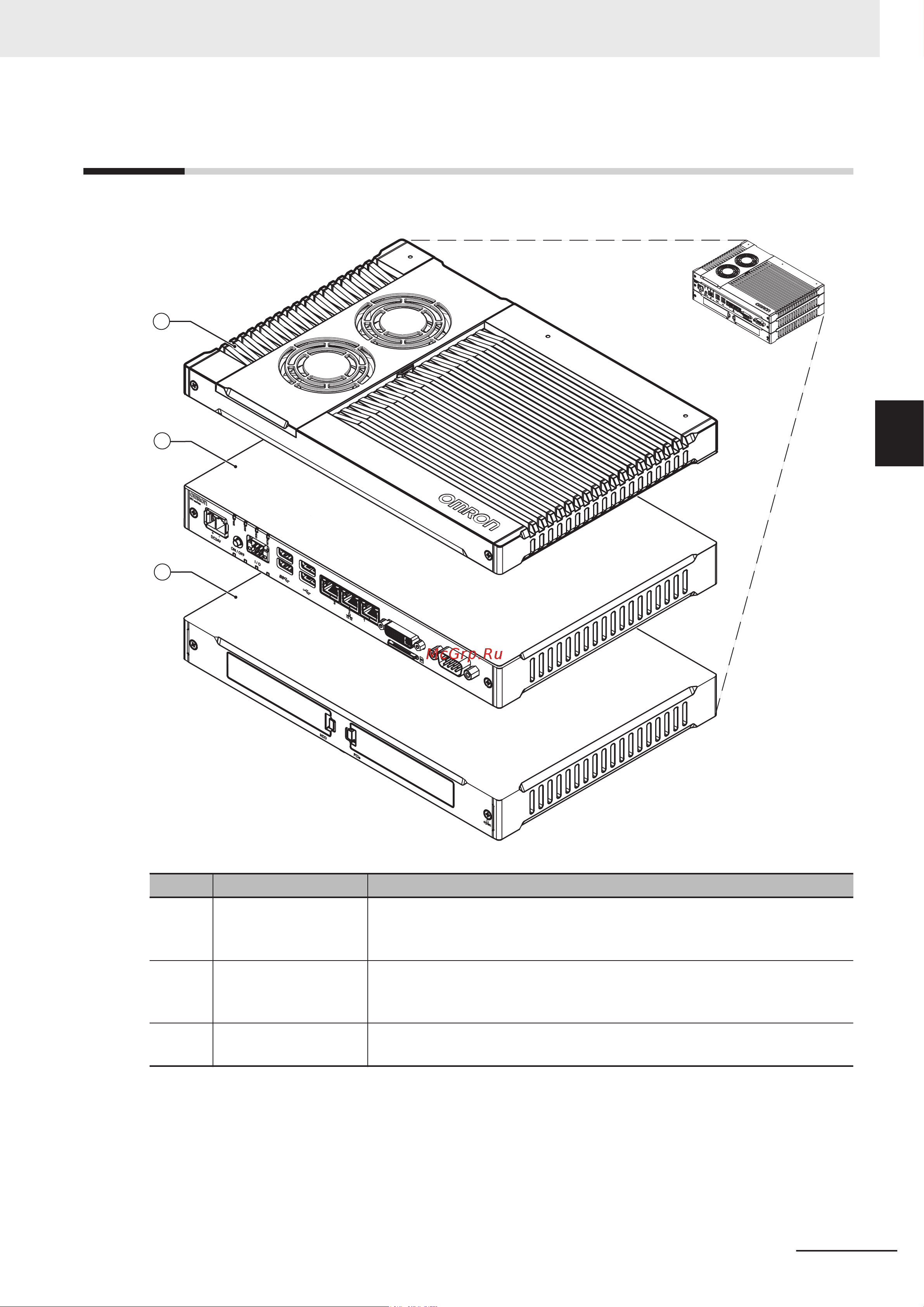

This section shows the layers of the Industrial Box PC.
A
B
C
Item Name Description
A Cooling layer Layer to cool the base layer
Depending on the product configuration fans can be present and the thick-
ness can vary.
B Base layer The layer with the CPU and the main interfaces
The connector layout and the installed option board depend on the product
configuration.
C
Expansion layer Depending on the product configuration this optional layer can add addition-
al storage devices or a PCIe Card.
3 Hardware
3-3
NY-series Industrial Box PC Hardware User's Manual (W553)
3-1 Layers and Components
