3-2

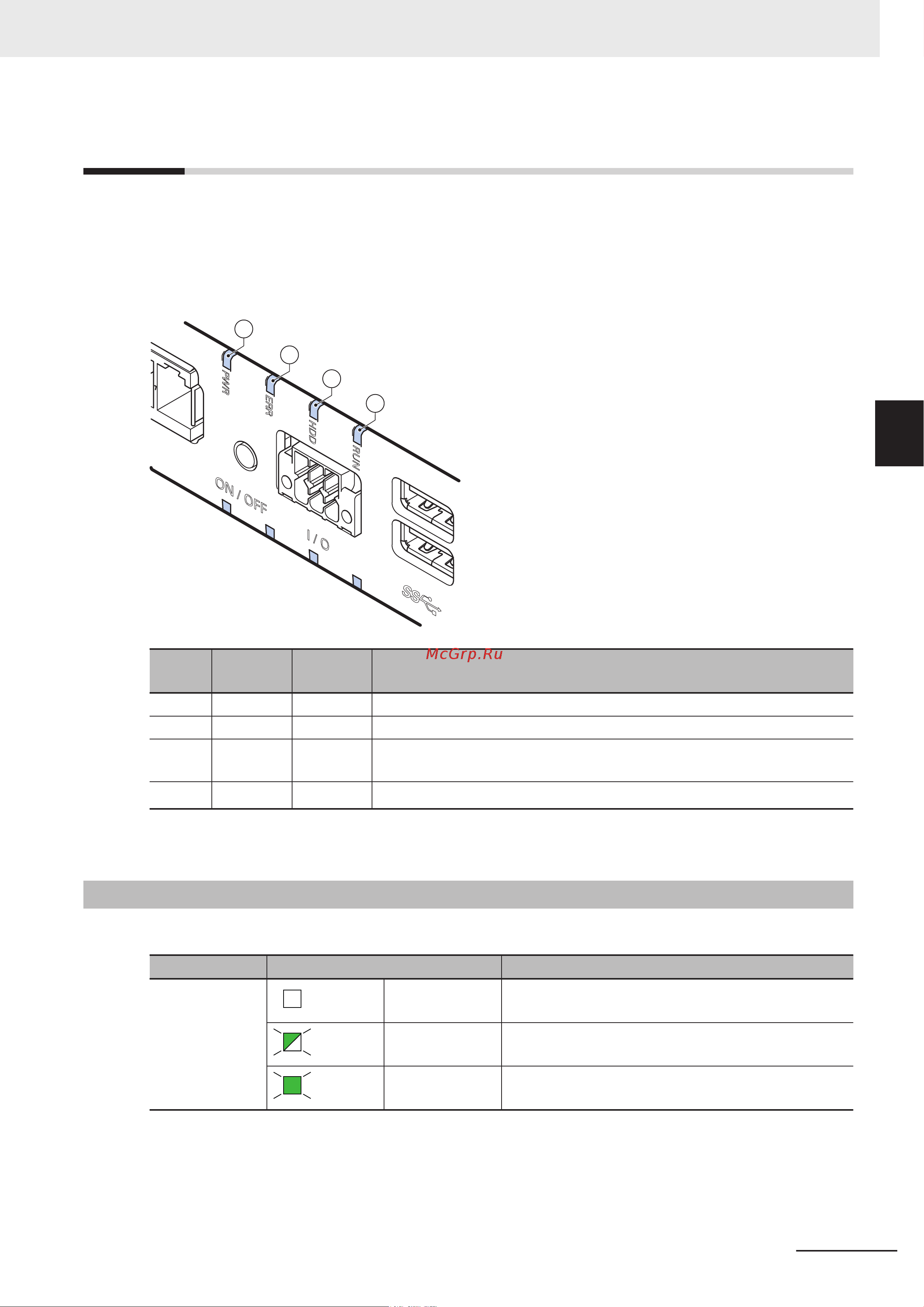

LED Indicators
The Industrial Box PC has LED indicators located at the base layer. These LED indicators provide the
current operating status of the Box PC.
Models with an Expansion layer have a second row with four LED indicators that have the same func-
tion.
The following LED indicators are available:
A
B
C
D
Item
LED
Indicator
Name Description
A PWR Power Indicates the operating mode of the Industrial Box PC.
B ERR Error Indicates the presence and type of an error.
C HDD Hard Disk
Drive
Indicates activity of the storage device..
D RUN Run
Indicates the status of a user-defined function.
*1
*1.
Not for products NY512-A£££.
Refer to 1-4 Product Configuration Box PC on page 1-5 for configuration details.
3-2-1
PWR LED Indicator
The Power LED (PWR) indicates the operating mode of the Box PC.
Color Status Meaning
Green Not lit There is no power supplied or the Box PC is OFF.
Blinking Power is currently supplied and the Box PC is in
stand-by mode.
Lit Power is currently supplied and the Box PC is turned
ON.
3 Hardware
3-7
NY-series Industrial Box PC Hardware User's Manual (W553)
3-2 LED Indicators
3
3-2-1 PWR LED Indicator
