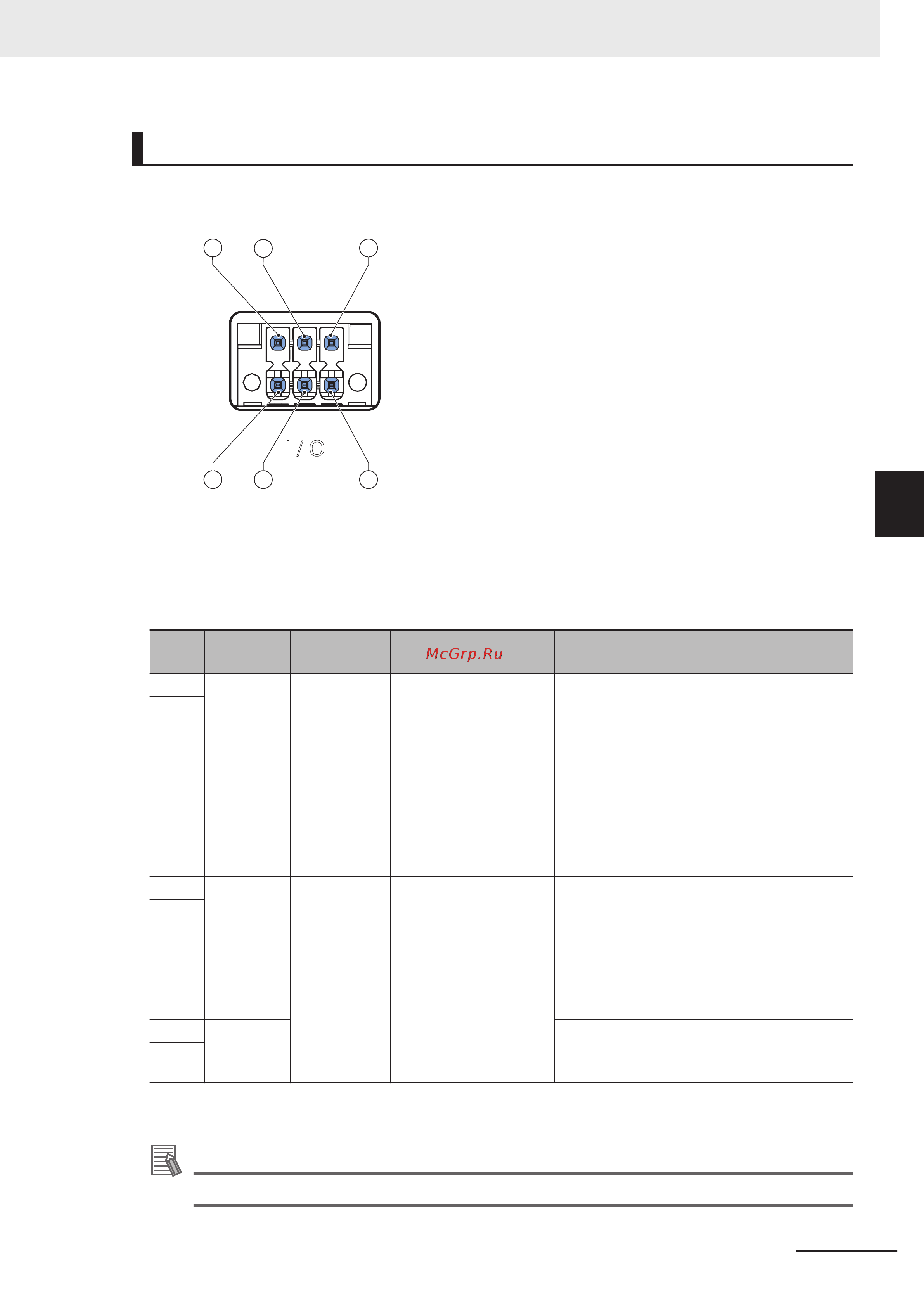

I/O Connector Pin Details
The pin details of the I/O connector.
2 4
5
6
1
3
The pin layout represents the I/O connector on the Box PC.
The I/O signals connected must be powered from a power supply which conforms to the SELV stand-
ards.
Pin details of the I/O Connector:
Pin
Descrip-
tion
Type
Electrical
Specifications
Details
1 Power Sta-
tus Output
*1
Contact out-
put
• SPST-NO contact
configuration
• 24 VDC at 2A switch-
ing capacity (resistive
load)
• Operation lifetime
150,000 cycles at 2A
max.
• Connect to SELV
• Open: The Power Status Output is OFF
when the
Box PC is OFF or has been dis-
connected from the power supply.
• Closed: The Power Status Output is ON
when the Box PC has shutdown success-
fully and is connected to the power supply
and has not been disconnected from that
power supply since power OFF.
Refer to I/O Connector Power Status Output
Details on page 4-22 for details.
2
3 Power
ON/OFF In-
put
*2
Isolated tran-
sistor input
(sinking or
sourcing)
• ON: 8.8 VDC min./5
mA min.
• OFF: 1.1 VDC
max./0.5 mA max.
• Connect to SELV
If the signal changes from inactive to active,
the Box PC will perform one of the following
operations.
• When powered ON, the Box PC will shut
down and power OFF.
• When powered OFF
, the Box PC will power
ON.
4
5 UPS Mode
Input
This input is provided to allow monitoring the
state of an external UPS unit that provides a
compatible power state output signal.
6
*1. Refer to I/O Connector Power Status Output Details on page 4-22 for Power Status Output details.
*2. Refer to
6-1 Power ON on page 6-2 and 6-2 Power OFF on page 6-3 for Power ON/OFF Input details.
Additional Information
Refer to 5-4-4 Wire the I/O Connector on page
5-39 for I/O connector wiring details.
4 Specifications
4-21
NY-series Industrial Box PC Hardware User's Manual (W553)
4-2 Connector Specifications
4
4-2-2 I/O Connector Specifications
