3-10-8
NY Monitor Link Cables
Depending on the installation situation specific cables are recommended for an NY Monitor Link
(NYML).
Refer to:
• NYML Recommendations up to 20 m on page 3-
27 for details.
• NYML Recommendations up to 100 m on page 3-28 for details.
• NYML Recommendations for Custom Cables on page 3-29
for details.

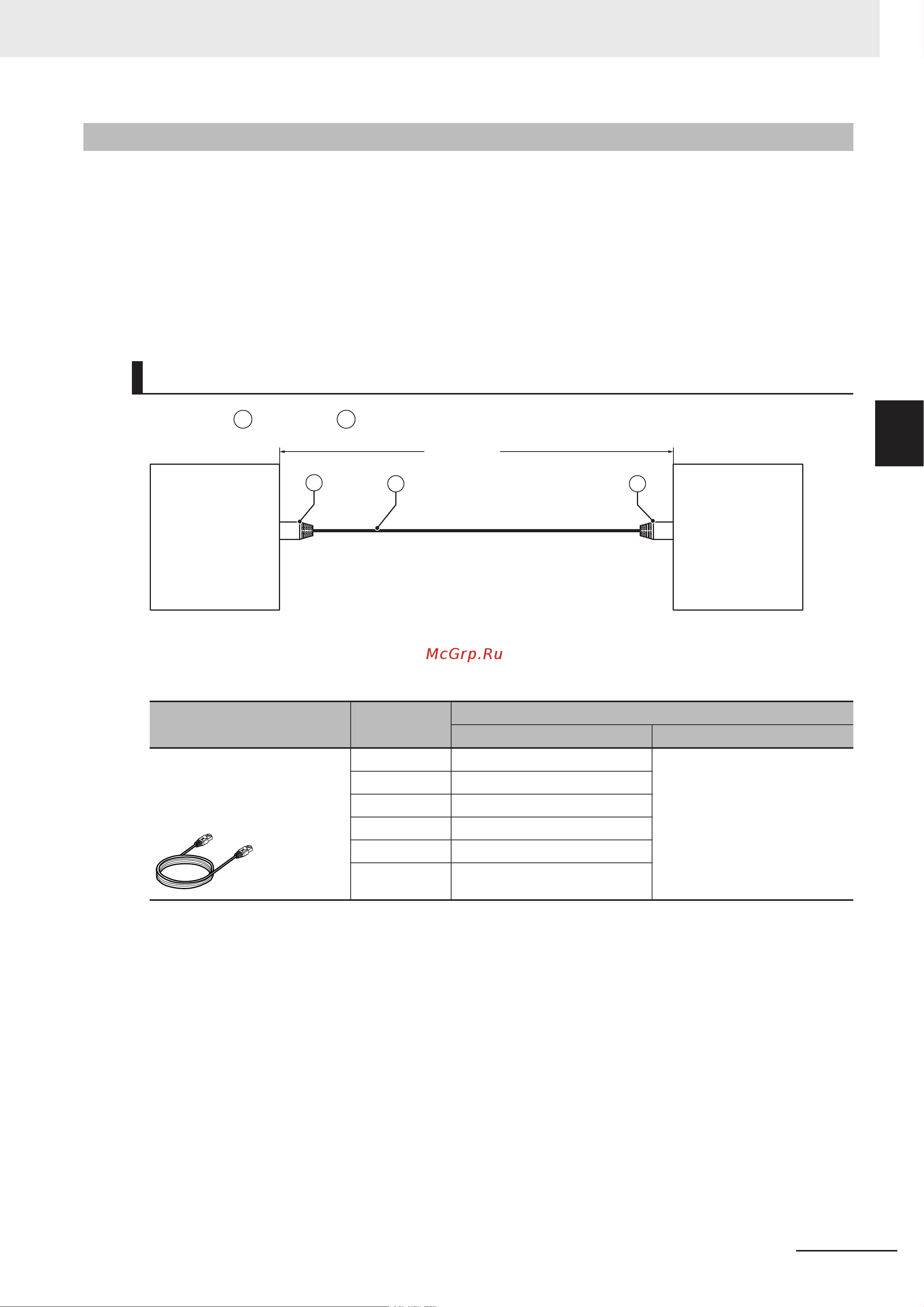

NYML Recommendations up to 20 m
Connectors
A
and cables
B
with different lengths can be used.
Max 20 m
PC
M
onit
or
A
B
A
The following table lists the recommended cables and connectors for the NY Monitor Link cable appli-
cations up to 20 m.
Item Length
Specifications
ID Details
Patch Cable with straight con-
nectors
Manufacturer: W
eidmuller
Color: Blue
1.5 m IE-C6FP8LB0015M40M40-B Industrial Ethernet cable:
RJ45 IP 20, RJ45 IP 20,
Cat.6A /Class EA (ISO/IEC
1
1801 2010), LSZH, UL,
Molded Connector
. Qualified
for 10Gb/s, S/FTP
3 m IE-C6FP8LB0030M40M40-B
5 m IE-C6FP8LB0050M40M40-B
10 m
IE-C6FP8LB0100M40M40-B
15 m IE-C6FP8LB0150M40M40-B
20 m IE-C6FP8LB0200M40M40-B
NY Monitor Link Cable Clearance
Ensure to prevent excessive strain on the connector and cable assembly.
The minimum clearance from the connector entry consists of the sum of:
• Connector length
• Maximum bending radius of the cable in a fixed position
3 Hardware
3-27
NY-series Industrial Box PC Hardware User's Manual (W553)
3-10 Optional Hardware
3
3-10-8 NY Monitor Link Cables
