Pin Signal Name Function
23 TMDS clock+ Digital clock+
24 TMDS clock− Digital clock−
C1 Analog red
Analog red
*1
C2 Analog green
Analog green
*1
C3 Analog blue
Analog blue
*1
C4 Analog horizontal sync
Analog horizontal sync
*1
C5 0 VDC
0 VDC
*1
*1.
Only for models NY£17, NY£1E, NY£27 and NY5.
Refer to 1-4 Product Configuration Box PC on page 1-5 for details.
A-2-2

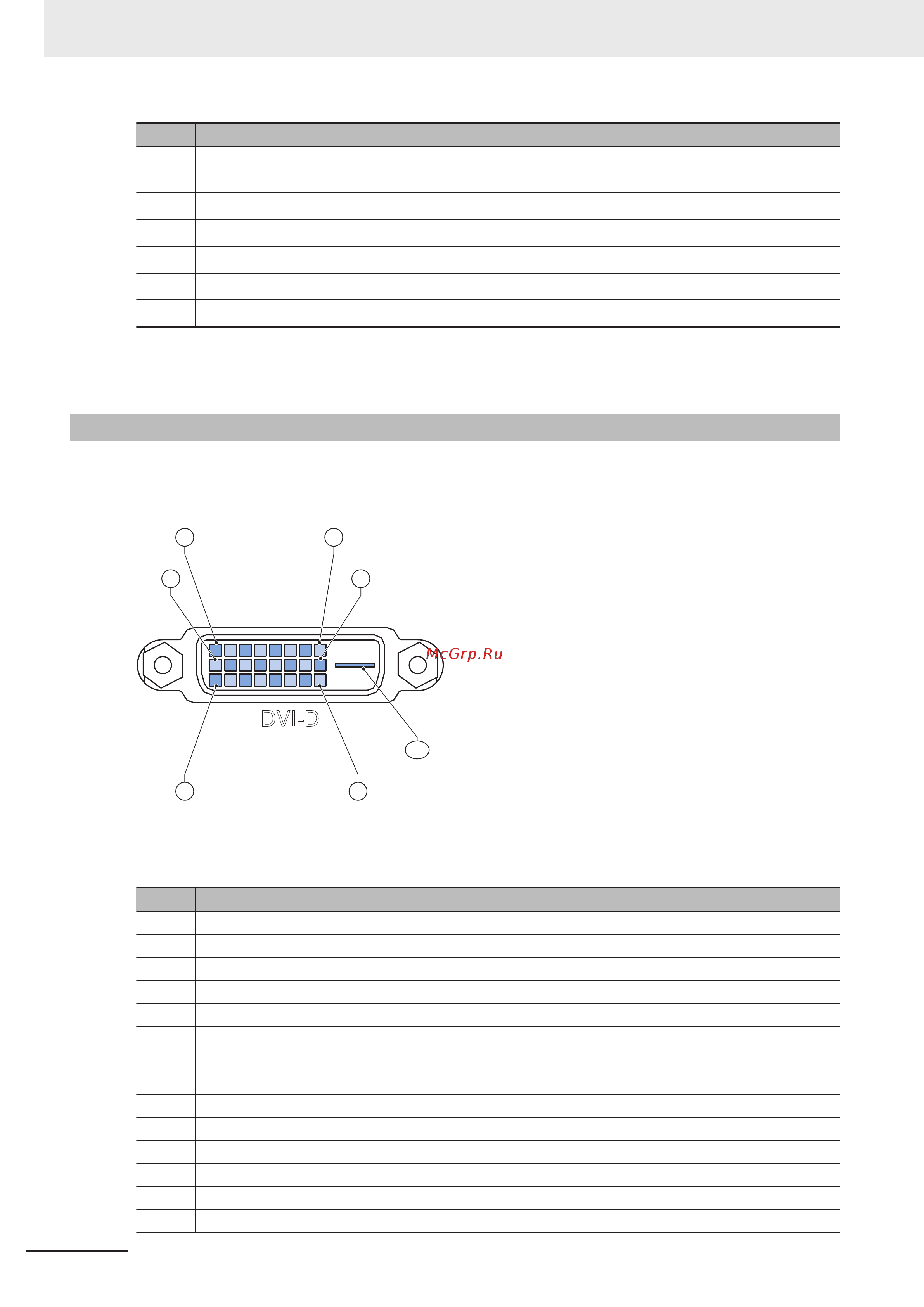

DVI-D Connector Pin Details
Pin details of the DVI-D connector.
1 8
9 16
17 24
C5
The pin layout represents the DVI connector on the Industrial Box PC.
Pin numbers increase from left to right for every row.
Pin Signal Name Function
1 TMDS data 2− Digital red− (link 1)
2 TMDS data 2+ Digital red+ (link 1)
3 0 VDC TMDS data 2/4 shield
4 Not connected ---
5 Not connected ---
6 DDC clock DDC clock
7 DDC data DDC data
8 Not connected ---
9 TMDS data 1− Digital green− (link 1)
10 TMDS data 1+ Digital green+ (link 1)
11 0 VDC TMDS data 1/3 shield
12 Not connected ---
13 Not connected ---
14 +5 V Power for monitor DDC interface
Appendices
A-68
NY-series Industrial Box PC Hardware User's Manual (W553)
