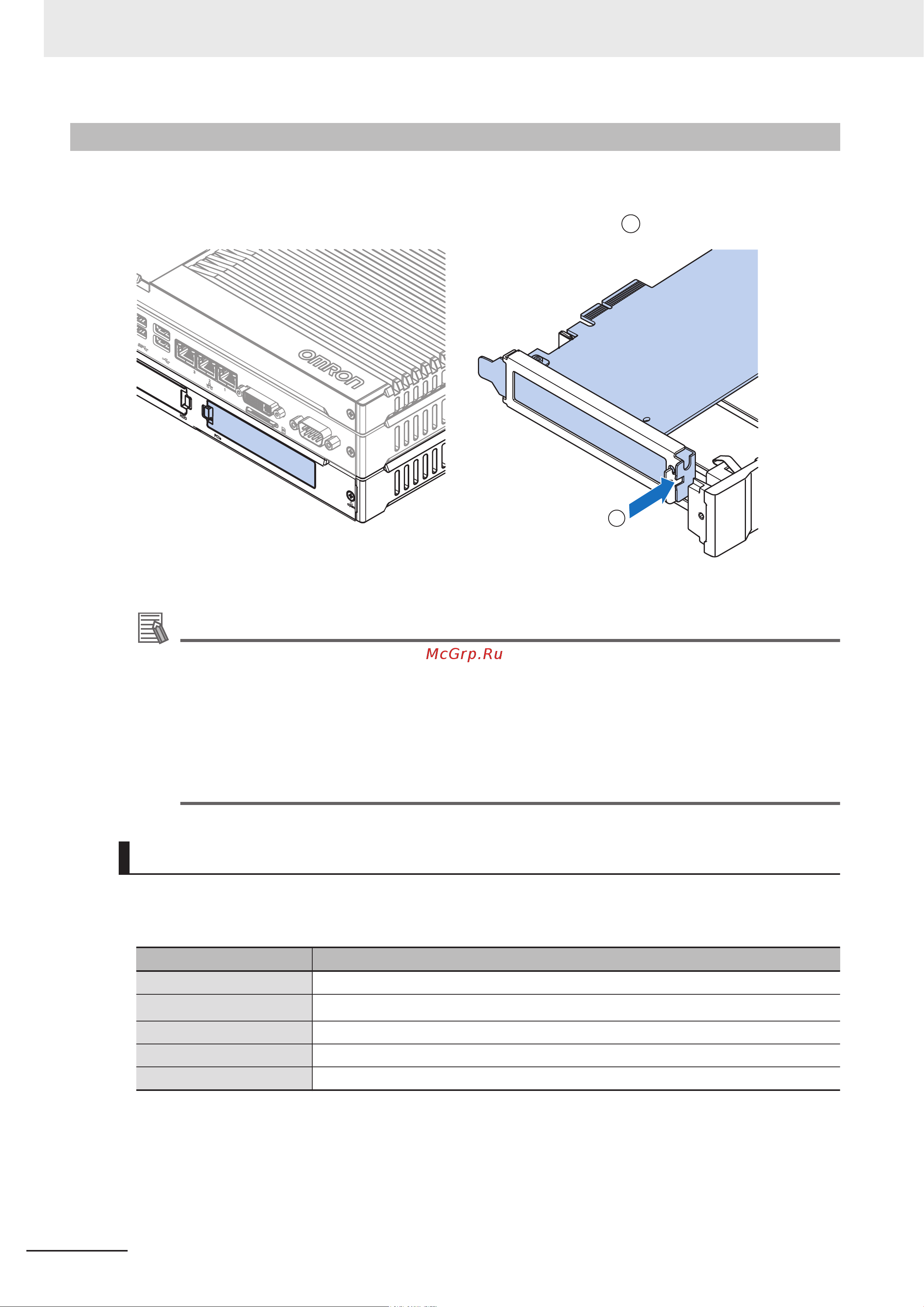

4-1-8
PCIe Card Specifications
The PCI Express (PCIe) Card slot of the Industrial Box PC accepts various cards for specific hardware
needs.
Ensure that, according to the PCIe hardware specifications, the indent
A
is present in the PCIe Card.
A
The PCIe Card specifications depend on the CPU and thus on the product configuration.
Additional Information
• Refer to 1-4 Product Configuration Box PC on page 1-5 for product configuration details.
• Refer to
NY
£
1C-
£
1 PCIe Card Slot Specifications on page 4-14 for details.
• Refer to NY
£
1E-
£
1, NY
£
1E-
£
2 PCIe Card Slot Specifications on page 4-15 for details.
• Refer to NY
£
17-
£
1 PCIe Card Slot Specifications on page 4-15 for details.
• Refer to NY
£
2C-
£
1 PCIe Card Slot Specifications on page 4-15 for details.
• Refer to NY
£
25-
£
1 PCIe Card Slot Specifications on page 4-16 for details.
• Refer to NY
£
27-
£
1, NY
£
27-
£
2 PCIe Card Slot Specifications on page 4-16 for details.
• Refer to NY
£
35-
£
1, NY
£
35-
£
2 PCIe Card Slot Specifications on page 4-16 for details.
NY£1C-£1 PCIe Card Slot Specifications
The table below provides PCIe Card slot details for Industrial Box PCs with an Intel
®
Celeron
®
2980U
CPU.
Item Specifications
Configuration X1 (1 lane) up to Gen 2
Card height
Standard height cards, 4.20 inches (106.7 mm)
*1
Card length Half-length cards, 6.6 inches (167.65 mm)
Power consumption 5 W max.
Maximum current 1.5 A with 3.3 VDC, 0.5 A with 12 VDC
*1. Low profile cards, 2.536 inches (64.4 mm) are not supported.
4 Specifications
4-14
NY-series Industrial Box PC Hardware User's Manual (W553)
