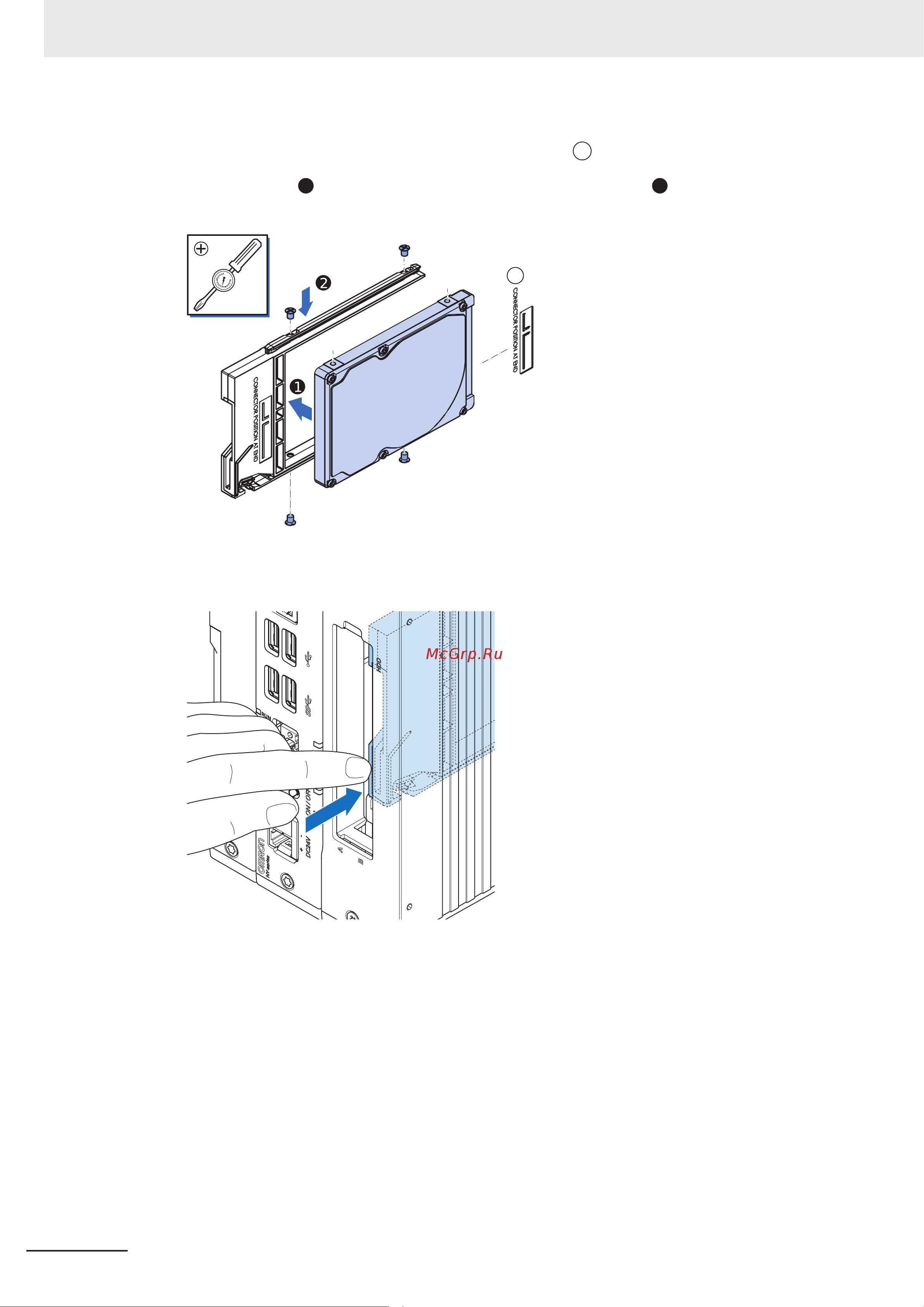

7 Align the connectors of the replacement drive as shown
A
on the bracket. Then insert the re-
placement drive
1
in the bracket and insert the 4 mounting screws
2
. Tighten these screws
with a torque of 0.35 N·m.
A
0 15
8 Insert the bracket with the replacement drive into the correct bay of the Box PC.
Ensure the bracket is completely in the Box PC with an extra push.
The drive bracket will lock into place when it is fully inserted.
7 Maintenance
7-14
NY-series Industrial Box PC Hardware User's Manual (W553)
